HIK Vision India Kandivali East, Mumbai, Maharashtra

14" Sony Interline Transfer Super HAD-II CCD 30x optical zoom 540TVL resolution OSD menu 3D DNR Electronic image stabilization

H.264 (MPEG-4Part 10) real-time video compression OggVorbis real-time audio compression Up to real-time 4CIF display resolution PCI 2.2 standard Support Windows 2000XP2003Vista and Linux operating system Provide full SDK and demo source code Support variable bit rate and frame rate Motion detection Support OSD, LOGO, and MASK overlay

1.3 Megapixel high-performance CMOS Analog HD output, up to 720P resolution 2.8 – 12mm, Auto IRIS, vari-focal lens True DayNight DNR, Smart IR Up to 40m IR distance IP66 weatherproof, Vandal Proof

Full HD720P video output True day night EXIR technology, up to 20m IR distance IP66 weatherproof

11.9� HD CMOS sensor Optical Defog 2MP(1920*1080) Full HD 36X Optical Zoom Ultra-low illumination

±0.1° preset accuracy 540°s pan preset speed and 400°s tilt preset speed 360° endless pan range and -5°-185° tilt range H.264 video codec Optical zoom: 36X.Digital zoom: 16x Weather Proof: IP66 standard(outdoor)

Up to 12 Megapixels resolution recording Video outputs at up to 4K (4096*2160) resolution Supports decoding up to 20 channels at 1080P resolution Up to 128256 IP cameras can be connected with 512M768M incoming bandwidth Up to 24 SATA interfaces Supports H.264+,H.264,MPEG4,H.265,MJPEG video format Support redundant power supply to improve the system stability Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable Support various VCA detection alarm and VCA search

11.7” Progressive Scan CMOS 4096 × 2160 @30 fps frame rate Slow shutter DWDR 3D DNR AudioAlarm IO Support 128G on-board storage AC24V

LED backlit technology with full HD 1920×1080 Wide view angle: 178°(H)178°(V) Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction, Skin correction. Multiply inputs: HDMI, VGA, DVI, USB Image freeze High reliable components for 7×24 working Support RS232 control through RJ45 connector IR control with remote

Dimension: Φ55*75 Weight: 237g Focal Length: 3.8-16mm Mount: CS-Mount F Number: F1.5-C Max. Image Format: Φ9mm（11.8"） M.O.D: 0.1m Field of View: 11.8": D:123.9°～33.5° H:103.1°～28.0° V:68.5°～18.7° 11.2": D:115.6°～31.3° H:100.7°～27.3° V:61.3°～15.4°

Material : Aluminium Alloy

Shape : Round

Finishing : Polished

Feature : High Precision, Robustness, Fine Finished

Mount : Adjustable Lens Mount

Adjustment Range : 15-30 Mm

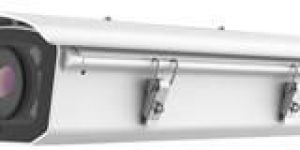

Adopt side-cover design for convenient installation and maintenance. Adopt stainless steel dual-hasp design, water-proof up to IP 67 and IK10 Partial glass silk print to protect imaging area Built-in automatic temperature control system to ensure stable running. IR illuminator Housing Built in IR sensor IR distance up to 250 meter

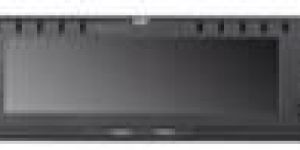

H.264 video compression Third-party network cameras supported Up to 5 Megapixels resolution recording HDMI and VGA output at up to 1920×1080P resolution 4816-ch synchronous playback HDD quota and group management

Camera Signal System: PALNTSC Effective Pixels: 1280 (H) × 960 (V) Min. Illumination: 0.1 Lux @ (F1.2, AGC ON)0.3 Lux @ (F2.3, AGC ON) Shutter Time: 125(130) s to 110,000 s Lens: 3.6 mm @ F2.3 (2.8mm,6 mm, optional)Angle of view: 73.1° (3.6 mm) Lens Mount: M12 Adjustment Range: Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° Day& Night: IR cut filter with auto switch Horizontal Resolution: 720TVL Synchronization: Internal Synchronization Video Output: 1Vp-p Composite Output (75ΩBNC) SN Ratio: More than 62 dB

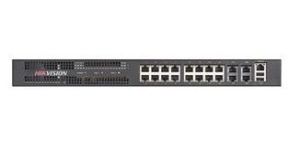

DS-6901UDI Provides HDMI, VGA, and BNC output interfaces DS-690408101216UDI provide HDMI (adaptable to DVI-D) and BNC output interfaces Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for even interface) H.265, H.264 and MPEG4 video compression DS-6901UDI supports 2-ch@12MP, 4-ch@8MP, 6-ch@5MP, 10-ch@3MP, 16-ch@1080p simultaneous decoding DS-6904UDI supports 4-ch@12MP, 8-ch@8MP, 12-ch@5MP, 20-ch@3MP, 32-ch@1080p simultaneous decoding DS-6908UDI supports 8-ch@12MP, 16-ch@8MP, 24-ch@5MP, 40-ch@3MP, 64-ch@1080p simultaneous decoding DS-6910UDI supports 10-ch@12MP, 20-ch@8MP, 30-ch@5MP, 50-ch@3MP, 80-ch@1080p simultaneous decoding DS-6912UDI supports 12-ch@12MP, 24-ch@8MP, 36-ch@5MP, 60-ch@3MP, 96-ch@1080p simultaneous decoding DS-6916UDI supports 16-ch@12MP, 32-ch@8MP, 48-ch@5MP, 80-ch@3MP, 128-ch@1080p simultaneous decoding

High performance Sony CCD Low illumination DayNight auto switch 3-axis adjustment Compact design

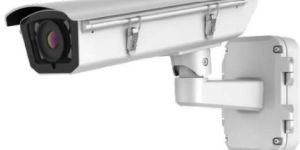

Built-in automatic temperature control fan to ensure stable running. Up to IP66 protection level, suitable for indoor and outdoor environment With junction Box, convenient for wiring. All cable in the bracket, anti-cutting Vandalproof

Support 4-ch analog HD video input, support dual-stream; Equipped with LEDLCD keyboard; Support 1-ch VGA output; Support 1-ch audio output, 1-ch audio input, 1-ch two-way audio, 1-ch loudspeaker; Support 8 zones input; Support 1-ch local alarm output, 9-ch expandable; Support scheduled armingdisarming function; Support tamper-proof alarm and movement-proof alarm function of alarm host,tamper-proof alarm function of detector; Support message alarm and remote armingdisarming function(DS-19S08-04FKxGx support message function); Support 32 remote controllers; Support 1-ch siren (DC12V) output function; Support playback function, the duration of playback can be configured; Support live view linked with sensor-alarm for recheck; Support capture linked with sensor-alarm for recheck; Support video motion detection, video loss analyzing function; Support linked alarm output of sensor; Support WD14CIFCIFQCIF resolution, video parameters can be configured; Built -in 2.5" 500G HDD, support local video storage; Support 2 transmission modes: network transmission, 3G4G transmission (DS-19S08-04FKxGx support 3G4G transmission); Support 2 stand-alone alarm centers via Ethernet; Support 2 stand-alone 3G4G alarm centers (DS-19S08-04FKxGx support 3G4G alarm centers); Support 8 external alarm keyboards; Support PTZ controlling; Support external storage battery for power supply; Support remote upgrade via network;

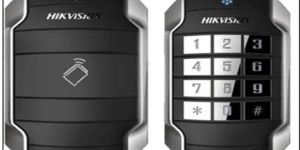

The card reader is designed with slim and exquisite appearance The card reader is equipped with 32-bit high-speed processor Support RS485 and Wiegand communication, Wiegand interface supports w26 and w34 Support online upgrade. Card reader can restore to pre-upgrade status if the upgrading is failed Support tamper-proof alarm function The card reader has watchdog design function to check the abnormal status of device and operate the repair process to ensure the long-time running of device Support dust-proof and water-proof design Support Mifare Card recognition, can read the number and content of Mifare Card;(DS-K1104MMK) Support CPU Card recognition, can read the serial number and content of CPU Card.It adopts DES, 3DES encryption algorithm and supports P-SAM Card encryption mechanism to ensure the security of devices. (DS-K1104CCK)

Integration with Access Control, POS, Parking Lot and other systems Intuitive GUI Free DDNS and customizable service
