wireless repeater (wireless range extender) takes an existing signal from a wireless transmitter andre-broadcasts it to create a second network. When two or more hosts have to be connected with one another and distance is too long for a direct connection to be established, a wireless repeater is used to bridge the gap. Wireless repeaters are commonly used to improve signal range and strength within plants and offices. Non-Intrusive calibration with MENU, ADD and SUB Explosion and Weather Proof enclosure. Rapid response and clearing time. This wireless transmitter works along with wireless repeater. In this type of wireless transmitter repeater arrangement, the cap of the sensor is perforated at top of the transmitter, which allows the surrounding atmospheric air to get diffused with the sensor. Thus if any gas is present in the atmosphere, it will cause variation in the sensor output indicating the presence of the gas. The sensor output is then amplified by theelectronic circuitry and digitally displayed on the transmitter’s LCD & transmitted in air through the wireless module transmitter repeater, which is then received by wireless module receiver. Depending upon the level of gas present, which also displays on receiver LCD, an alarm is triggered at corresponding levels.

The TL-205 is a rechargeable, hand-held unit that tests the response of the detectors with a highly accurate fire simulation that utilizes authentic ultraviolet and infrared radiation sources that can be used for periodic inspection of UV, single frequency IR and UV/IR flame detection systems. It produces UV and IR radiation to verify the response of the flame detection system without the need for an open flame and is suitable for use in hazardous (classified) areas. The test performed is identical to an Ultraviolet detector, an Ultraviolet/Infrared detector, or a Multi-spectral Infrared type of flame detector. 15 kinds of electrical applications Combined Heat and power plant Thermal power plant Nuclear power plants LNG Base, airports Oil and gas, oil refining, heavy industries Iron manufacture, steel, shipbuilding Automotive, military Chemical and petrochemical

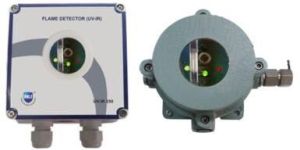

The HNL Flame Detector is a compact and highly responsive Flame / Fire Detector. The Unit incorporates an extremely sensitive sensing circuit that responds to high energy sources in a bandwidth of 185 – 260 nm with optimum spectral sensitivity centred around 200 nm.Thus HNL Flame Detector is the most effective in early detection of a fire before they can possibly cause damage. In contrast, other types of detectors operate at a disadvantage. Smoke detectors do not operate until the fire has developed into a sufficient size to accelerate smoke along with strata of hot air rising to the detector.It is particularly suitable for use in outdoor applications because it is not affected by wind or rain. Various modelsto detect & control the presence or absence of flame are available.

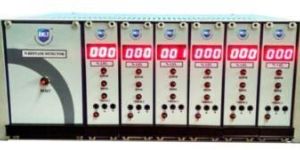

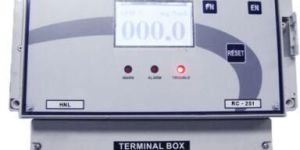

The RC-200, a NEMA 1 rack / panel mount, modular plug-in design including modular power supply, 2 to 8 channel / 19” rack capacity, discrete analog 4 – 20 mA outputs, discrete or zoned alarm relays (2 alarms per fault), status and parameters accessible via RS 485 (optional), compatible with PLC’s, SCADA and DC’s, compatible with all types of transmitters, alarm disable, alarm silence function. Rack / Panel mount, easy to install Multi-point, Multi-gas receiver controller system Standard output of 4-20mA per channel, Relay Adjustable FAULT, LOW, and HIGH Visual alarms Rackmount, Plug-in design, up to 8 transmitter inputs per rack Red LED – 3 digit, 7 segments for gas level Optional NEMA 1 housing Rack/panel enclosure

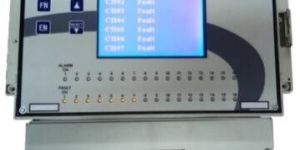

Single and up to 32 input models Single or multi-gas configuration IP 65 housing Self-integrity check Simultaneous display of channel number, concentration & unit of measurement Low & high alarm indication for each channel Common relay output for alarm & fault DC output to power transmitters Selectable 0.1/1° resolution Models with data logger & RS 232 / RS 485 communications View all channel data & alarm status Log real-time data Create exportable data files

Quick & easy single point installation with no moving parts Low capital & maintenance costs High sensitivity Can be calibrated to show emission levels in mg/m3 Adjustable range from 1 – 1,000 mg/m3 Minimum detection limit less than 1 mg/m3

Compact, Light Weight Intelligent Unit with Application Specific Sensors Sensitiveto PPB / PPM or % age levels of Gases & Vapors. Complete Automatic Operation. LCD Display Continuous Diffusion / Suction Sampling Confidence Beep every 15 seconds. Complete self Integrity check on start Automatic Calibration. Display of WARN & ALARM Low battery Alarm Intrinsically Safe Automatic Sampling & Analysis for specified periods at preset intervals – Completely Unattended.

Particle pollution (also called particulate matter or PM) is the term for a mixture of solid particles and liquid droplets found in the air. Cities and workplaces are increasingly becoming pollutant due to rampant construction and vehicular movement. High levels of dust, especially PM2.5, in outdoor air prompt residents to keep windows shut in an attempt to prevent air pollutants from entering houses. Instances of sick building syndrome are increasingly being reported from our cities particularly in schools, colleges, and large work zones. Elements coming into your home from the outside can be dangerous to your health. HNL is introducing an indigenous instrument for measuring air quality, with a capability to simultaneously monitor and record concentrations of PM2.5, PM10. The fine dust PM2.5 and PM10 will be determined by a build in air pollution monitor. A built-in sequential sampler is able to collect fine dust PM2.5 or PM10 for gravimetric evaluation. Its data logging and computer interface features can be used for further detailed analysis. A built-in data-logger reports Live Data on a graphics LCD besides recording values in SD card memory. Typical applications include Industrial Hygiene, Facility Management, Checking Ambient Air Quality, and Surveys in Clinics, Hospitals, and Schools.

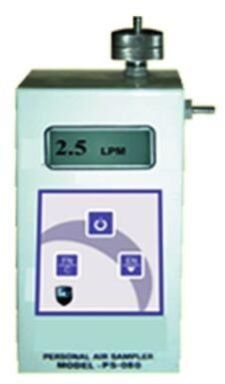

Personal air sampler with an appropriate sample head is designed to collect virtually any industrial contaminant including particulate samples like dust, fibres, fumes and mists as well as vapours and gases where a high flow rate is permitted. Air containing contaminants is drawn through the sampling head at an optimum rate. The suction is provided by a pump driven by DC Motor with dry or Rechargeable batteries. The flow rate is variable by the user to suit the sampling techniques. Rotary pump with corrosion-resistant vetted parts. Automatic Constant flow control. Multi-flow sampling capability. Pulsation free flow. Built-in flow indicator optional. Ultra-quiet operation. High timing accuracy of ± 0.05%. Electronic flow adjuster. Low battery alarm.

Single & Double Pass based Optical Instruments designed for monitoring Dust and Particulate concentrations (mg/m3) in the exhaust gas of industrial combustion or Air filtration processes, offer an ideal solution to your Emissions monitoring or Process control requirement. These continuous particulate monitors use either the standard obscuration opacity technique with zero and span checking or the innovative Dynamic Detection Principle technique which eliminates the need for zero and span checking through an immunity to drift with dirty optics.

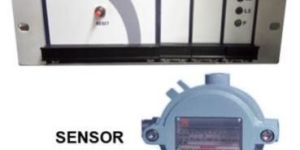

Each module/channel is a complete instrument in itself with its visual alarms & relay outputs, except for regulated power supply which is provided by the master power supply board. It has the corresponding detector of application specific type. The detector is mounted at the location of interest and senses the gas if any through diffusion. It responds to vapor or gas, toxic, explosive or smoke, with the proportionate change in electrical characteristics. This change is electronically amplified and used to operate the electronic switching circuits & relay contacts. Isolated relays with NO/NC contacts are provided for signaling alarm and malfunction conditions. Relay contacts could be typically used to actuate remote alarms, increase ventilation, shut off the gas supply, or shut down a process. A suction based sampling system being employed, the sensor’s detectors are of very sturdy construction, with weatherproof or ex-proof housings and are designed to serve for several years under normal operating conditions. When a sensor detects a concentration of gas or vapor above the first preset level, it actuates an ‘ON’ alarm LED. Further increase in concentration, other alarm LEDs will be progressively actuated. With this arrangement, the user can readily distinguish the area harboring a gas concentration and its levels.

DP-101 is a Portable Moisture & Temperature meter or a sensor that provides an excellent reliable, economical and Time-saving solution for measurement of moisture n the field. It measures Moisture-in-oil in terms of the Water Activity (aw) and Temperature. The same gets converted into PPM units as in Transformer applications, PPM-unit is traditionally used.

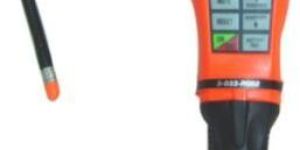

Microprocessor control Advanced digital signal processing Tricolor visual LED display and audible signal for progressive leak size indication Seven levels of sensitivity Tactile keypad controls Real-time SF6 sensitivity adjustment Battery test function Battery voltage indication True mechanical pumping provides positive airflow through sensing tip Mute feature included Cordless and portable Comfortable one hand operation One year warranty

Portable, Rugged, Convenient and Economical Self Calibration & Self Diagnostic Displays Oxygen Content, Temperature Differential & Combustion efficiency instantaneously Long Life Oxygen Sensor-specific for the combustion process. No adverse effect of acidic gases like CO, SO2, NOx etc. Sturdy Chromel Alumel Thermocouple suitable for up to 1000 °C, 600 °C Easy to learn and easy to use: Powerful microcontroller provides acoustic & visual messages for easy use

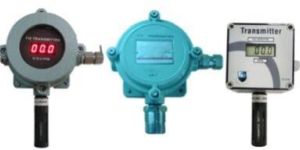

Field, wall mount universal transmitter. Available in Weather-proof, Blind and Explosion-proof housing. Standard 4-20 mA transmission, compact electronic module. 2 wire or 3 wire technology. Suitable in the hazardous area.

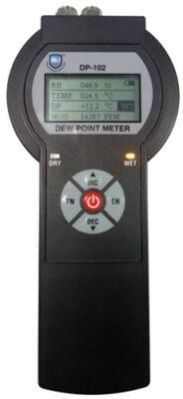

HNL’s Model DP-102 Dew Point Meter, a portable instrument is designed to measure the performance of compressed air and process drying systems. It is ideal for moisture monitoring in commercial and industrial applications. Periodic monitoring of industrial Air systems results in a reduced maintenance cost & downtime caused by condensate, the leading cause of corrosion in pneumatic systems. Handy and Light Weight Instant Direct dew point reading Digital Display Over all range – 60° C TO + 30°C Samples Pressure up to 12 kg/m3 Inbuilt Thin film water vapour sensor Optional RS 232 Computer Interface & Data Logger

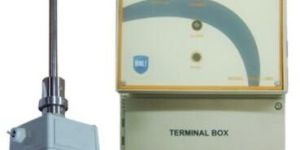

Timely Detection of Broken Bags in a Bag House Proven Technology, Time-Tested and Economically Priced Detector. It measures the Triboelectric effect and determines when particle Emissions exceed the acceptable levels. Field-Proven Tribo-electric Technology ensures reliability. Direct sensing method; Actual Particulate measurement. Adaptable, suitable for virtually all dust collectors. Damping system to prevent False Alarms. Adjustable Sensitivity, Alarm Level and Time Delay to suit wide variety of Powders and Bulk Solids. Robust & Reliable. Easy installation. Low maintenance Wide range of duct sizes from 250 mm to 2 m. Integral Assembly of Sensor and Electronics in Rugged Housing.

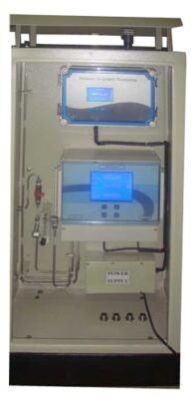

Air Quality stations deliver precise measurement data in real-time for a wide range of air pollutants in a discreet and compact package. Measurable parameters include: ozone (O3); nitrogen dioxide (NO2); nitrogen oxides (NOx): carbon monoxide (CO); carbon dioxide (CO2); sulphur dioxide (SO2); volatile organic compounds (VOC); and particulate matter by mass (PM10 and PM2.5) or size distribution (0.3 to 10 µm, 8-channels) Multiple gas measurements Real-time data acquisition Multipoint factory calibration Zero and Span calibration user facility PC software included Temperature and humidity sensors Remote site operation Particle monitoring PM2.5 PM10, TSP* Pole or wall installation Wind speed and direction sensors* Compact and low weight

This fully microprocessor controlled precision moisture analyzer is a high technology solid state unit designed to operate in rough field service is available as a portable, field mounting rack/panel mounting versions. The high-quality LC-display shows the moisture in ppm. Compatible with most gases/vapors Designed for rough field use High-quality lc-display Direct ppm moisture measurement Fast response Very high sensitivity Zero- / span – calibration Regeneratable sensor
