Hose Pipe Crimping Machine Dealers in Mumbai

(7 products available)
  • Hose Crimping Machine

    Hose Crimping Machine

    Get Price Quote

    • Pressing Capacity (540)3" ID High Pressure Hose (R-13)
    • Stroke of Cylinder30 mm
    • Working Pressure (Max)4000 PSI
    • HP of Electric Motor3HP,3Ph,1440RPM , 440 Volt, 50 Hz
    • Pressing Speed ( + 10%)2 mm / Sec.
    • Crimping Range (Id of Hose)1/4 to 3"
    • Die Length75 mm
    • Die - Holder Length95 mm
    • Number of Dies8 Nos.
    • Bore in ram140 mm
    • Working Height900 mm
    • Length & Width of Machine850 x 800 mm
    • Weight of Machine700 KGS. APPROX
    • SAILENT FEATURES : This is a heavy duty machine, which can crimp high pressure hoses 3" ID Six Spiral Hose. (R13). This machine is a very Compact machine. This can be kept in office or on mezzanine floor, as it does not have any vibration, sound. It does not require foundation, and it could be kept in 3ft X 3ft area. It is very safe and easy in Operation Even an unskilled Operator can operate it. Model AMI - 2 is simplified to minimize any maintenance problem. It has standard 3HP DOL starter, Standard Electrical Switch, and Simple Hydraulic System. It has all standard and reputed make Hydraulic Valves and accessories. Wide range of elbows and fittings can be crimped.
    ...more
  • Hose Crimping Machine

    Hose Crimping Machine

    Get Price Quote

    • Pressing Capacity (540)3" ID High Pressure Hose (R-13)
    • Stroke of Cylinder30 mm
    • Working Pressure (Max)4000 PSI
    • HP of Electric Motor3HP,3Ph,1440RPM , 440 Volt, 50 Hz
    • Pressing Speed ( + 10%)2 mm / Sec.
    • Crimping Range (Id of Hose)1/4 to 3"
    • Die Length75 mm
    • Die - Holder Length95 mm
    • Number of Dies8 Nos.
    • Bore in ram140 mm
    • Working Height900 mm
    • Length & Width of Machine850 x 800 mm
    • Weight of Machine700 KGS. APPROX
    • SAILENT FEATURES : This is a heavy duty machine, which can crimp high pressure hoses 3" ID Six Spiral Hose. (R13). This machine is a very Compact machine. This can be kept in office or on mezzanine floor, as it does not have any vibration, sound. It does not require foundation, and it could be kept in 3ft X 3ft area. It is very safe and easy in Operation Even an unskilled Operator can operate it. Model AMI - 2 is simplified to minimize any maintenance problem. It has standard 3HP DOL starter, Standard Electrical Switch, and Simple Hydraulic System. It has all standard and reputed make Hydraulic Valves and accessories. Wide range of elbows and fittings can be crimped.
    ...more
  • Hose Crimping Machines

    Hose Crimping Machines

    Get Price Quote

    We offer hydraulic hose crimping tool and high precision hydraulic hose crimping machine, with 8 die segments. The position control and depth of the crimp is achieved by the electro-hydraulic control of these machines. The hydraulic hose crimping machine is positioned at a working height of hydraulic reservoir and can easily be operated with the help of control panel.
    ...more
  • Hose Crimping Machine

    Hose Crimping Machine

    Get Price Quote

    We are counted amongst the prominent manufacturers, exporters and suppliers of the Hose Crimping Machine. Our Hose Crimping Machine finds application in various industries, owing to their high performance and reliable results. Features High pressureDurableHeavy duty Size 1/4" to 2" Widely used in Assembly of crimp couplings into hydraulic hoses
    ...more

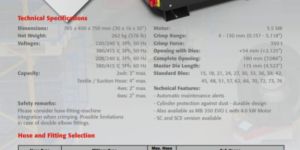

  • Hydraulic Hose Crimping Machines

    Hydraulic Hose Crimping Machines

    1,100,000 / piece

    • MOQ1 piece
    • Country of OriginFRANCE
    • ApplicationCrimping Hydraulic Machines
    • Availability200-300kg
    • Country of Origin380V
    • ConditionNew
    • Automatic GradeSemi Automatic
    • Power3-6kw
    • OperationSemi Automatic
    • Number Of FlowerHydraulic Hose Crimping Machines
    • Brand NameNEOTECH
    • Machine TypeHose Crimping Machine
    • Machine StructureHorizontal
    • Power SourceElectric
    • Driven TypeHydraulic
    ...more
  • Hydraulic Hose Crimping Machine

    Hydraulic Hose Crimping Machine

    Get Price Quote

    Hydraulic Hose Crimping Machine, Dual Bending Press, Channel Cutting Machin
  • Hose Crimping Machine

    Hose Crimping Machine

    Get Price Quote

    We are offering hose crimping machine. hose crimping machine capacity from 3/16"id to 6" id hose. Hydraulic as well as industrial hoses crimping machine. Range starts from inr 2 lakh to inr 12 lakh. Both indian as well as imported branded machine.like uniflex,techmaflex,parker,yokohama.
    ...more
