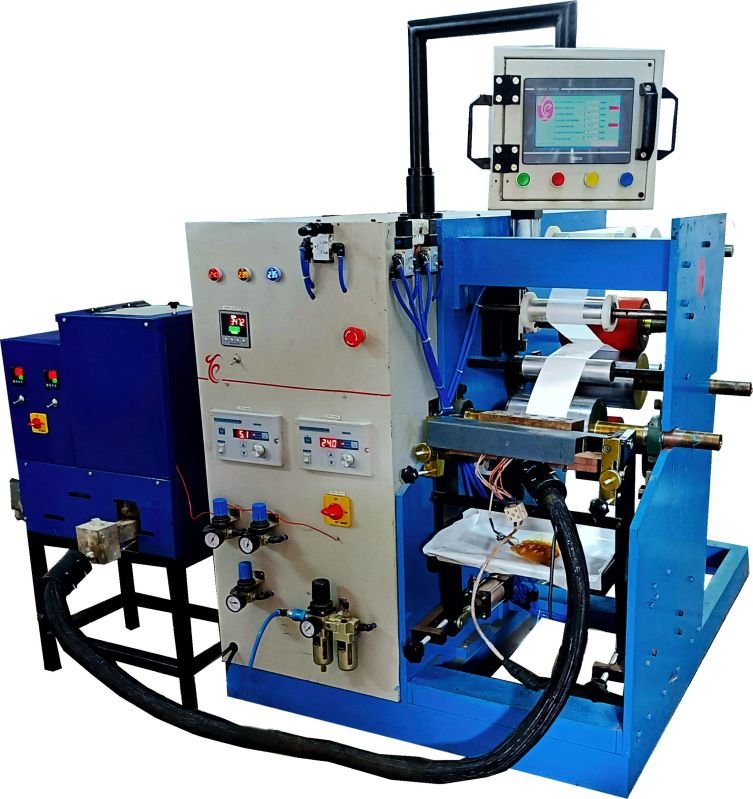

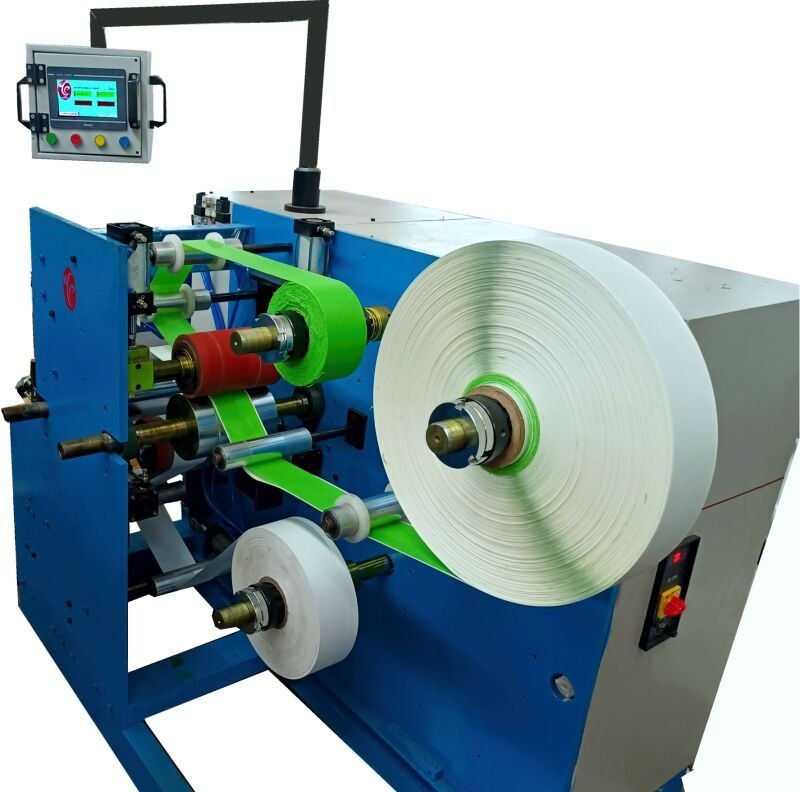

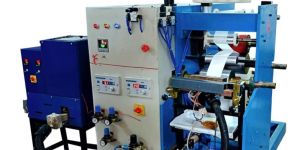

Hot Melt Coater Specification: Model HMC 6
Machine Type: Die Coating
Max. Size of coating : 150mm, GSM: 20 to 80, Max.
Speed of coating : Speed 15 mpm. Till 40mm tape you can run at 15 mpm. @ 40 GSM.
Bigger sizes or Higher GSM will be proportionally less speed. Eg. 100 mm will run at 10 mpm.
Synchronized coating thickness with speed.
Automatic coating with PLC and Touch Screen.
1. Unwind:2 Stations
To hold 150 mm width of
Silicon paper / Tape Cloth rolls.
76 MM core ID.
Powder Brake
2. Coating Station:
Slot Die coating,
Accurate Temp. Control.
All silicon rolls dynamic balanced.
Back up roller Pneumatically operated.
AC Drive for coating roller.
3. Lamination Nip:
Dynamic balanced Metal roll, Silicone roll
Operation & pressure Pneumatic
AC Drive to the nip
4. Rewind:
To hold max. 150 mm width material.
300 mm Dia. Max.
76 MM core ID.
Taper tension-controlled winding.
AC Drive for controlled winding.
5. Permelter:
Tank capacity 5 Lit.
Melting Capacity 5 Lit/hr
Dry tank capacity: 5 Lit.
liquid tank capacity 0.5 Lit.
Pump Capacity 0.5 Lit/Min
Accurate Temp. Control.
6. Hot melt Hose
To Supply 5 Kgs/hr
Length 2 m
Accurate Temp. Control.
DIMENTIONS: 6’X 4’X 4’
Total Electrical Load: Motors 3 HP + Heaters 6 KW
UsageFor producing Microporous Surgical Paper Tape
CertificationCE Certified, ISO 9001:2008 Certified
Voltage415V AC
TypeHot Melt Coating
Frequency50 Hz
PhaseThree Phase
Warranty5 Years
Accuracy+/- 2 GSM
Country of OriginIndia
Corrosion ResistanceYes
Speed100 M/min
Coating SystemPrecision Slot Die
SubstratePaper
Working Width500 mm to 1000 mm
Introducing our Hot Melt Coating Machine – the pinnacle of precision and efficiency. Our HM Coating Machine is specially designed to manufacture Microporous Surgical Tapes & Allied Products.This state-of-the-art machine is designed to transform your production process with its remarkable features:Zero Seepage Coating: Achieve unparalleled results as our machine enables Direct Coating on Microporous Paper, guaranteeing a seepage-free finish that meets the highest quality standards.Auto GSM Dispensing: Say goodbye to manual calculations and adjustments. Our machine's auto GSM dispensing system ensures accuracy and consistency in coating weight, saving you time and resources.Fully Automatic Tension Controls: Experience seamless production with fully automatic tension controls, eliminating fluctuations and ensuring a uniform and flawless coating application.PLC Controlled with HMI: Stay in control at your fingertips. Our machine is equipped with a PLC (Programmable Logic Controller) system and a user-friendly HMI (Human-Machine Interface) for effortless operation and real-time monitoring.Efficient Jumbo Loading: Simplify loading procedures with lifting arms at the unwind station, designed for easy handling of jumbo rolls, reducing downtime and increasing productivity.Slot Die Coating System: We offer Slot Die Coating System with Heating to enable accurate & continous adhesive heating.With our Hot Melt Coating Machine, precision, efficiency, and consistency are no longer aspirations but everyday standards. Elevate your coating operations to new heights and enhance your product quality with this innovative solution.
