The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.

Spiral-wound gaskets comprise a mix of metallic and filler material. Generally, the gasket has a metal wound outwards in a circular spiral (other shapes are possible) with the filler material (generally a flexible graphite) wound in the same manner but starting from the opposing side. This results in alternating layers of filler and metal. The filler material in these gaskets acts as the sealing element, with the metal providing structural support. These gaskets have proven to be reliable in most applications, and allow lower clamping forces than solid gaskets. Size- We can offer dimension from ¼" to 76" thick form 18" to 38" normally Gasket thickness is 0.176" and outer ring thickness is 0.125". We can also offer spiral wound Gasket in round (without outer Ring) oblong, Square, Diamond, and Oval shape Material used for Construction Strip: Stainless Steel 304316L321410310MonelInconelDuplexSuper DuplexAlloy-20. Filler: CAF, Blue Asbestos, Acid Resistance CAF, Teflon, Grafoil, Ceramic etc. Outer Ring: Carbon Steel, Stainless Steel, 304316.

APPLICATIONFor pre- loading bearings in electric motors. The waved washer is installed in the bearing housing and works by maintaining a force on the outer race of the ball bearing, ensuring smooth and quiet running which results in extended life. EPL AND EMO - X PRE - LOAD WAVED WASHER SERIESDevelopment in liaison with bearing and electric motor manufacturers on the optimum loading characteristics required. The basic EPL range has been supplemented with the EMO - X range of waved washers since designers have found in some circumstances even better results can be obtained with more pressure on the outer ring of the bearing. MATERIALS AND FINISHESAll the waved washers are supplied in self colour high carbon spring steel. Other materials can be used on request ( Stainless Steel , Beryllium Copper, etc) .

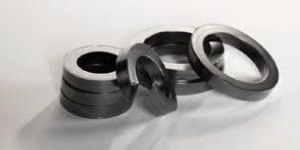

graphite ring is made from high purity homogeneous flexible graphite ribbon, no binders, no fillers.

Flexible and conformable nature Chemical resistant, compatible with most corrosive chemicals Heat and flame resistant Thermal conductive, electrical conductive Low creep relaxation and no aging

Flexible graphite is manufactured from mineral graphite (expandable flake graphite). As its name indicates, flexible graphite is flexible and conformable, an ideal property as a gasket material. Flexible graphite can also be used in many other thermal, electronic or electrochemical applications.

Axially fitted snap rings for shafts with grooves. Mainly used for the assembly of needle bearings, needle cages and sealing rings.

Design is based upon the standard external series but with increased thickness and increased section depth. Heavy duty Circlips are used to withstand shock loads and also to resist conical deformation where, for example, large abutment radii are present. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.

Metal Jacketed Gasket can come in different styles like Double Jacket, Single Jacket or Solid Metal, Soft Compressible filler material can be flexiable graphite, PTFE or Non Asbestos Compressed Sheet The filler material gives the gasket resilience, while the metal jacket protect the filler and resists pressure temprature and corrosion.

Belleville Springs has a complete range of precision disc springs designed to DIN 2092 and manufactured to DIN 2093, designed for critical loading or dynamic applications. The standard protective surface treatment is phosphate and oiled, however superior surface treatments should be considered for disc springs that are to be situated in hostile environments. DIN 2092/2093 disc springs are manufactured to close tolerances and are made from high quality spring steel strip and forgings.

Design is based upon the standard external series but with increased thickness and increased section depth. Heavy duty Circlips are used to withstand shock loads and also to resist conical deformation where, for example, large abutment radii are present.

The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. This range can be supplied stacked on rods for use with applicators and dispensers for rapid installation, thus resulting in sharply reduced assembly costs.

The waved washer is installed in the bearing housing and works by maintaining a force on the outer race of the ball bearing, ensuring smooth and quiet running which results in extended life.

Standard Internal Circlips: To DIN 472 MetricStandard Internal Circlips: N1300 American Specification The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
