J.Rosales PVT LTD Metro Side, Mumbai, Maharashtra

When the use of rectangular expansion joints is necessary, welded corners are usually produced. The highest mechanical stresses are concentrated in the corners and weldings become the weakest links of the whole structure.   Our expansion joints are manufactured in such a way that no welding appears on the corners, only one appears on the longitudinal side.   Kompaflex is the only manufacturer able to master such technique. 1) Multiply construction 2) Easier welding inspection 3) No welding seams in the critical corner area 3) Higher flexibility and higher movements of bellows 3) Longer life of expansion joints

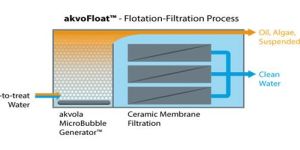

akvola Technologies is a water technology company specialized in the treatment of hard-to-treat industrial wastewater with a focus in the removal of oil (free, dispersed and emulsified) and suspended solids. akvola Technologies sells custom solutions equipped with akvoFloat(tm) - a proprietary flotation-filtration process based on novel ceramic membranes- designed to deal with hard-to-treat waters where conventional technologies fail. akvoFloat(tm) is a separation technology based on a proprietary flotation-filtration process. This process leverages the akvola MicroBubble Generator(tm) and our proprietary automation, resulting in the most energy-efficient design on the market for oil, algae and suspended solids removal in hard-to-treat waters. Technology - efficient flotation-filtration

  Application Suitable for general purpose air & water application in industries & irrigation. Lining Natural & Synthetic Rubber blend. Cover Natural Rubber with good ageing properties. Reinforcement Synthetic yarn with high level of retentivity. Temp. Range 40°C to + 80°C Working Pressure 12 bar Safety Factor 4 times working pressure

Special Hoses available on request: Extra High Pressure Smooth Bore Jacketed hose Assembly Application: The main application of Stainless Steel Corrugated hose assemblies is where synthetic rubber hoses & plastic hoses do not work well i.e. for hot water, steam, condensate, gas, corrosive liquids, acids, ammonia, carbonic & tartaric acids, tannic acid, nitric acid, sulphuric acid, dye stuff, mercury etc. In refineries: To convey oils; gasoline, LPG, benzol, petrol, alcohol, LSHS, liquid gases, steam, and other derivates In Chemical Industry: For the changing, mixing & Conveyerlines In power Plants: For cooling lines etc. In Reactor Installation: For cooling lines etc. In steel Plants: For supply of air and oxygen and for blast furnaces. And everywhere: Where corrosion and vacuum are major problems.         Hose Standard BS 6501 Construction Flexible tubing, single thickwall corrugation, without packing, annular corugation hydraulically formed. Profile Close pitch corrugation Size Range 6 mm upto 350 mm Pressure Range Upto 150 kg/cm³ or higher against specific requirement. The pressure value indicated in the table (technical data) is fuction of the diameter, of the temperature, Of the number of braids, of the material used and of the type of Temperature Upto 800°C Core Material 321/304/316/316L * Monel/Bronze. Braid Material SS 304/SS 321 End Fittings Tig welded, mechanical, soldered, silver brazed. Application Due to their outstanding characteristics, JRE/S.S. 1W & JRE/S.S. 2W hose assemblies are suitable for a wide variety of applications. Wherever flexible pipe is necessary they may be applied.

Flexible tubing, single thickwall corrugation, without packing, annular corugation hydraulically formed.Upto 150 kgcm³ or higher against specific requirement. The pressure value indicated in the table (technical data) is fuction of the diameter, of the temperature, of the number of braids, of the material used and of the type of application.

Flexible tubing, single thickwall corrugation, without packing, annular corugation hydraulically formed. Upto 150 kgcm³ or higher against specific requirement. The pressure value indicated in the table (technical data) is fuction of the diameter, of the temperature, of the number of braids, of the material used and of the type of application. Due to their outstanding characteristics, JRES.S. 1W & JRES.S. 2W hose assemblies are suitable for a wide variety of applications. Wherever flexible pipe is necessary they may be applied

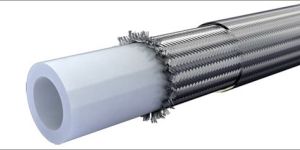

PTFE Smooth tube externally SS 304 braided,Temperature : -73 deg C to 260 deg C,Resistant to : Weather Ageing Diffusion , Transfer of aggressive chemical such as weak acids, chlorine, Acetyl Chloride, Ammonium Nitrate, Oleum and Molten Sulphu

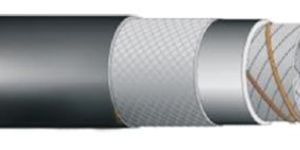

LINING Smooth bore, mandrel built, Nitrile lining to convey all grades of petroleum products, including crude oils and other liquid petroleum products having a maximum aromatics content of 40% (For 100% aromatic content a Viton lining is available). REINFORCEMENT Fabric to reinforced lining, with multiple plies of synthetic cord fabric surrounding embedded high tensile steel wire helix. Hoses are supplied electrically continuous unless specifically requested to be electrically discontinuous. COVER Smooth, Polychloroprene (Neoprene) rubber compounded to resist abrasion, weathering and oil. WORKING PRESSURE – VACUUM A 600 7 bar -0.85 BAR A 501 10 BAR -0.85 BAR A 602 15 BAR -0.85 BAR SAFETY FACTOR 2 : 1 SIZES : 2" (50mm nominal) – 12" (300mm nominal). Lengths up to 19.5mtrs. TEMPERATURE RANGE: - 20°C TO + 82°C.

  Construction PTFE Smooth tube externally SS 304 braided Temperature -73 deg C to 260 deg C Resistant to Weather / Ageing/ Diffusion Size range 3/16" upto 6" dia Application Transfer of aggressive chemical such as weak acids, chlorine, Acetyl Chloride, Ammonium Nitrate, Oleum and Molten Sulphur.

Safety Break away couplings are designed to eliminate spillage and damage associated with drive / pull away incidents. These couplings remove the human error element in the area of product transfer. Break Away couplings have a double valve arrangement that ensures closure of both halves before the main seal release to atmosphere. If the hose or the arm faces excess pull stress the pins on the couplings will break which will activate both valves to automatically close and only then permits disconnection.

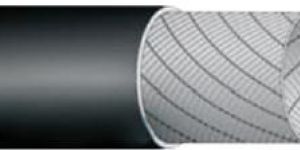

Suitable for general purpose air & water application in industries & irrigation. Lining : Natural & Synthetic Rubber blend. Cover : Natural Rubber with good ageing properties. Reinforcement: Synthetic yarn with high level of retentivity.

Smooth bore, mandrel built, Nitrile lining to convey all grades of petroleum products, including crude oils and other liquid petroleum products having a maximum aromatics content of 40% (For 100% aromatic content a Viton lining is available).REINFORCEMENT Fabric to reinforced lining, with multiple plies of synthetic cord fabric surrounding embedded high tensile steel wire helix. Hoses are supplied electrically continuous unless specifically requested to be electrically discontinuous.Smooth, Polychloroprene (Neoprene) rubber compounded to resist abrasion, weathering and oil.

Composite hoses are customized hoses designed for a particular application as per clients needs. The construction of this hose; an inner and outer wire helix that holds various multiple plies of composite material such as polypropylene, PTFE etc and externally covered with polyvinyl chloride woven polyethylene tetraphthalate polyester fabric with spiral spring to prevent collapse.

CavMac offer a range of hose assemblies which are specifically designed for use in roof drain systems for storage tanks with floating type roofs. The hose assemblies are supplied fitted with internal ballast weights and are designed to achieve neutral buoyancy in the liquid as the level of the roof changes. Clamping fixtures and support chains are supplied as part of the complete assembly which is shipped ready for installation. CavMac offers alternative options for use with hydrocarbons with up to 50% aromatics and for liquids with up to 100% aromatics. The hose assemblies are also available with alternative end fixings such as built in or swaged type to suit customer preference. Roof Drain Hose Systems: 50% Aromatics - Nitrile Cover CavMac offers a range of hose assemblies for drainage of rainwater from floating roof storage tanks containing hydrocarbons with aromatics contents up to 50%. The outer cover of the hose which is in contact with the fluid is manufactured using a blend of NBR rubber which has been developed to resist chemical attack and to resist mechanical damage caused by movement during operation or by handling during installation. The hose assemblies are pre fitted with a lead ballast weight in the bore of the hose which is designed to create neutral buoyancy. End connections can be built in (vulcanized) or swaged depending on customer specification. Hoses assemblies are available with internal diameter up to 6" and lengths up to 51m. Each assembly is supplied complete with a support chain, clamps and shackles. Roof Drain Hose Systems: 100% Aromatics - Viton Cover avMac offers a range of hose assemblies for drainage of rainwater from floating roof storage tanks containing hydrocarbons with aromatics contents up to 100%. The outer cover of the hose which is in contact with the fluid is manufactured using a blend of VITON fluoroelastomer which has been developed to resist chemical attack and to resist mechanical damage caused by movement during operation or by handling during installation. The hose assemblies are pre fitted with a lead ballast weight in the bore of the hose which is designed to create neutral buoyancy. End connections can be built in (vulcanized) or swaged depending on customer specification. Hoses assemblies are available with internal diameter up to 6" and lengths up to 51m Each assembly is supplied complete with a support chain, clamps and shackles.

  Sizes 1 /8" to 4" Pressure Upto 4000 psi. Temperature -25ºC to 250ºC MOC MS, CS, Brass, SS 304, SS 316, SS316L. Seals Nitrile, Neoprene, Viton, Silicone, PTFE.

  Sizes 1 /4" to 6" Pressure Upto 400 psi. Temperature -25ºC to 250ºC. MOC MS, CS, Brass, SS 304, SS 316, SS316L. Seals Nitrile, Neoprene, Viton, Silicone, PTFE.

A PUHB Hose Saddles is a polyurethane saddle designed to suspend hoses. Each model comes complete with its own UV treated polyester sling which is fastened in a choker position. The PUHB Hose Saddle is designed to accommodate the manufacturers' minimum bending radius to protect hose from kinking and prolong the life of the hose. Despite continued high material costs, consumers continue to use inferior products to hoist and suspend their hoses. Based on client feedback we are confident that PUHB Hose Saddle is the world's premier hose suspension device. Application Areas: Dock hoses on Jetties, Rigs and Offshore Platforms. Material handling hoses Vapour recovery hoses. Bundled industrial hoses. Vacuum Hoses. Advantages of PUHB Hose Saddles: PUHB Hose Saddle, maintains a perfect curvature allowing an uninterrupted flow of material through the hose. Moisture drainage troughs that readily allow the hose to breathe, and friction ribs to prevent the hose from slipping. Reduces premature hose failures, thus increasing the life of the hose and decreasing the cost of replacement. Provide increased control during rigging changes and adjustments Reduces risk to personnel working under or near a hoisted hose.   Hoses are not cheap, yet time after time companies hoist, suspend and manipulate their hose with inferior products. In addition to extending/prolonging the life of your hose, a PUHB Hose Saddle will prevent it from kinking or otherwise becoming compromised. Depending on the nature of the material to be transported, kinked or damaged hose can be dangerous or even fatal.

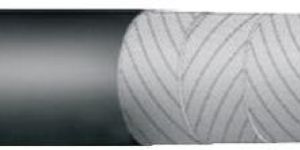

Suitable for pneumatic tools in process industry & and any compressed air application. Lining : Natural & Synthetic Rubber blend. Cover : Natural Rubber with good ageing & abrasion resistance. Reinforcement: Synthetic Yarn with high level of retentivity.

Smooth bore, mandrel built, Nitrile lining to convey all grades of petroleum products, including crude oils and other liquid petroleum products having a maximum aromatics content of 40% (For 100% aromatic content a Viton lining is available). Fabric to reinforced lining, with multiple plies of synthetic cord fabric surrounding embedded high tensile steel wire helix.

Marine loading arms are used for the transfer of liquid or gaseous products from the ship to the shore instead of hoses. Special Features Wiese MLA's: Size Range from DN 150 to 400 (6" to 16") Construction in Steel or Stainless Steel. Easy exchange of Seals without dismantling loading equipment and without auxiliary equipment. Trolley mounted loading arms also in the range. Separate support construction in steel. Hydraulically or manually operated. PTFE seals. Easily adjustable counter weight. Optional Accessories: Emergency Release Couplings. Quick Connect Disconnect Coupling. Vapour return line. Remote control Insulation. Trolley mounting of marine loading arms.

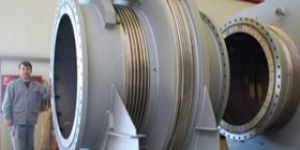

A number of manufacturers offer large scale equipment’s to increase the production and yields. Kompaflex has understood this constant search for performance by manufacturing metallic expansion joints with up to 12 meter diameter. Large expansion joints above 6 meter diameter are often best being manufactured directly on site for logistical reasons.

Hose Rack is specially designed to store hoses at site, taking into consideration the surrounding environment. Every hose rack is custom made depending upon the OD, bend radius and length of the hose. The major advantages of using Hose Racks are as under: Reduces space to store hoses at site. Correct positioning of all the hoses in the rack increases the life of the hoses. Custom made design ensures a perfect rack for your hoses. Complete CS Galvanized body for handling the harshest of the environments. We can also supply a Stainless Steel body if required. Hose Rack can be easily dismantled and transported to wherever required.

Hose Movers are specially designed to move long length, larger bore hoses at site. As per usual practice on site large bore hoses are normally dragged which damages the outer cover of the hoses or workers carry the hoses which result in OHS risk. With the help of Hose Movers one can prevent damages to the hoses and also increase the safety of workers on site.   All new Carbon Steel Galvanized design. Heavy Duty rugged casters. Equipped with hose belts specially designed to secure hoses and prevent spillage during transportation. High intensity reflective markers at both ends for easy identification at night time. Designed to accommodate 3" upto 12" ID hoses. Designed to tip sideways for easy loading and unloading of hoses. Extremely light weight and durable. Approximate dimension 500 mm x 450 mm x 1020 mm.

Wiese Europe's folding stairs have a solid weight design and are built according the highest safety regulations. Features: Covering large height variation Carbon steel hot dip galvanized or chemical resistant anti-slip steps Hand + knee railing Automatic locking pedal in stowed position Balancing by spring cylinders 3-4-5-6 steps Width : 600/800/1.000/3.000 mm, other sizes upon request Hinged step for safety Options: Pneumatic operation Limit switch in normal or ex-proof design Chain locking device Protective cage which surrounds door opening
