JISL Tardeo, Mumbai, Maharashtra

Features and Specifications Manufactured from high quality Poly Vinyl material. Lightweight yet tough and abrasion resistant. Flexible tubing, conforms to any contour. Smooth inner surface prevents scaling and reduces frictional looses. Handles a wide variety of chemicals, gases, and liquids. Each batch passes through stringent quality test. Applications Used as an extension tube in micro irrigationsystem. Used with turbo stake dripper. Used with "Rainport™" Sprinkler assembly.

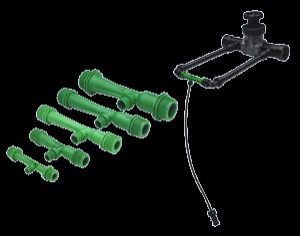

Features and Specifications Innovative Venturi design Innovative design of convergent, throat and divergent sections of Venturi for more injection rate Additional Valve Provided Additional Valve provided for suction side to prevent reverse flow of water Additional Fine Suction Filter To avoid entry of solid particles in system, additional suction filter is provided Various Option Available Venturies are available from ¾", 1", 1¼", 1½", 2" Made of engineering plastic. Excellent chemical resistance to most of the chemicals. Highly efficient and compact differential pressure injection device. Economical and low cost option Available in ¾", 1", 1¼", 1½" and 2" BSP inlet / outlet connection. Any other size can be supplied on demand. Applications Fertilizer and chemical injection through drip and sprinkler irrigation systems

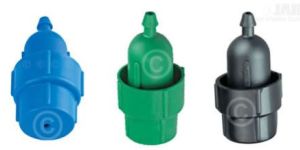

Features and Specifications Rugged construction, made of virgin plastic material. Adjustable discharge according to the water requirements and growth stages. Total shut-off possible. Nominal operating pressure 1 kg/cm²(14.22 psi)but discharge can be adjusted even at low pressures. Unique design prevents blockage of dripper in desert conditions. Available in 0 to 100 lph (0 to 26.45 gph) discharge. Can be supplied in black color Required punch diameter 2.9mm. Applications Suitable for trees having high water requirement. Recommended for sandy soils / desert conditions.

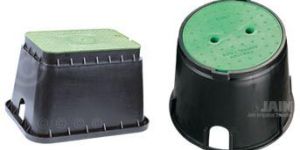

Features and Specifications Rugged reinforced plastic construction. Protects valves from damage due to lawn mowers, other garden equipments and vandalism. Provides convenient access to valves installed below ground level. Robust top cover with non slippery grips. Leaf green colour of the cover matches to surrounding lawn/turf. Heavy duty extended bottom keeps the valve box stable and firmly set in the soil. Special heavy duty model available. Available in circular and rectangular models. Application Valve guard in Turf / Landscaping and in micro irrigation systems.

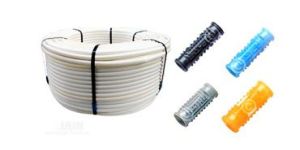

Features and Specifications Manufactured from special grade virginplastic material Use of state–of–the–art technology ensures close dimensional tolerance and longer life. Resistant to UV radiation & environmental effects. Cylindrical dripper with an inbuilt silicone diaphragm ensures consistent performance for longer time. Online stringent quality checks at every stage. Especially suitable for undulating terrain and steep slopes. Wide pressure compensation range. Self cleaning, diaphragm retracts dynamically to throw away particles which are blocking the emitter. Specially designed emitting pipe fittings are available. Please refer to ‘Polyfittings & Accessories’ pages. Available in nominal OD of 16mm, 20mm Minimum 100 micron filtration recommended. Available in standard dripper spacing 20,30, 40, 50, 60, 75 & 90 cm. Other spacings available on demand. On request Turboline PC® can also be supplied in group spacing. On demand, available with rodent deterrent feature. Applications Ideal for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, floriculture, vegetables and spices. Suitable for surface as well as sub–surface irrigation. Recommended for undulating terrain & steep slopes and where longer lateral running length is necessary.

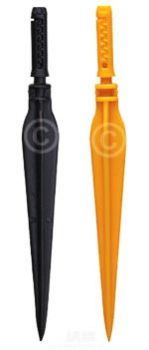

Features and Specifications Turbulent flow path resist clogging. Strong ribbed stake allows exact positioning of the dripper. Can be used with 6mm OD extension tube or vinyl tube. Easy to install. Colour of the dripper represents flow and facilitates easy identification. On demand can supply assembly including dripper attached with required length of extension tube and take off. Minimum filtration requirement - 100 micron. Applications Suitable for pot irrigation, nurseries, glass/green houses, vegetables, home gardens.

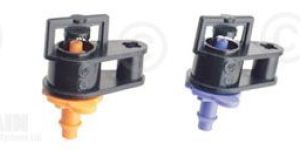

Features and Specifications Ray jet for orchard, vineyard and landscape irrigation. Static, low maintenance jet. High clogging resistance. Diverse distribution patterns and wetted diameters. Easy to open and clean. Unique nozzle structure forms turbulent flow and wide water pathways even at low flow rates, for high clogging resistance. Large number of nozzle and spreader combinations provides wide selection of flow rates and distribution patterns. Flow rates: 16 - 110 lph. Filtration requirements, Black, orange and blue nozzles: 130 microns. Violet, green and red nozzles: 200 microns. Operating pressures: 1.0 - 3.5 kg/cm² (14.22 - 49.77 psi). Applications Recommended for irrigation of wide spread root zone crops.

Features and Specifications Manufactured from tough engineering plastic Non corrosive & resistant to chemicals UV resistant fittings Application Feasible for thick wall thickness Polytubes (plain Lateral / Jain Tough Hose) as well as Dripline tubes for following specifications

An extruded, seamless tube with drippers permanently fixed inside. Manufactured from special grade virgin plastic using state of- the art technology that guarantees the best results. Computerised continuous online quality test ensures reliable quality and consistent performance. Marked with two parallel yellow stripes ‘Twin- Line®’. Symbol of quality. It also helps to ensure upright positioning of the dripper. Large cross-sectional, hydraulically designed turbulent flowpath that makes it a clog resistant emitting pipe. Inbuilt filters prevents physical impurities entering in to the dripper. Excellent CVm, manufacturer’s coefficient of variation, ensures best field emission uniformity. Precision laser drilled outlet holes. Best environmental stress crack resistant. Ensures long trouble free life under strigent atmospheric conditions Easy to roll back & re-lay. Minimum 100 micron filtration recommended. Available in four discharge rates of 0.8, 1.3, 1.6, 2.4 and 4.0 lph at 1 kg/cm² pressure as per metric standard.( 0.21, 0.34, 0.42, 0.63 and 1.06 gph at 14.2 psi as per US standard.) Available in standard dripper spacing 20, 30, 40, 50, 60, 75 and 90 cm. Other spacing and group spacings are available on demand. J-Turbo Aqura® is available in 12, 16, 17, 19, 20 and 23 mm nominal diameter as per metric standard. Also available in ⅝", ⅞" and 1⅜" nominal diameter as per US standard. Specially designed fittings are available. Please refer to ‘Poly Fitting & Accessories’ page.

Features and Specifications Manufactured from high quality polymers. Holds the PE tube firmly at required position. Avoids dispositioning of PE tube. Distributes water evenly. Used with micro tube of 1.0 mm (0.036") ID, 1.3 mm (0.05") ID, 3.3 mm (0.13") OD and 1.5 mm (0.06") ID. Recommended operating pressure of 0.5 kg/cm2(7psi)for 1.00mm(0.036")ID tubing and 0.35 kg/cm2(5 psi)for 1.3mm(0.05")and 1.5 mm(0.06")ID tubing and for 60cm(24")length of tubing. Easy to Install & Monitor. Applications Ideally used for irrigation in bag culture. Recommended to use where dispositioning of tubing is a problem.

Features and Specifications Manufactured from tough engineering plastic Non corrosive & resistant to chemicals UV resistant fittings Application Used to connect thin wall thickness tubes as per following specifications

Features and Specifications Prevents drainage through emitters High and low opening and closing pressure Keeps system filled with water under pressure, enabling immediate start-up Allows all units to start-up or shut-down simultaneously Modular-fits all NaanDan Jain micro-sprinklers Tapered or bayonet connection (bayonet available only with black low-pressure LPD) Minimal pressure loss, even with high flow rates One-stage opening-Super LPD is either completely opened or completely closed Easily dismantled for cleaning and maintenance PE and PVC connections Black: Low-pressure Super LPD for micro-sprinklers Green: Medium-pressure Super LPD for foggers Blue: High-pressure Super LPD for foggers

Features and Specifications Chemical resistant raw materials. The optimal solution for cooling, humidifying and pesticide spraying in greenhouses. Very small droplets (average of 90 microns) for minimal foliage wetting ( pulsed operation). Two nozzle fogger with built-in Leakage Prevention Device. Precision engineering to give fine droplets (average 90 microns). Economical. Excellent Coverage. Easy to install and service. Different connection options suitable for PE and PVC pipe. Discharge - 13 lph ( 2 x 6.5 lph outlets ). Operating pressure: 4.0 kg/cm² (56.88 psi). Recommended spacing:  For cooling and humidifying only:  2.0 to 3.0 m between Foggers. For cooling, humidifying and spraying : 2.0 to 3.0 m between laterals. 1.5 m between Foggers. Minimum filtration requirement 75 micron.

Features and Specifications Special Filter Design Tangential inlet protects the screen from direct impact of sharp/angular particles Unique Smart Clean Element Equipped with Smart–Clean, Unique filtering element, to assure high performance and effective filtration. Easy for Maintenance Strong and smooth opening and closing for cleaning screen element Standard Epoxy Coating for Protection from Corrosion Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects Various Connection Options Available Threaded connection, Flanged connection or Easy Fix™ connection available Draining Facility Available Slant drain valve position at the bottom facilitates effective flushing Mild steel Construction And ‘L’ shaped body allows installation in angular fashion. Available in standard mesh of 100 micron size. (other mesh sizes available On demand). Flow direction from outside of the element to inside (Out to In). Maximum operating pressure 6 kg/cm² (142 psi). Epoxy coated stand for support and proper installation of the filter available as optional. On demand, Super–Clean filter can also be supplied with automatic flushing option. Super–Clean filter can also be supplied in stainless steel body. Can be supplied in multiple batteries option Applications Prevents irrigation system clogging from physical contaminants.system.

Features and Specifications Innovative Filter Design Compact design, economical since no extra fittings required for the connection of Jain Sand Separator to Disc filter Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects Various connection options available Threaded connection, Flanged connection or Easy Fix™ connection available Additional Pressure Check Assembly To check pressure from inlet side & outlet side additional pressure check assembly provided. Draining facility available Drain valve available for draining dirt particles from filter Equipped with Patended Jain Sand Separator Innovative hydrodynamic patented design used in Spin Clean Filter. Mild steel construction for Sand separator and special plastic alloy material for Disc filter Specially equipped Jain Sand Separator with disc filter for efficient filtration. It also helps to prolong cleaning of disc element. Removes fine sand and silt particles of size higher than 75 microns. Maximum operating pressure 10 kg/cm² (142 psi). Can also be supplied in stainless steel as a special order. Can be supplied in multiple batteries option. Can also be supplied with fully automatic option. Applications Used in micro irrigation systems to remove sand and silt particles from irrigation water.

Features and Specifications Radially Convergent Grooved Discs Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In) Standard Epoxy Coating for Protection from Corrosion Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects Various Connection Options Available Threaded connection, Flanged connection or Easy Fix™ connection available Separate Draining Facility Available Large volume of dirt collection chamber with drain valve for Hydrocyclone filter and separate drain valve for Disc Filter Special Rubber Cone Special rubber cone is provided at the bottom of the cone of Hydrocyclone filter to prevent wearing Equipped with Pressure Check Assembly To check pressure from inlet side and outlet side, additional Pressure check assembly provided Mild steel construction. Dirt can be easily flushed out through dirt collection chamber. Available in maximum operating pressure of 6 kg/cm² (142 psi). Can also be supplied in stainless steel as a special order. Can be supplied in higher flow capacities in multiple batteries option. Applications Used in micro irrigation systems to remove sand and silt particles from irrigation water.

Features and Specifications Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects Unique Filter Design Unique dual chamber tank design equipped with mushrooms for filtrations. High Quality Silica Sand as Media Filtration media is crushed silica sand/quartz gravel of particle size 1 mm to 2 mm (0.039 to 0.078 inch). Innovative Mushroom Assembly Innovative Mushroom assembly provided to pass filtered water in system. Various Connection Options Available Threaded connection, Flanged connection or Easy Fix™ connection available. Various Options for Backwash Available in semi–automatic or fully automatic backwash options. Manufactured from mild steel as per international fabrication standards. Designed for uniform distribution of incoming raw water over the media bed which ensures very effective filtration & backwash. Effective filtration of 75 micron (200 mesh). High filtration efficiency due to uniform grade of filtration media (silica sand / quartz gravel) and specially designed outlet candles. Maximum pressure rating 10 kg/cm² (142 psi). Clean–Master can also be supplied with stainless steel body. Optional multi tank modules for higher filtration capacities available. Applications For filtration of water in micro irrigation systems to prevent clogging due to physical and biological impurities.

Fabricated with galvanised / Coated pipe in various combination to assemble single or multiple unit of Clean – Master®, Filtro – Master™ and header assemblies. Light weight and cost effective plastic manifold and chemical resistant Stainless Steel manifold are available on demand.   Features and Specifications Uniformly graded, angular sand particles for high filtration efficiency. Purity of silica 98.8%. Particle size range 1 mm to 2 mm (0.039 to 0.078 inch), passes through 10 mesh and retained on 18 mesh. Uniformity coefficient 1.5. Available in 30 kg packing. Applications Used as media in various media filters for water filtration

Features and Specifications Manufactured from tough engineering plastic Non corrosive & resistant to chemicals UV resistant fittings Application Used to connect thin wall thickness tubes as per following specifications

Features and Specifications Innovative Compact design Innovative compact design which operated without electricity Accurate and Proportional Injection Rate For accurate injection, special adjusting lock arrangement provided Additional Fine Suction Filter To avoid entry of solid particles in system, additional suction filter is provided Different options available ON/OFF Knob OR Air Release option available Made of strong plastic material with high chemical resistance. Choice of selection on the basis of desired proportions, Adjustable from 0.3% to 2%. Adjustable from 0.4% to 4%. Fixed dosage 6%. Available in two models to provide operational flexibility, With on/off system. With Air Release Valve. Maximum operating pressure 5 kg/cm² (70 psi). High pressure model (6 kg/cm²) available on demand. Simple to install, operate and maintain. Low pressure loss. ¾" BSP inlet / outlet connection. Dosing flow range, 0.6 to 50 lph for 0.3% to 2% adjustable. 0.12 to 100 lph for 0.4% to 4% adjustable. 150 lph for 6% fixed dosage. Applications Recommended to use where precise application of fertilizer and other agricultural chemicals are require.

Features and Specifications Single Barb Design Single barb fitting used for connecting one or more outlets from one dripper / emitter Special Connector for Multi Outlet Connection Special one piece connector designed for Green House and Poly House Used in Polyhouse / Greenhouse and Nurseries (Suitable Vinyl tubes) Application Used in Open field Polyhouse / Greenhouse and Nurseries on JSCPC Plus, Click tif, J-Turbo key Plus emitters (Suitable Polytubes / Jain Tough Hose)

Features and Specifications Special barb fitting Special barb fitting used for in different Micro Sprinkler fittings Compact Design Compact design manufactured from high performance plastic Used in with Micro Sprinkler (Suitable Extension Tube) Application Used with Mini Sprinkler (Suitable Vinyl Tubes)

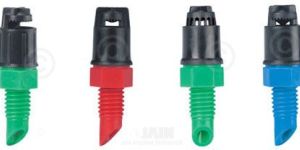

Features and Specifications Manufactured from high quality polymers to achieve wear resistance and longer trouble free performance. Stream jet pattern covers wide area. Precision moulding ensures uniform distribution. Available in five spray pattern and five colour coded nozzle sizes to make it suitable for variable field conditions. Lower maintenance, no moving parts/ seals to wear out. Wide surface water distribution provides advantages in areas where soil composition has poor lateral movement. Low spray profile minimizes water on foliage. Nominal operating pressure 1 kg/cm² (14.22 psi). Easy to install with different mounting options like, Clip Stake for J-Jets / Foggers / Misters (Code: DCSJ) with rigid riser. Stake for Modular / J-Jets / Foggers / Misters (Code: DSJF4 / DSJF8). Square stake for J-Jets / Foggers / Misters (Code: DSSJ) Mini Spray Jet stake assembly including micro jet, 6 mm OD extension tubing (0.5 m or 1.0 m long) and take off available on demand. Minimum filtration requirement - 100 micron. Applications Useful for irrigation of orchards, nurseries, vineyards, green houses. Suitable for irrigation of plants having widespread root zone. Useful to maintain adequate micro environment in the canopy area.

Features and Specifications Special barb fitting Special barb fitting used for in different Micro Sprinkler fittings Compact Design Compact design manufactured from high performance plastic Used in with Micro Sprinkler (Suitable Extension Tube) Application Used in Open field Polyhouse / Greenhouse and Nurseries (Suitable Polytubes / Jain Tough Hose)
