Me Hydraulics Pvt. Ltd. Vasai, Mumbai, Maharashtra

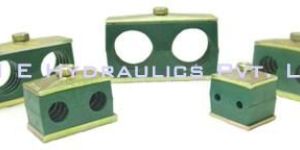

We are offering twin series tube clamps. Twin series pipe clamps as per din 3015-part-3, meâ�� twin series pipe clamps din 3015 are available for tube 6mm to 42mm, 1/4"od to 1.5"od, 1/8"nb to 1 1/4"nb installation information: a] installation on weld plate b] installation on mounting rails c] multi - level assembly advantages: 'me' tube clamps symbolize quick & easy pipe & hose installation as well as clean distinct pipe lay-out. special rib design reduces vibration and noise pollution in systems prevents loosening of joints & weld due to vibration and thus reduces leakage in systems 'me' clamps provides rigid support to the pipe lines and absorbs shocks & vibration temperature range up to 400â°c [material dependent] spacing for 'me' clamps: recommended spacing for clamps [ for static load] tube od spacing in meter [suggested] 6 to 12.7mm = 1.0mtr 12.7 to 22mm = 1.2mtr 22 to 32mm = 1.5mtr 32 to 38mm = 2.0mtr 38 to 57mm = 2.7mtr 57 to 75mm = 3.0mtr 75 to 76.1mm = 3.5mtr 76.1 to 88.9mm = 3.7mtr 88.9 to 102mm = 4.0mtr 102 to 114mm = 4.5mtr 114 to 168mm = 5.0mtr 168 to 219mm = 6.0mtr

We are offering tube clamps. Manufactures tube clamps as per din 3015 standards. Me' tubeclamps are available in: standard series clamps-6mm to 76mm,1/4"od to 3"od, 1/8"nb to 2 1/2"nb-confirms to din3015-1 heavy series clamps- 6mm to 219mm,1/4"od to 8.5"od, 1/8"nb to 8"nb- confirms to din3015 - 2 twin series clamps- 6mm to 42mm, 1/4"od to 1.5"od, 1/8"nb to 1 1/4"nb- confirms to din3015 - 3 light series clamps- 4mm to 22mm, 1/4"od to 22, 1/8"nb to 1/2"nb- ln, lng, lnu series ri-clamps- standard series - 10mm od to 32mm od- clamps with rubber insert ri-clamps- heavy series - 10mm to 88.9mm od- clamps with rubber insert construction series- 220mm to 800mm od- two part weld construction material of construction: jaws: poly propylene, poly amide [pa], aluminium & tpe mounting parts: carbon steel, ss304, ss316 spacing for 'me' clamps: recommended spacing for clamps [ for static load] tube od spacing in meter [suggested] 6 to 12.7mm = 1.0mtr 12.7 to 22mm = 1.2mtr 22 to 32mm = 1.5mtr 32 to 38mm = 2.0mtr 38 to 57mm = 2.7mtr 57 to 75mm = 3.0mtr 75 to 76.1mm = 3.5mtr 76.1 to 88.9mm = 3.7mtr 88.9 to 102mm = 4.0mtr 102 to 114mm = 4.5mtr 114 to 168mm = 5.0mtr 168 to 219mm = 6.0mtr advantages: 'me' tube clamps symbolize quick & easy pipe & hose installation as well as clean distinct pipe lay-out. Special rib design reduces vibration and noise pollution in systems prevents loosening of joints & weld due to vibration and thus reduces leakage in systems 'me' clamps provides rigid support to the pipe lines and absorbs shocks & vibration temperature range up to 400°c [material dependent] installation information: a] installation on weld plate b] installation on mounting rails c] multi - level assembly application: to support tubes, pipes, hose & electric cables industries: industrial hydraulics mobile hydraulics marine hydraulics offshore general industrial pipe construction mining industry nuclear reactor construction instrumentation and control technology pneumatics

'me' pipe clamps provides quick & easy supports to pipe, tube, hoses, electrical cables installation. Our clamps are designed as per din 3015 standard specifications. Our clamps assure strong, and reliable support for your piping systems; absorbs shock, dampen vibration and reduces noice in hydraulic systems.

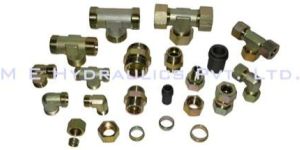

We are offering hydraulic fittings.me' bite type fittings manufactured to din2353 / iso8434 - 1 for ease of interchangeablity and to maintain high quality standards. Each fittings are precisely machined and checked thoroughly to achieve consistent high quality. Wide selection of material and configuration suits every applications and ensures leak proof piping & easy pipe layout. Heat treatment of ferrule ensures perfect bite & assembly. me' single ferrule fittings are manufactured to suit mm od tube [din2391 c], od tube & nb pipe as well. technical specifications 24° standard: din 2353 / iso 8434 - 1 & iso 8434-4 [weld nipple type] series & pressure range: ll series - 100 bar, l series - 250 bar max, s series - 630 bar size: 4mm to 42mm od, 1/4"od to 2"od, 1/8"nb to 2"nb material of construction carbon steel, ss304, ss316, brass (from solid bar stock / forged body) surface treatment: phosphates, trivalent (chrome vi free), zinc bi - chromated (a3c) principle: me' single ferrule tube fittings consists of : 1] coupling nut 2] ferrule - cutting ring 3] body as the coupling nut is tightened, the ferrule moves along the tube. When the ferrule outside diameter contacts the inner taper of the coupling body, the front cutting edge of the ferrule makes the primary “bite” cleanly into the outer surface of the tube. At the point where the secondary “bite” comes into contact with the surface of the tube, a sharp increase in torque will occur. This signals to the operative that a perfect, pressure-tight joint has been achieved and no further tightening is necessary. At the same time, the ferrule is clamped firmly by the nut on the tube providing a perfect anti-vibration lock. advantage of 'me' single ferrule fittings: cnc machined component ensures high quality finish & excellent quality in house qap ensures consistent quality wide range to suit every applications confirms to din2353 / iso 8434 -1 right quality, at right time & at right price 'me' tube fittings are passed following tests: visual check dimensional check proof pressure test third party inspection offered on request

We are offering hose fittings. Me' offers complete range of high quality hose fittings in wide range from steel, s.s.304,s.s.316 & brass. we offer crimped fittings & reusable end fittings for : braided hoses spiral hoses. 'me' hose fittings are confirmed to : din 20066 sae 514 din 7642 bs 5200-iso wd 8434-6 din 7641 sae j 518 sae j 1453. available configurations are: ferrule standpipe male fixed male swivel flange code 61 / code 62 split flange female swivel reusable fittings banjo fitting.

We are offering equal elbow.me' bite type fittings manufactured to din2353 / iso8434 - 1 for ease of interchangeability and to maintain high quality standards. Each fittings are precisely machined and checked thoroughly to achive consistent high quality. Wide selection of material and configuration suits every applications and ensures leak proof piping & easy pipe layout. size : 4mm to 42mm od, 1/4"od to 2"od, 1/8"nb to 2"nb. material of construction carbon steel, s.s.304, s.s.316, brass from solid bar stock / forged body.

We are offering high pressure valves and to suit all applications : our range of valves are: • precision flow control valves • high pressure ball valves • non return valves • high pressure needle valves technical specifications: applications : max working pressure up to 10,000 psi material : carbon steel, ss304, ss316 and brass end connections : female / male thread, tube od size : 1/8" to 2" and 6mm to 42mm tube od.

We are offering flare fittings -iso 8434-2. Me' 37° flare fittings confirms to iso 8434-2. Our 37° flare tube fittings comprises a coupling body, sleeve and nut. On flare tube fitting, the flared tube is wedged and held between the sleeve and the coupling body. The sleeve centres & supports the tube, at the same time preventing it from twisting and dampening vibration. That makes highly dependable joint due to metal seal & simple assembly.

We are offering precision pipe fittings , adaptors etc. Me' offers wide range of precision pipe fittings and adaptors to suit every applications. The benefits of our pricision fittings range are it makes piping easy by reducing number of joints, handles high pressure application and it suits almost all media and temprature range. technical specifications general outlay of pressure ranges, tube sizes and threads size : 1/8" to 2" threads : sae straight thread un/unf class 2a/2b nptf, npt, metric, bspp, bspt working pressure : 10000 psi material construction : carbon steel, ss304, ss316, brass surface treatment : phosphates, trivalent (chrome vi free), zinc bi - chromated (a3c).

We are offering tube clamps. Me standard series pipe clamps are precisely manufactures as per din 3015-part-1 that ensure high quality standards consistently. ‘me” standard series tube clamps are available for tube od 6mm to 76mm, 1/4"od to 3"od, 1/8"nb to 2 1/2"nb. advantages: 1.'me' tube clamps symbolize quick & easy pipe & hose installation as well as clean distinct pipe lay- out. 2.special rib design reduces vibration and noise pollution in systems 3.prevents loosening of joints & weld due to vibration and thus reduces leakage in systems 4.'me' clamps provides rigid support to the pipe lines and absorbs shocks & vibration 5.temperature range up to 400°c [material dependent] spacing for 'me' clamps: recommended spacing for clamps [ for static load] tube od spacing in meter [suggested] 6 to 12.7mm = 1.0mtr 12.7 to 22mm = 1.2mtr 22 to 32mm = 1.5mtr 32 to 38mm = 2.0mtr 38 to 57mm = 2.7mtr 57 to 75mm = 3.0mtr 75 to 76.1mm = 3.5mtr 76.1 to 88.9mm = 3.7mtr 88.9 to 102mm = 4.0mtr 102 to 114mm = 4.5mtr 114 to 168mm = 5.0mtr 168 to 219mm = 6.0mtr application: to support tubes, pipes, hose & electric cables etc. material of construction: jaws: poly propylene, poly amide [pa], aluminium & tpe mounting parts: carbon steel, ss304, ss316.

We are offering heavy series pipe clamps.me ‘hydraulics pvt.ltd. Heavy series tube clamps manufactures as per din 3015-part-2, that ensure high quality standards constantly. me” heavy series tube clamps are available for tube od 6mm to 219mm,1/4"od to 8.5"od, 1/8"nb to 8"nb spacing for 'me' clamps: recommended spacing for clamps [ for static load] tube od spacing in meter [suggested] 6 to 12.7mm = 1.0mtr 12.7 to 22mm = 1.2mtr 22 to 32mm = 1.5mtr 32 to 38mm = 2.0mtr 38 to 57mm = 2.7mtr 57 to 75mm = 3.0mtr 75 to 76.1mm = 3.5mtr 76.1 to 88.9mm = 3.7mtr 88.9 to 102mm = 4.0mtr 102 to 114mm = 4.5mtr 114 to 168mm = 5.0mtr 168 to 219mm = 6.0mtr material of construction: jaws: poly propylene, poly amide [pa], aluminium & tpe mounting parts: carbon steel, ss304, ss316 industries: industrial hydraulics mobile hydraulics marine hydraulics offshore general industrial pipe construction mining industry nuclear reactor construction instrumentation and control technology pneumatics application: to support tubes, pipes, hose & electric cables installation information: a] installation on weld plate b] installation on mounting rails c] multi - level assembly.

'me' pipe clamps provides quick & easy supports to pipe, tube, hoses, electrical cables installation. Our clamps are designed as per din 3015 standard specifications. Our clamps assure strong, and reliable support for your piping systems; absorbs shock, dampen vibration and reduces noice in hydraulic systems.
