Meco Instruments Pvt Ltd Sewri, Mumbai, Maharashtra

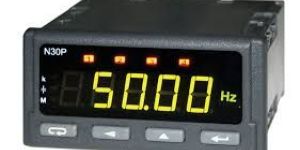

Models : FDM3AS FDM72 x 1444SA, FDM5S FDM72 x 1444SB, RPM3AS, RPM963AS, FDM963AS, FDM965S, FDM1444SA, FDM1444SB Ordering Information Model, Input Frequency Range, RPM Range (for RPM Meter0, Input Voltage, Auxiliary Supply, Accuracy Class, Digits and Display Digit Height

Terminal Protection Cover Reliable & Rugged Static Circuits Low Ripple in outputs Signal Flame Retardant Polycarbonate case Choice of Multiple Asymmetrical Outputs Wide Choice of Suppressed Ranges Open and Short Circuit Protection for Outputs Dual Outputs (Non Isolated Isolated) Self – Powered, AC, DC Auxiliary Supply Bi-directional Output Fast Response Time Din-Rail Mounting Bi-Directional Inputs for Import Export input

Models : DPF11, DPF31, DPF9611S, DPF9631S, DPF72x14411, DPF72x14431, DPF14411, DPF14431 Ordering Information Model, Input Voltage, Input Current, Input Frequency, CTR PTR (if any), Auxiliary Supply, Accuracy Class and Display Digit Height

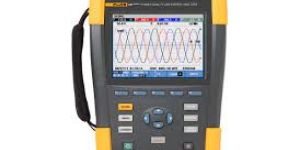

Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems Display of 35 Parameters in one screen (3P4W) Programmable CT (1 to 600) and PT (1 to 3000) Ratios RMS, PEAK Value & Crest Factor True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR) Power Factor, Phase Angle ( Ф ) & Energy (WH, KWH, KVARH, PFH) Average Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample Period) Analysis of total Harmonics Destortion (THD-F) Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE) Built in timer & Calender for Data Logging 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems) Optical Isolated RS-232C ~ USB Interface

Large LCD Display with Backlight Memory Retention (KWh, MIN, CU, CUKWh, CO2) Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy) Timer & Relay Function for Power ON OFF the Load TRMS V & mA for Sine Wave

Single Person Push Button Operation High Accuracy ± 5% of Indicated Value in Effective Range Scale Length : 80 mm (approx) Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance Measurement from 10% to 100% of the Insulation Resistance Range ABS Resin Yellow Case with Polycarbonate Meter Front Cover Meets Requirement of IEC1010, Installation Category II, 1000 V Phase Earth Designed to Generally Confirm to IS 10656-1983 7 Models with various Voltage to MOhm Ranges Battery Adaptor (Optional) for MC-900BA Series

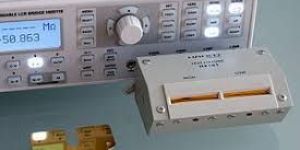

asic measurement accuracy 0.1% & speed upto 10 meas sec Large LCD display with bright white backlight Ultra low power consumption, battery powered for 2 hours of continuous use Automatic identification function (Ai). Percentage display & 4 tolerance comparator : 1%, 5%, 10% & 20% 9V battery & External power supply Automatic correction function with datahold, max. min. average recording Utility function configuration & current setup recovery after power off Standard Mini-USB interface, SCPI compatible Auto power Off Constant output impedance : 100 ohm

Models : FDM3AS FDM72 x 1444SA, FDM5S FDM72 x 1444SB, RPM3AS, RPM963AS, FDM963AS, FDM965S, FDM1444SA, FDM1444SB Ordering Information Model, Input Frequency Range, RPM Range (for RPM Meter0, Input Voltage, Auxiliary Supply, Accuracy Class, Digits and Display Digit Height

Many products have been designed by our R & D Department (Recognized by Department of Scientific & Industrial Research, Ministry of Science & Technology, Govt. of India, New Delhi.) which holds several design registrations patents. The Make In India spirit is very much ignited at MECO and we use state of art electronics and mechanical infrastructure along with indigenously developed intelligent software firmware in creating products that are ideal for the Power, Renewable Energy, Solar and Automotive Sectors.

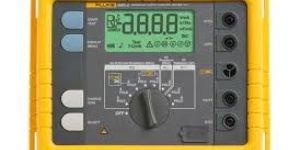

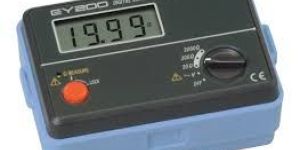

3-12 Digit ( 1999 Counts) LCD Display Auto Power Off Function (after 5 min) Low Battery Warning Indication Capable of Measuring Earth Voltage (0 - 20 V AC) Small, Light Weight & Portable Extremely Simple to Operate Connect - Press - Read Designed to Reject High Levels of Noise & Interference Designed to Generally Confirm to IS10656 -1983 Range Selection & Single Person Push Button Operation Switches Two Ranges for Earth Resistance Measurement Functions Icons on Display Battery Operated IEC 1010 CATIII 200V

Non Contact Ground Resistance Measurement No Auxiliary Electrodes Needed Data Storing Memory Data Hold, Noise Signal Ground Resistance Measurement 0.010 Ω ~ 1000 Ω Leakage Current (0.5mA ~ 30.00 A) (Model 4680BLC) Suitable for Earthing Strip of 65mm x 32mm Jaw Opening 65 x 32 mm Approx. Conductor Size Ф 65mm * 32mm Auto Ranging, Overload Indication, Low Battery Indication Continuity Loop Test, Configurable Alarm, Auto Power Off Display 4 Digit 9999 counts LCD

ures : Temperature 40°C ~ 1000°C -40°F ~ 1832°F Power : Two 1.5 V 'AA' Battery Low Power Indication Battery Life 200 hours typical Dimensions : 180 x 90 x 52mm (approx)

Models : SMP48 SMP96 Features : TRMS Using Micro-Controller 4 Digit 9999 (Max.) Counts, High Resolution Display User Programmable Display (Primary CT Shunt Value) Auto Selection of Decimal Point Red LED Super Bright Display High Accuracy Across the Entire Range Auxiliary Supply : 230V AC ± 20% @ 50 60 Hz

Models : SMP48 SMP96 Features : TRMS Using Micro-Controller 4 Digit 9999 (Max.) Counts, High Resolution Display User Programmable Display (Primary CT Shunt Value) Auto Selection of Decimal Point Red LED Super Bright Display High Accuracy Across the Entire Range Auxiliary Supply : 230V AC ± 20% @ 50 60 Hz

Models : 27 Auto - 400A AC, Auto Ranging, 3½ Digit 2000 Counts, Data Hold, Max, NCV, APO AC Current 2A, 20A, 200A, 400A (Auto Ranging) AC Voltage 2V, 20V, 200V, 600V (Auto Ranging) DC Voltage 200mV, 2V, 20V, 200V, 600V Resistance 200 , 2k , 20K , 200k , 2M , 20M (Auto Ranging

Models : ABM18 Features : MECO ABM18 is a portable Automobile Battery Tester which can check the capacity condition of different types of Motorcycle and Motorcar batteries from 2 to 200Ah. The product consists of a DC Voltmeter, Load Resistor and Testing Clip. The state of the battery is indicated on the meter dial as 'FULLUP' (White), 'NORMAL' (Green),'RECHARGE' (Yellow), 'DISCHARGE' (Red) directly. Technical Specifications Rated Voltage of Battery to be Tested : 2, 6, 12V DC Rated Capacity of Battery to be Tested : 2 - 200Ah Weight : 500gms (approx.) Dimensions : 225 x 124 x 68mm (approx)
