MR Technology Goregaon East, Mumbai, Maharashtra

12 LCD Display To Help Position Flexible Mount Head Foot Pedal Switch To Place Mount Size : 260*280mm (Mount QFP, QFN, PLCC,…) Speed 300-600 PiecesHour

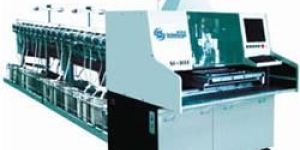

This XG-3000 is the latest and most practical radial inserting model. With optional modules it can be used to insert the bulk LED. XG 3000 is the only inserter model. The excellent stable inserting performance of XG-3000 is promised by independent several sets of the servo control system. Based on Windows 2000 system the application software is designed for easy operation and more understanding. Machine support Capacitor, Transistor, LED lights, switch. Resistor, Connector and other radial tape packed material.

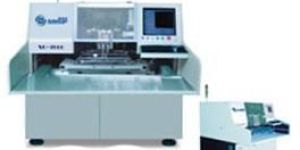

The odd form inserter XG-7000 series machines can send the various specs of bulk light touch switches and other odd form components from the vibrating feeder to the insertion head of the machine, and insert them into the PCB at the speed of 12000 PCSH. The application software is based on the Windows 2000 system, which makes that is easy for human to communicate with the machine and improve the quality of the production and the efficiency.

Sciencgo LED Inserter XG-3300 provides outgoing board quality levels of 300 ppm or better with high insertion speed, providing superior reliability and price performance. The LED Inserter XG3300 can insert the LEDs from bulk input packages into printed circuit boards. After the double photoelectric detecting, the bulk input packages LEDs will be at the right polarization. And sent to the CTA. The XG-3300 delivers high throughput, reaching 18,000 cph (0.2 secondsinsertion).

Power Supply : 220V, AC (single phase) 50/60 HZ, 2.0KVA

Hot Air Temperature Can Be Adjusted Suitable For Lead And Lead-Free Welding Bottom Preheating Max Temperature : 350°C Top Heating Temperature : 450°C Max Chip Size : 70*70mm

Connection With PC, Software Controls Temperature Real-Time Temperature Testing Function Welding Size : 230*360mm Packing Weight : 58kg Packing Size : 810*680*640mm

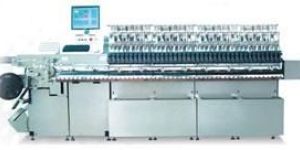

This XG-1000 is the latest and most practical axial sequencer model. With optional modules, it can be configurated up to 100 stations. XG-1000 is the packaged machine of Axial inserter XG-2000. XG-1000 sequence different types of 52mm axial tape into 42mm axial tape before the 42mm tape is fed to the XG-2000. XG-1000 can run at the speed of 26,000 pcsh. The excellent stable in sequencing performance of XG-1000 is promised by independent models, easy operating software.

Axial inserter XG-2000 series machines have the function of inserting the axial electrical components and jumper wire. The unique servo control system guarantees the excellent performance in the procedure of inserting, also promise the efficient saving of the jumper wire amount. Cause of the outstanding inserting of high speed and high density, the axial inserter XG-2000 brings you a flexible schedule of production. Based on the easy-understanding platform, the design of man-machine interface will help you improve the quality of the production and the efficiency of the producing.

Power Supply : 220V, AC (single phase) 50/60 HZ, 1.5KVA;

Automatic riveting machine XG-9000 can send the various specs of bulk rivet (1.6mm-3.5mm) , long rivet (20mm) and taped rivet from the vibrating feeder to the insertion head for the precision insertion into the PCB at the high speed of 15000 PCSH. It has the manual or automatic modules to change the PCB. The application software is based on the Windows 2000 system, which offers a friendly interface to bring you the improvement of the combination of the production quality and the efficiency.

Special Precision System Light Intensity Control Technology Double LED Color Technology Precision : ± 10um PCB Size : 250*300mm Dimensions : 1100*720*620mm Weight : About 150kg
