NEON CONTROLS Ghatkopar West, Mumbai, Maharashtra

Production Power : 0-3kw

Feature : Proper Working, Water Proof

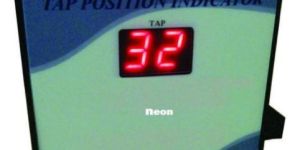

Digital Tap Position Indicator, type TX-201 is a microcontroller based instrument used to indicate the Tap position of the Power Transformer with On Load Tap-Changer. Microcontroller based design. Automatic detection of Number of Taps. 1 K Ohms Step Resistance or User defined. Flicker Free and clear Seven segment LED display for long distance viewing. 4-20mA DC Current Single Dual Output for SCADA connectivity.

Brand Name : neon

Color : Black

Condition : New

Application : Tap Position

Size : 96x96 mm

Certification : ISO 9001: 2015, CE Certified

Feature : Easy Maintenance.

Testing especially if the protective fear is connected to the power line via a current transformer it is advisable to carry out primary injection testing These sets have been designed to enable the users of heavy electrical equipment to carry out such tests as have been described above with a maximum efficiency at minimum cost, providing a convenient of delivering, controlling and measuring a heavy current in a comparatively low voltage low impedance circuit. Ideal for testing circuit breakers, ammeters with or without current transformers and much other application where a heavy current supply of short duration is required

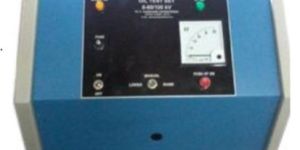

It is ideal for speedy and accurate testing of di-electric strength of transformer and circuit beaker oil under test room condition in accordance with IS:6792-1972 for oil testing. Input: 230V Single Phase AC 50Hz. Output: Continuously variable from 0- 60kV 0 – 80kV 0 – 100kV AC with centre point of the HV winding earthed Capacity: 1 KVA Duty: Intermittent duty cycle Nature of Cooling: The transformer is epoxy resin cast type ,air cooled Motorised Operated

Capacity : 1 KVA

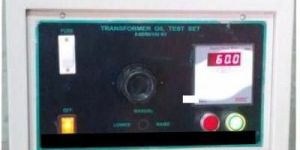

It is ideal for speedy and accurate testing of di-electric strength of transformer and circuit beaker oil under test room condition in accordance with IS:6792-1972 for oil testing. Input: 230V Single Phase AC 50Hz. Output: Continuously variable from 0- 60kV/ 0 – 80kV / 0 – 100kV AC with centre point of the HV winding earthed Capacity: 1 KVA Duty: Intermittent duty cycle Nature of Cooling: The transformer is epoxy resin cast type ,air cooled Manually Operated

Brand Name : neon

Power : 230 v ac, 50 hz

Application : oil filtration

Certification : CE Certified, ISO Certified

Feature : High Accuracy

Packaging Type : Catron

Number Of Flower : Oil Testing Kits

Total Carbohydrate : 1 Yr

After-Sales Service Provided : one year

Country of Origin : India

Sample Type : Oil

Result Type : Quantitive

Testing Type : Oil Testing

neon Digital Tap Position Indicator, type TX-201 is a microcontroller based instrument used to indicate the Tap position of the Power Transformer with On Load Tap-Changer. Microcontroller based design. Automatic detection of Number of Taps. 1 K Ohms / Step Resistance or User defined. Flicker Free and clear Seven segment LED display for long distance viewing. 4-20mA DC Current Single \ Dual Output for SCADA connectivity.

neon Multifunction Meter are Based on 32 Bit Pin microprocessor, with 24 Bit Six Channel Sigma Delta Front end Analog to Digital Converters. The measurement Accuracy of Class 0.5 can be achieved on the Practical range of operation. Micro control Design. 32 Bit, 100 Pin, Processor. SMT Technology. Various Choice of Bright FND Display. 2 – 4 Keys of Programming Input. Higher Class of Accuracy. 2 Quadrant to 4 Quadrant. Provision of RTC based Load Survey. RS485 interface. MODBUS Protocal. Integration of 1 or 2 Potential free contacts.

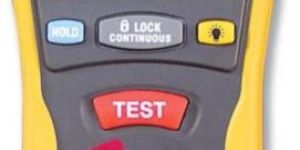

Data Hold facility Displays test result and battery voltage on the same screen LOCK Button for continuous HANDS FREE measurement Both Earth Resistance and Earth Resistivity can be measured Can be used in 4 Terminal and 3 Terminal configurations Display : 4 Digits EXTRA LARGE Backlit Dual LCD Display Earth Resistance Range : 0 – 10/100/1000 Ohms Accuracy : ±2% Low Resistance Range : 0 – 200 k.Ohms Accuracy : ±2% DC Voltage : 0 – 1000V Accuracy : ±0.8% AC Voltage : 0 – 750V Accuracy : ±1.2% Complies with CE, CAT-III 1000V Complete with Testing Kit Re-Chargeable Battery and Battery Charger can be provided at extra cost

Model Number : 1501

Brand Name : neon

Packaging Type : Multicolor

Condition : New

Power Source : Battery

Automation Grade : Automatic

Application : Industrial Use

Certification : ISO 9001:2008 Certified

Feature : Easy To Use

Number Of Flower : Earth Resistance Tester

Frequency : 45Hz

Total Carbohydrate : 1year

Country of Origin : India

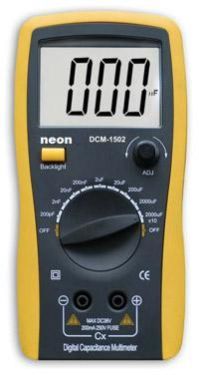

Easy to read LCD Display 3-1/2 Digits 1999 Counts High measuring Accuracy Measurements possible even under strong magnetic field LSI Circuit Provides high reliability and durability Light Weight and compact construction Range: 0 – 200p / 2n / 20n / 200n / 2u / 20u / 200u / 2000u / 20000uF Accuracy: ± 0.5%

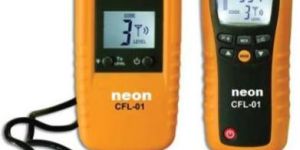

Consists of a transmitter and a receiver Used to detect or trace conductors and to find short faults in them. The signal generated by the transmitter is made to a modulated current, generating an electromagnetic field around a conductor. This electro magnetic field induces a voltage within the receiving coil. The induced voltage is amplified, decoded and converted to the original signal by the received and finally displayed on screen. It is used for finding  conductors  in  walls, conductor interruptions, short-circuits in conductors Conductor tracing in the soil Detecting fuses and assigning current circuits Tracing sockets and distribution sockets having accidentally been covered by plastering Detecting interruptions and short-circuits in floor heating Tracing metallic water and heating piping All application areas (both,voltage-free and live) are performed without usin any additional instruments Transmitter display indicates the transmission level,the transmission code, as well as the foreign voltage Receiver display indicates the reception level,the transmission code,as well as the mains voltage detection Automatic and manual sensitivity adjustment Acoustic reception signal may be switched off Auto-Power-Off function Backlight Additional lighting function when working under bad lighting conditions Additional transmitters are available to extend or distinguish several signals

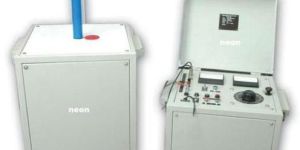

These are suitable for testing electrical insulation of condensers, plastic line tanks, electric cables, PIV of diodes and many other items and particularly motors, transformers, switch gears etc and particularly applicable for testing electrical equipment at site where portability is vital Generally available in one unit and sets for higher output voltage are available in two units. However, in case if required sets in more than two units can also be manufactured. Input: 230V, 50Hz AC (Sets with other voltage and frequency can also be made) Output: Continuously variable from zero to max. rated output voltage Sets with 5kV to 100kV output voltage can be made with current capacities upto 100mA. capacity: Available in different standard current capacities of 3mA, 5mA, 10mA, 20mA, 30mA, 50mA and 100mA can be made AC and DC combined high voltage sets are also available. Complete with power chord, instruction manual and test certificate

Brand Name : neon

Condition : New

Automation Grade : Automatic, Semi Automatic

Certification : ISI Certified, ISO 9001:2008 Certified

Feature : Easy To Install

Number Of Flower : Oil Breakdown Voltage Test Set

Frequency : 50-100Hz

Country of Origin : India

Easy to read LCD Display 3-12 Digits 1999 Counts High measuring Accuracy Measurements possible even under strong magnetic field LSI Circuit Provides high reliability and durability Light Weight and compact construction Range: 0 – 200p 2n 20n 200n 2u 20u 200u 2000u 20000uF Accuracy: ± 0.5%

neon has full-fledged expertise in solving problems related to electrical energy management. neon product are dedicated to the betterment of utilization of electrical energy. We have vast experience in the installation and commissioning of automatic power factor control system based on your controllers and allied products. We offer our experience based on this experience to you by way of providing problems of energy management related to power factor improvement..What is Power Factor(P.F.)?Power Factor (P.F.)is the ratio of active power to apparent power-i.e P.F.=KW/KVA Power Factor is the – so – to say efficiency of utilization of electrical power. It is obvious that KW =KVA X P.F. Thus for a given voltage and active power (KW), the current drawn is inversely proportional to the power factor.

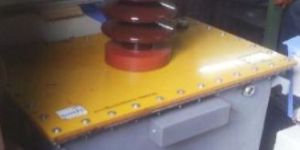

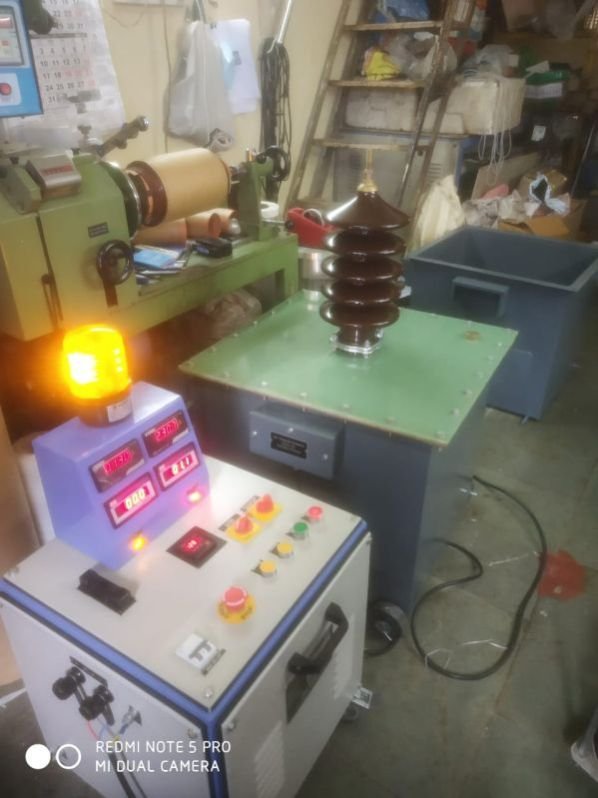

These sets are suitable for applied voltage tests on transformers, motors, gloves bushing and many other electrical equipments and insulating materials and components. The sets are capable of giving continuously variable control of High Voltage from zero to maximum rated output voltage and maintaining pressure at the desired level by supplying the charging current necessary for the capacity of the equipment under test. Generally available in one unit and sets for higher output voltage are available in two units. Input  :  230V or 415V AC 50Hz (Any one) Output  :  Continuously variable between 0 to maximum rated output voltage. Max Capacity : AC HV unit are spread over a wide voltage and current and voltage range from 1 kV to 100kV having capacity from 500 VA to 25 KVA however the kV rating might go beyond 50kV if required by the customer. Duty Cycle :  Unless specified the test sets are made for intermittent duty cycle of 5 mins ON and 10 mins OFF AC and DC combined high voltage sets are also available Please inform the kV rating, leakage current rating and also inform whether the test set is AC or AC/DC combined, at the time of placing the order.
