Ocean Enclosures Sakinaka, Mumbai, Maharashtra

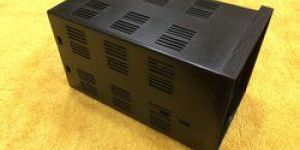

The accumulation of heat in an enclosure is potentially damaging to electrical and electronic devices. Overheating within the enclosure can shorten the lifespan of expensive components. Ocean make Ventura enclosures are designed to free flow of air in side the enclosure, which increase life of components in side the enclosure.

Pushwheel Switch/Coded Switch is a setting switch that converts the numeric value selected by turning plus and minus buttons on which numbers are written into a binary, decimal or other code using the combination of ON and OFF signals for multiple contact circuits and that outputs the resulting code. They can be on a mechanical or an electronic device. These are sometimes called digital switches, and you can see them in action on a variety of different devices. Some of them are very simple, while others are going to be quite a bit more complex.

SMPS/Laptop charger Enclosures are available with and without wall mounting clamps. These enclosures are specially designed for power supplies of cameras, these can also used for general purpose project housings, laptop charges and other SMPS chargers. Ocean make SMPS enclosures are molded in black color ABS plastic. They have rectangle holes on two sides which can be used to take cables in and out of the enclosures. SMPS Enclosures can be easily modified, cut, and drilled into with simple tools. It is light and yet quite strong and rugged. Perfect for housing medium sized projects. Dimensions: 100x50x35 (mm). 120x60x40 (mm). Can be used to enclose DC Charger, LED Drivers, General Purpose Boards, etc

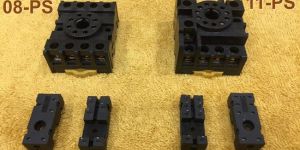

Relay sockets accept electro-mechanical switches in which the variation of current in one electric circuit controls the flow of electricity in another circuit. Relay sockets are made of metal or composite materials and available in a variety of shapes, sizes. Relay sockets differ in terms of terminal type, the number of pins per blade, and socket receptacle style. Terminals are devices that terminate a conductor. They attach to posts, studs or other conductors in order to establish an electrical connection. Typically, these connections are made using screws or by soldering wires or pins. Crimp terminals use the physical compression (deformation) of a contact wire barrel around a conductor to make an electrical and mechanical connection to the conductor. Quick connect / disconnect terminals do not require the use of tools. Most relay sockets use 5, 7, 8, 10, 11, 14, or 16 pins per blade. There are many different socket receptacle styles. Examples include octal or circular sockets, blade or lug sockets, and square or cube sockets. Miniature pin/blade sockets are often called “midgets”. PCB sockets are commonly available.

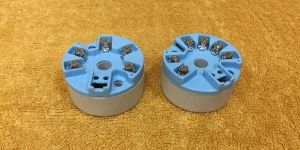

Enclosures for head mount temperature transmitter are available with 5 and 6 poles and color combination of these enclosures is grey and blue. Top plate and enclosure is molded in ABS plastic. Poles are copper +  nickel + tin plated and made from brass sheet. Screws are made from mild steel and nickle plated. Diameter of enclosure is 44.50mm and Height is  24.50mm.

ocean make hand held enclosures are molded in black color, abs plastic. These enclosures are available with and without battery compartment. Large display area of 65x52 (mm) facilitates to fix display at desired position. Display cutout designed for mounting digital/analog lcd displays, hand held enclosures have plastic stand at the back to rest on table top in tilted position, these enclosures can be also hanged on wall. Sufficient area below pcb to accommodate plugs & switches. Tilt foot bar for ergonomic desktop applications. Mounting of 70x80 (mm) membrane keypad is possible in these enclosures. Internal screw pillars for mounting pcbs. Size of enclosures is 169x82x30 (mm).

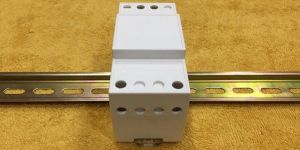

Enclosures EL series are molded in white color ABS plastic and can be mounted on 35mm din rail. 30 amps brass poles are available for these enclosures and these poles can directly soldered on PCB. We also provide dummy blocks to fill empty terminal space. Din rail clamp is molded in clear poly-carbonate plastic. These enclosures can be wall mounted by fixing additional clamp on other end. MORE INFORMATION ABOUT EL SERIES 105x47mm PCB can accommodate between top and bottom parts of enclosure with 8 poles and 100x42mm PCB can accommodate at bottom of enclosure. Same way 105x70mm PCB can accommodate between top and bottom parts of enclosure with 12 poles and 100x65mm PCB can accommodate at bottom of enclosure. For detailed drawings of PCB please download PDF given at the bottom of this page. APPLICATIONS EL series is designed to enclose electrical projects like, Earth leakage relay, Current protection relay, Analog protection relay, Voltage protection relay, Water level controller, Phase sequence relay, Automatic changeover current limiter and many more.
