Packam Controls Private Limited Goregaon East, Mumbai, Maharashtra

the sm series of indexers are servo-mechanical indexers designed for application where different output motions are required on the same table. These indexers provide highly accurate motion, with the added capability to move medium to heavy loads. Our preloaded cam & turret mechanism provides a zero-backlash solution for all your automation needs. The servo drive makes it freely-programmable. mechanism type:               globoidal arrangement of shafts:      crossed sizes:                               rt100-sm no. Stops:                        infinite (∞) since servo-driven index angle:                     freely programmable oscillating angles:              freely programmable reduction ratio:                 4:1 to 12:1 ratio option available max torque:                      450 nm indexes/minute:

Condition : New

Input Voltage : 220V, 440V

Frequency : 50/60HZ

Power Source : Electric

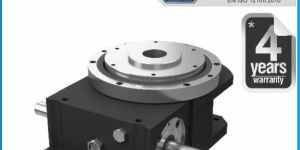

rotary indexing units with globoidal cam mechanisms are ideal for dial plate indexing. Each have stationary center through bores for routing supply lines and dual flanges for mounting a stationary dial over the indexing dial.  mechanism type:                       globoidal arrangement of shafts:               crossed sizes:                                       rt85, rt100, rt150, rt240 no. Stops:                                  (0)3 to 32 index angle:                                90° to 330° oscillating angles:                        limited possibilities max torque:                                  100 to 3400  nmindexes/minute:

packam link conveyors (lc) are the state-of-the art of precision conveyors with ultimate design for accurate linear operation for every kind of industry. These precision conveyors are designed to be a foundation for automation applications that require accurate positioning. The heart of this package is our proven packam index drive, which assures the highest quality and performance.  sizes:                              lc100, lc150, lc200 stroke length:                  100, 150, 200, 300, 400 mm index angle:                    90° to 330° max torque:                     800 to 3300 nm indexes/minute:

Number Of Flower : Conveyors

Machine Material : Steel

Certification : CE Certified

Usage : Moving Goods

Specialities : Long Life

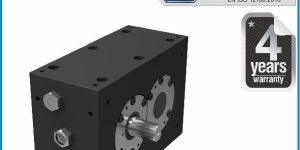

parallel indexers have the input and output shafts located parallel. They are commonly used to drive feed conveyors or packaging machinery when a line shaft needs to index. Feeding and idle times are usually configured to match the supported machinery with the line shaft or drive motor running continuously.  mechanism type:                     flat cam arrangement of shafts:             parallel sizes:                                     pc40, pc50, pc63, pc80, pc100, pc125, pc130, pc160, pc200, pc250 larger sizes available in open mechanism no. Stops:                                 1 to 8 index angle:                              90° to 330° oscillating angles:                      0° to 45° max torque:                               9 to 6200 nm indexes/minute:

hd type indexers are very accurate and reliable rotary tables suitable for heavy duty applications. The robust and compact design provides a big dial plate and a large center hole.  mechanism type:            globoidal arrangement of shafts:     crossed sizes:                             hd190, hd265, hd315 no. Stops:                      (0)1 to 32 index angle:                   90° to 330° oscillating angles:           0° to 150° max torque:                    900 to 18300 nm indexes/minute:

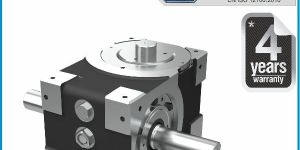

right angle indexers are typically used for continuously running applications with cams designed to match the indexing and idle times without stopping the motor. These are versatile units suitable for a wide range of applications. mechanism type:                          globoidal arrangement of shafts:                  crossed sizes:                                           gc50, gc80, gc95, gc110, gc140, gc150, gc180, gc200, gc250 larger sizes available in open mechanism no. Stops:                                    (0)1 to 32 index angle:                                 90° to 330° oscillating angles:                         0° to 150° max torque:                                  25 to 8500 nm indexes/minute:
