Pci Analytics Pvt. Ltd. Bhandup West, Mumbai, Maharashtra

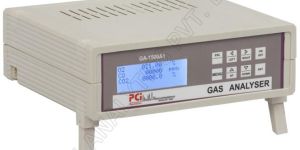

Features : Sensor: Electrochemical Type Range: 0 to 5000 ppm 0 to 30%, 0 to 100% Size: 96 x 192mm Maximum Operating Temp.: Atmosphere ±10°C Maximum Operating Pressure: 0.5 Kgcm² Digital Display with 2 ppm or 0.01% Resolution Long life maintenance free sensor Easy to calibrate by key panel Lowhigh set point Multi gas analyser (CO + O2 + CO2 ) also available

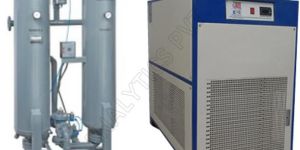

Standard compressed air enters to the Air to Air heat exchange, where it is pre cooled by out going cold dry air. Highly effective pre cooler reduces the temperature considerably, and enable to use smaller & economical refrigeration system. Then the pre cooled, relatively low temperature compressed air enters to Air to Refrigerant heat exchanger, where it is cooled down to +3°C (Pressure Dew Point). At this temperature, moisture in vapour form condensed to liquid form, and separated from the compressed air by moisture separator and discharged to drain port through automatic drain valve. The cold dry compresses air passes back to Air to Air Heat Exchanger, and gain temperature by exchanging heat with incoming warm air. The dry air coming out from the dryer is ready to use for instrumentation and process air applications.

(AIM) is a joint venture between Anest Iwata, Japan, AIM's oil free compressor deployed patented & proven critical maintenance free technology. AIM's is also pioneer in manufacturing scroll type oil free air compressor.

Features: * Dual display of gas concentration & set point unit of the gas * Plug in smart field proven sensor * Programmable linear 4-20mA 20-4mA OP with respect to gas concentration * Easy one man calibration at site * Optional RS-485 with modbus RTU protocol * Suitable in hazardous area ATEX, CCOE, CMRI & IP-65 approved.

Specifications: * Fully electronic * Model: PCI-GM4 - for four gases, PCI-GM8 - for eight gases * Dual colour leds to show the status of cylinder (depend on set point kept in contact guage) * Pressure set point (user adjustable) * Green light indicates alarm with sound * Red light indicates fault (i.e. not replace with filled cylinder) not removed but attended * External hooter or light can be connected * Acrylic body enclosure * Single or multiple gauge connection provision * Power supply 230V, 50Hz * Current flow through contact gauge sensor is in milliamp so no chance of sparking * Very low power consumption less than 50w

Air Compressor Air Moisture Filter (ManualAuto) * AAs requires compressed Air supply of high flow rate which can be supplied by Air compressor which consist of 20 liter storage tank, pressure switch, safety valve, gauge & outlet valve etc. * Oilfree as well as Noiseless (Oil based) compressor are also available * Moisture free Air is must for AAS. Filter of 5µ & 0.1µ which is to be attached after air compressor for the removal of Moisture, oil, dust and mist particles. * There are two types of Air Filters available, manual drain & automatic drain.

Pci manufacturers various kinds of regulators. Pci regulators have been designed to meet the demand of high purity corrosion resistance product specially suited for low level ppm moisture * two types of cylinder regulators available brass chrome plated body with ss diaphragm and ss body with ss diaphragm. * regulator consist of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. * high pressure piston type regulator & regulators for corrosive gases like ammonia, clorine, etc. Are also available. * inlet pressure range: 0 - 240 kgcm² * outlet pressure range: 0 - 14 kgcm² in diaphragm type * outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kgcm² in piston type

High pressure mechanical- automatic gas manifold is used for two cylinder system where automatically.

* cylinder trolley in ms powder coated 4 wheel for smooth & safe operation. * cylinder trolley available for single & two cylinder. * cylinder mounting brackets are used to mount the cylinder on wall to avoid down fall of cylinder. * mounting bracket available with wall and floor mounting. * gas sampling bottle is used for storing transporting gas sample at high & low pressure. Available in 250ml, 500ml, 1000ml & above * air header is used for the distribution of compress air or any gas with one inlet various outlet with needle ball valve.

Electron (digital) mechanical automatic gas manifold system * two types of automatic change over system available, low pressure electronic (digital) automatic change over & high pressure mechanical automatic * low pressure digital automatic change over working with pressure sensor & solenoid valve. high pressure manual gas manifold system * available in brass chrome plated & ss316 body for inert & corrosive gas. * can be connected with one or more than one cylinder.

* Tubing are available in different sizes like 12", 14", 18", 116" * Tubing available in different MOC like copper, S.S., teflon, nylon. * Casing capping are used to cover the above tubing & to maintain the esthetic look. * Three types casing capping available, M.S. powder coated, alluminium powder coated & PVC casing capping.

Inline micron filters are used to remove dust particles from respective gases. Micron filter (ss body) consist of ss disc (mesh) of 5μ - 10μ. Gas purification panel removes impurities which are in vapours (gases) form. Cylinders being m.s. Body has the tendency to illute dust particles, these particles may come in the line and may go to gas chromatograph. To avoid this particles micron filters are very essential.

Salient Features & Benefits: * Deliver Ultra High Pure (UHP) Grade Gases * Compact Design, Wall Mounted, Powder Coated * Filters are easily detachable * Suitable for 10kgcm² inlet pressure & 7 kgcm² outlet pressure * Panel for LC-MS-MS & other applications are also available * Reduce baseline noise, drift problems, etc. * Increase column life, GC detectors & reduces flame problems * Improve reproducibility * Save costly gases through toggle valves & gas distribution panel.

Salient features: * no lubrication required * noiseless performance * absolutely portable * totally oil-free construction * practically maintenance-free * all parts made from special graded aluminum die cast material for light weight and good strength * diaphragms are made of special 2-ply nylon reinforced neophrene rubber * special diaphragms available (teflon viton etc.) * value made of ss 316 material * built-in micro suction filter * extra large bearings for trouble-free and smooth running * pumps available with single as well as 3-phase motors * pumps available with flame proof motor.

* Sterility Test Unit 47mm Stainless Steel (3 Branch Sterility) * Sterility Test Unit 47mm Stainless Steel (6 Branch Sterility * Oil Free Vacuum Pump suitable for above Sterility Model - PCI-75-S Max. Flow - 45 LPM, Vacuum - 27 Hg (680 mm) Max. Pressure - 55 PSig, 14 HP

Technical Specifications : * Flow Range : DFM-01 : 1 mlmin. to 50 mlmin. with least count of 0.1 mlmin DFM-02 : 5 mlmin. to 500 mlmin. with least count of 1 mlmin DFM-03 : 200 mlmin. to 2000 mlmin. with least count of 1 mlmin DFM-04 : 1 mlmin. to 500 mlmin. with least count of 0.1 mlmin (auto range) DFM-05 : 1 mlmin. to 1000 mlmin. with least count of 0.1 mlmin (auto range) DFM-06 : 10 mlmin. to 400 mlmin. with least count of 1 mlmin (auto range) * Accuracy : ±2% of Reading, ±1 Digit * Power Supply : 230 V AC, 50 Hz, 10W * Resolution : 0.1 mlmin. & 1 mlmin * Dimensions : DFM- 01 : 27 cm (H) x 13 cm (W) x 10 cm (D) DFM- 02 : 27 cm (H) x 13 cm (W) x 10 cm (D)

Pci make pressure regulation system is the most safe method of using flammable & corrosive gases as it has built-in safety shut off arrangement with 100% redundant safety measures. Additional safety interlocks can be incorporated as per process requirements. Provision of nitrogen purging for safe operation.

* nitrogen generator high capacity for plant production purging reactors etc. * complete system skid mounting with inter connection piping * complete system with compressor, dryer, receiver, analyzer, automatic change over system from generator vs cylinder etc. * flow range from 10 nm³ to 100 nm³ as per selection of model * purity ranging from 95% to 99.99% as per selection of model * higher capacity other than mansion are also available

Hydrogen is produced in the PGH Series Hydrogen Generators by the most advanced electrolytic membrane technology. The application of voltage across the electrolyte results in hydrolysis, breaking down the water molecule into hydrogen and oxygen gas, which are separated by the gas permeable membrane. Once separated, the hydrogen gas goes through a series of purification and moisture removal systems to achieve the desired level of purity while the oxygen gas is being discharged into the atmosphere. Electrolytic membrane technology has its advantages over alternative hydrogen generating techniques as it is clean, requires less maintenance and there is no need to store chemicals to maintain operation. Only pure double distilled water (initially some KOH), is required to provide trouble free long term operation. Membrane separation is also less time consuming as only water is needed for routine maintenance.

We are offering best vials caps septas.
