Pharmaceutical Machines Dealers in Sakinaka, Mumbai

STANDARD MODEL, HOPPER CAPACITY 34 LTRS. THE BODY OF THE MACHINE IS "L" SHAPED STRUCTURE SCREEN AREA 12.6" x 14.5" DRUM SIZE 5.4" DIA x 14.4" LENGTH OUTPUT 30 TO 200 Kgshr (APP. FOR DAMP. MATERIALS) 200 TO 500 Kgshr (APP FOR DRY MATERIALS) OUTPUT DEPENDS ON THE CHARACTERISTIC OF PARTICLE PRODUCT AND THE REDUCTIONS REQUIRED IN SIZE. POWER SUPPLY - 2HP, 1440 RPM 440 VOLTS 3 PHASE 50 CYCLES A.C. NET WEIGHT 250 Kgs. APPROX GROSS WEIGH 400 Kgs APPROX OVERALL DIMENSION - 32" x 18" x 49" (H) COMPACT & STURDY UNIT CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

Manufactured using high-grade basic material and advanced techniques, our Double Cone Blender is high in demand in the market. Tested using the latest techniques, our Double Cone Blender is free from all kinds of defects. We are an experienced name, which is engaged in manufacturing and supplying Double Cone Blender. One can place retail as well as bulk orders for Double Cone Blender with us. Highlights : Efficient & versatile mixer Ideal for mixing powders & homogenous lubrication of granules M.O.C.: S.S 304 / 316 / 3161 5.5. Baffles are provided Safety guards provided with limit switch interlocked to motor Capacity 20 ltrs. To 5000 liters Automatic loading & unloading facilities available (option) CGMP model with documentation (IQ, DQ, PQ, 0Q) as option

Oscillating granulator Oscillating Granulator has one rotor with five edges, which oscillate on horizontal axis. There is one half round sieve mounted at the bottom of the rotor. Product is charged from the top through in feed hopper and material falls on the rotor lades. The particles are broken by a set of oscillating bars arranged in cylindrical form over a screen of suitable mesh. Due to the sharp edges on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening, Does not generate heat or dust, ideal for sticky heatsensitive products.Output varies from 50 to 300 kg per hour depending on product and screen.

• Suitable for Dry Granulation / Pulversing / Shredding & Chopping of Materials. • Multi Speed Drive for Various Product Grading. • Easy Dismantling & Cleaning. • Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size. • Easy Maneuverability with the help of Castor Wheels. • Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades. • Rotor Speed - 750 / 1500 / 2100 / 3000 RPM Approx. MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber.     Technical Specifications Drive Motor : 3HP / 1440 rpm / 3 Phase / 440V / AC. D.O.L. starter provided with reversible switch. Rotor RPM : 750 / 1400 / 2200 / 2800 (approximate). Blades 12 Nos. with Knife & Impact Edges & 02 Nos. Scraper Blades. Output : Depending upon the products and the reduction required in sizes. Foundation not required. Castor wheel mounted base.

We are offering strip packing machine. Packs a wide range of products in easily dispensable strips with economy and speed. With capacity up to 2400 strips per minute, its automatic trouble free operation meets exacting marketing market standards. For pharmaceuticals, coated and uncoated tablets, hard gelatin capsules, capsule, shape coated and uncoated tablets, confectionary products like lozenges, toffees and chewing gum, plastic, rubber and engineering products, buttons, pins, electronic components.

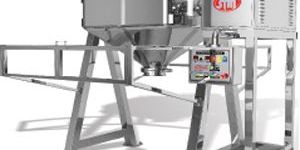

SUITABLE FOR QUICK AND EFFICIENT MIXING FOR A COMPLETE RANGE OF POWDERS, PARTICULATE AND GRANULAR MATERIALS. HOMOGENEOUS MIX. GENTLE TUMBLING ACTION WITH A SPECIALLY DESIGNED BAFFLE. EASY CHARGING OF MATERIALS THROUGH S.S. BINS. CAPACITY - 20 LTRS. TO 4000 LTRS. MOC - S.S. 304 316 316 L SHAPE OF CONTAINER - POLYGON SHAPED FRUSTUM. S.S. OCTAGON TYPE BODY WITH RECTANGULAR CENTRAL PORTION TOP AND CIRCULAR BOTTOM WITH A BUTTERFLY VALVE. CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION

  The process of compaction is used to increase the bulk density of fine powder particles. This is achieved by passing them between closely held rollers to form solid compact sheet. The compaction process can be affected by roll surface and diameter, peripheral speed, separating force or pressure capabilities, feed screw and basic compaction characteristics of the material being used. Powder material properties can be improved by addition of a suitable binder, which facilitates better bonding between particles and keeps the production of fines to the minimum. Salient Features : Design conformance to cGMP Very compact design available in Plain Model Feeder Screw is driven through AC variable drive & Safety clutch provided between gearbox and feed screw. Rolls drive through twin shaft gearbox with speed drive unit coupled to it using coupling, which ensures synchronization of the rolls with s steady torque loading. Pre-densifier screw comprises of cylindrical or conical shape, which is well polished and made of AISI SS-304 quality material. Compacting rolls sleeves are made out of Alloy steel, hardened to 55 HRC approximately and are keyed in to shafts and thus protected against axial slipping by thrust plates and bolts. The feed screw assembly can be lifted by hand-operated hydraulic pump. This facilitates ease in cleaning. Scrapper assembly also designed to dismantle for ease of cleaning. Pre-compression chamber guides the powder without any slippage or leakage. Control panel with swing arm consisting of ON/OFF Push Buttons, Forward/Reverse switch, Ammeter, RPM indicator for roll and feed screw, speed regulator for feed screw and emergency stop with all safety measures are provided. Extra power control panel is fitted on the machine with main switch. Machine supplied with corrugated roll surface as Standard.    Why to compact? To increase bulk density To achieve uniform particle sizes To improve solution and dispersion rates To achieve better granulation of sieve analysis To reduce process cost To control the production of dust To produce uniform blends or mixture                 Optional Features : Water jacketed design for extremely heat sensitive products SS 316 made pre-densifier screw Flame proof motor Roll Surface – smooth / knurled and briquetted.

Catering to the requirements of the pharmaceutical industry, we offer Liquid Manufacturing Plant. Available in various batch capacities from 500 to 10,000 liters it is extensively used for the preparation of pharmaceutical liquid oral preparation. Sturdy in construction the plant is provided with main syrup manufacturing vessel, sugar preparation vessel and storage vessel. For sugar filtration, it is provided with sparkler housing filter and sparkler filters for final filtration.

Most suitable for Dry Powder Mixing of a small quantity active ingredient with large quantity of powder. A quantity relationship between components, higher than 1:100 can be mixed, effectively. Most commonly used for lubrication process in tableting department. Due to the shape of blender. Powder slides on the sides and mixes well because of very low RPM. Therefore there is no impact on the powder / granules and it mixes well. This machine is basically a container, which tumbles around its own axis driven by gear box and motor. Loading and Unloading is easy. Drum arrangement along with conical hopper arrangement is available. Models available from capacity 5 Ltrs. to 6000 ltrs. (Higher capacities on request) Vacuum transfer system is available (optional)

Most suitable for dry granulation provided with hexagonal rotor having oscillating movements.1 No. Stainless Steel sieve is supplied with machine that can be changed to any desired mesh by quick opening and locking arrangement.

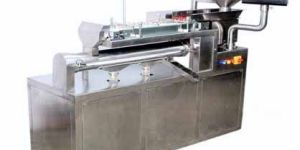

Capsule Inspection cum Polishing Machine       Two Stages Automatic Capsule Inspection cum Polishing Machine   We are offering to our clients, two stages automatic (capsule Inspection cum polishing machine), which are equipped with feeding section, inspection section and polishing section. The details about the capsule polishing machine, tablet inspection machine are as follows:  FEEDING SECTION: This section consists of stainless Steel Hopper, a Stainless Steel Vibrator and a Stainless Steel Drug Powder Collector. Due to vibration as the capsules pass through the vibrator some amount of drug powder gets collected in the Stainless Steel collector.INSPECTION SECTION: This section consists of conveyor belt with variable speed drive and lighting from above to inspect the capsules. The capsules move on the conveyor belt while moving they revolve around the axis due to the angular guides. The defective capsules can be sorted out by the operator through visual inspection. The defective capsules sorted can be removed manually by pluckers or by hand. POLISHING SECTION: This section consists of two Stainless Steel chambers fitted with a filter cloth; a revolving variable speed spiral nylon brush, stainless steel powder collector and vacuum dust collector. The capsules travel from one end of the brush to the other end. During this travel they are subjected to roll in between the Nylon bristles and sucked by the Dust Collector (Since the capsules are polished twice i.e. in two chambers the powder settled at the edge of the capsules also get removed). The capsules coming out of the chute are throughly polished, glossy and clean. Output: 40,000 TO 80,000 Capsules per hour Drive Motors: Inspection section: 1/2 HP Polishing Section: 1 HP Vibrator: 230 V. SINGLE PHASE   Width of inspection belt: 6" Space Required: 170 x 90 x 170 (HT} CMS. No. Of Operators: 1 No. Of Polishing Chambers: 2

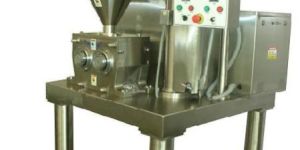

We are considered as one of prominent Roll Compactor Manufacturers in the national and international markets. Our Roll Compactor is fabricated from high grade raw materials that offer high strength to the structure. Description : Our Roll Compactor is used for densification and granulation of powder formulated in Pharmaceutical Industry, Food Industry, Chemical Industry, and so forth. It is easy to clean thereby easily gets ready for product change over. Subsequently, it also prevents contamination and other side effects of blending products. We provide Roll Compactor in two models that is plain as well as water jacketed. Our water jacketed model is aptly designed for heat sensitive products that can be compressed without distorting their physical and chemical properties. Herein, hot, cold water, any other sort of liquid, or steam at low pressure can be distributed for absorbing or ejecting heating from a product. The jacketing is provided in process sensitive area like bowls hopper, rolls, and so on. It ensures quick release of coupling through non-return valve that prevents spillage of water by hopper and bowl for cleaning and sterilization. Salient Features : RDRC 200/50 & 200/75 GMP modelEnclosed with SS304 covering and frame work which assure easy cleaningCompact designAll indicators and controls of the compactor are permanently built-in such as on/off feeds screw, on/off rolls, ammeters for rolls, main switch forward, reverse switch, feed screw, emergency stop, etcRolls move by twin shaft gear box consists of speed drive unit that is further coupled to it through using a flexible coupling that assure of synchronized roll having steady torque loadingScrew is compelled by variable drive safety sleeping clutch inserted in between the gear box and feed screwFeed screw and main roll drives are electrically interconnectedCheck plates ensure sealing of roll and feeding deviceTwo piece assemblies of compacting head assure for easy dismantlingParts exposed to wear are fabricated from hardened steelPre-Compression chamber helps the powder to avoid any leakagePre-densifier screw is in conical or cylinder shape that is made of AISI SS-304 quality materialThe densifier is perfectly polishedRoll sleeves are keyed into shaft which prevent against axial slipping through bolts and thrust platesScrapper Assembly can be releasedCompacting rolls sleeves are fabricated from tool steel which is hardened to 55 HRC approx

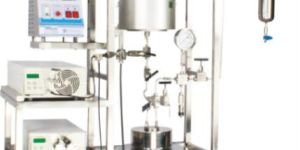

Some of the features of supercritical fluid extraction supercritical fluid extraction (sfe) system uses supercritical carbondioxide (co2) as solvent instead of any organic solvent. 100 ml to 5 ltrs. Volume pressures upto 350 bar & temperatures upto 200°c available in material of constructions (moc) ss-316

Catering to the requirements of the pharmaceutical industry, we offer Pharmaceutical Liquid Syrup Manufacturing Plant in India Available in various batch capacities from 500 to 10,000 liters. It is extensively used for the preparation of pharmaceutical liquid oral preparation. Sturdy in construction the plant is provided with main syrup manufacturing vessel, sugar preparation vessel and storage vessel. For sugar filtration, it is provided with sparkler housing filter and sparkler filters for final filtration. FEATURES The plant is designed as per the CGMP and FDA guidelines. Completely closed system as per GMP requirements. Process control for individual items at each level of production. Integrated system makes it easy to operate and clean. All vessels are constructed out of S.S. 316 L quality as conforms to the GMP guidelines.

Supplier & Manufacturer of Bag Sealer & Pneumatic Bag Sealer. Our product range also comprises of Heat Shrink Packaging Machine, Automatic Flow Wrap Machine and Blow Fill MachineThis pneumatic bag sealer is specially manufactured for people who have space restriction as it has been made compact and can easily be carried any where you like. Impulse sealer it has an integrated circuit for not over heating and the poly will be sealed properly seal any packing material. pneumatic in operation so you will get even pressure every time for sealing. We can manufacture machine as per customers requirement.

WebFlex Machines manufactures Pharma foil printing Machine which is used for printing on Labels, Aluminum foil, Polyester, BOPP, Paper, PVC, Laminated Foil, etc. The composition of Machine is of Unwind Trolley Unit with Web Aligners, Printing Stations (1 to 8 colours), Rewinding units, Rubber Roll Impressions system operated pneumatically. We have installed motors, which has been helpful in registration of colors during printing. There are blowers and heaters for each printing stations, ink circulation pumps to carry out smooth printing operation till the final output is delivered. We provide tension control clutch, brake system and to ensure good quality printing we have web video inspection which helps to keep check on printing output. The Optional Split Unit System helps to carry out two different printing jobs at the same time.

Blister Sealing Machine, Hydraulic Blister Cutting Machin

SPECIAL FEATURES * Suitable for dry mixing of products in granule form. * Easy for loading and unloading of material. * Easy for cleaning. * All contact parts are made out of SS 304 SS 316 quality material, as per customer requirement.

To blending and mixing of Dry Powders Granules and Crystals like Colors, Pigments, Minerals, Dyes, Flour, Grain, Ceramics, Detergents and other food, Pharmaceuticals & Chemicals powders.All contact parts are made out of 304 316 316 L quality material as required by the customer. One shaft with fixed baffle inside the blender.

MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber. SALIENT FEATURES : • Suitable for Dry Granulation / Pulversing / Shredding & Chopping of Materials. • Multi Speed Drive for Various Product Grading. • Easy Dismantling & Cleaning. • Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size. • Easy Maneuverability with the help of Castor Wheels. • Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades. •Rotor Speed - 750 / 1500 / 2100 / 3000 RPM Approx.

This machine gives high output with less percentage of fines and has the salient features like Robust Simple and Compact design, Easy installation in production line, Uniform granules, Maintenance free and can be attached with Vacuum loading and discharge arrangement or Gravity flow system. The granulating chamber and internal parts are totally washable from inside. The inner surfaces are mirror polished to prevent adherence of the product and facilitate cleaning. Sliding rails and fast fixing devices allow easy mounting and dismantling of the accessories.
