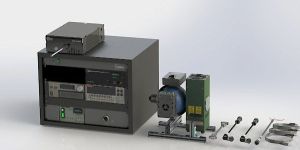

Measure absolute spectral flux (wnm) and power (w) of UV LED lamps down to UV-C range (200 nm) Known NIST traceable uncertainties for complete measurement range of 200 nm - 980 nm NIST traceable spectral flux calibration standards supplied with each system State-of-the-art stray light correction routine for spectrometers achieves low noise and high measurement accuracy down to 200 nm Wide system measurement range allows user to measure VIS and NIR LEDs (200 nm - 980 nm)

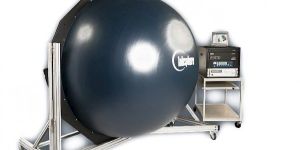

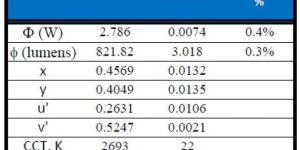

Have confidence in every Lamp and Luminaire you measure in a Labsphere illumia®Plus light measurement system. Uncertainty is inherent in every measurement. To better understand the value of a measurement, analyzing the uncertainty is required and instills confidence in the measured values.

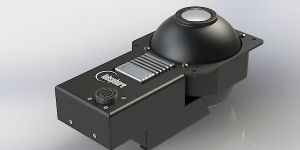

Labsphere’s TruLume Solid State Luminance (SSL) and Chromaticity Standards are highly stable and accurate cool white solid state integrating sphere luminance and color standards that enables accurate and reproducible calibra

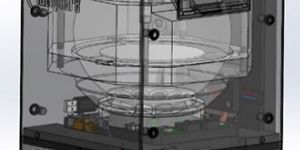

Labsphere is expanding the advanced tunable technology in our CCS camera calibration systems. Tunable spectral radiance sources tailored to meet your specific sensor calibration requirements are now available.

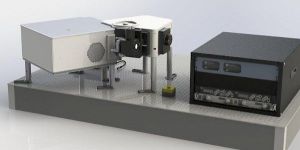

Labsphere’s TruLume Spectral IrradianceRadiance Source Standard provides control of known levels of uniform monochromatic light over the spectral sensitivity range of silicon-based optical sensors for test and characterization imaging sensors for spectral responsivity and quantum efficiency, linearity, bad pixel and clusters of image sensors.

PhotonLAB is an advanced software tool that automates the setup, execution, data collection and results analysis for industry standard performance testing of UV, Visible, NIR and SWIR systems. PhotonLAB is based on the Labsphere API (LSAPI) and hardware infrastructure. The software controls the system assets and the user may take data at designated settings. Once the data is collected, the system then uses a “virtual” frame grabber to run tests on the images and return results.

System lamps have been operated for more than 50 hours Uniform source system is more than two years old System has operated or been stored in dusty environment Quality Management System mandates annual calibrations on critical measurement equipment Monitor detector disagrees with the original calibration

LPMS Laser Power Measurement Systems Collecting the total radiant power emitted by highly divergent or collimated sources.

Test reports produced by following IESNA LM-79 or other equivalent standards not only make LED products comply with energy efficient lighting regulations but also provide confidence in quality of the product.

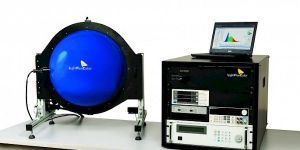

LightFluxColor Measurement Systems are the most affordable and accurate systems for testing LED lighting products per the IESNA LM-79 standard and equivalent global guidelines.

Give you and your business a competitive advantage Understand the jargon and metrics used to express light and lighting Learn best practices to meet national requirements and IES Test and Measurement Guidelines Understand the equipment and functions needed to perform metrology of light sources Gain hands-on experience making accurate measurements of flux, color and intensity Properly express the performance of your products

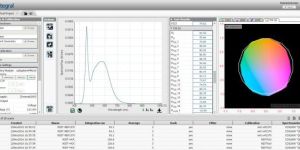

Integral Software redefines the way light is measured and revolutionizes how lighting measurements and control are synthesized into useful information. The innovative HTML5-based application software is for general lighting measurement control, test and reporting. The Application Program Interface options were developed to work with your existing business software and product line integration.

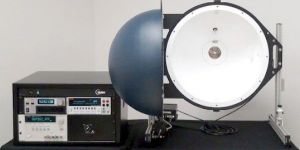

Thermal variances at the junction can affect an LED’s performance in terms of color, output, life expectancy, luminous efficacy, and linearity performance. Labsphere’s illumia®Pro systems allow users to quickly and accurately test for thermal variances of the device under test.

Add-on electronics modules increase functionality and simplify compliance with IESNA LM-79, LM-82, and equivalent global measurement guidelines and standards. Systems are delivered with Labsphere’s Integral software platform; an innovative HTML5-based application with robust reporting and options Application Program Interfaces to work with your existing business software. Automated calibration and LM-79 stabilization routines ensure ease-of-used and increased efficiency. New integrating sphere design allows for hot-swap of DUTs for shorter measurement scan times and less down time

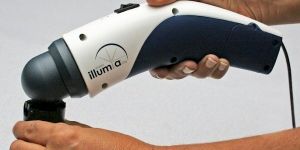

LED manufacturers and luminaire designers require a quick, portable device for complete spectral flux analysis. Reliable measurements of small LEDs, fiber outputs, and other small sources has usually meant compromising on accuracy or speed. As the leader in the light measurement field, Labsphere has designed a sphere-based portable solution including self-absorption correction that is both reliable and affordable.

The HLMS-200P is an easy to use, precision photometric instrument designed for use in the field, laboratory or on the production floor. FEATURES NIST Traceable Calibration Spectral Correction Auto Ranging Auto Zero Ratio DisplayHold Function Automatic Switch Off 4 Digit LCD Display Low Battery Indicator Optional Bench Mount MEASURE

Modular, design driven systems configured for common testing tasks with flexible options to meet your unique needs and budget Scalable, rugged solutions for R&D, production or field applications Unparalleled built-in characterization and performance A flexible foundation to meet the challenges for rapidly changing remote sensing needs LabVIEW® and intelligent components for active system configuration

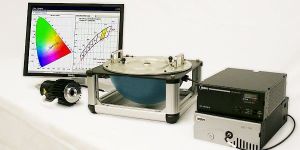

Designed to measure forward emitting lamps, LEDs, and board-mounted, heat-sinked LED light engines for Solid State Lighting (SSL), the HalfMoon Systems feature a Spectraflect® coated hemisphere capped with an interior mirrored surface. This mirrored surface creates a virtual integrating sphere within the interior.

Facilitate accurate spectroradiometric, photometric and colorimetric characterization meeting ANSINEMA FL1 standard requirements for run time and light output measurements.

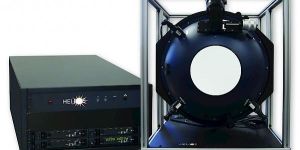

Collimated Optics, Software and Uniform Source Systems Uniform Sources Target Wheels Collimators Blackbodies IRWindows™4 Software

Labsphere’s TruLume Tunable Ambient Light Sensor Calibration Sources (ALS) simplify and enhance testing of ambient sensors by eliminating multiple steps and sources in the spectral response optimization and correction process, with a selection of uniform standard illuminants and colors to choose from one compact and robust system.
