    Pipe Friction Apparatus

    65,000 / Piece

    • MOQ1 Piece
    • Country of OriginIndia
    • Total Carbohydrate3 Years
    • Number Of FlowerEducational Trainer
    • FeatureCorrosion Proof,Eco Friendly,Excellent Quality,Highly Durable
    • CertificationCE Certified
    • Brand NameSci-tech

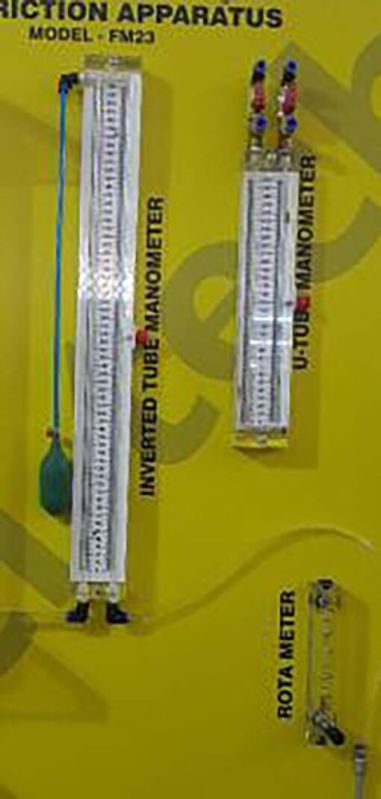

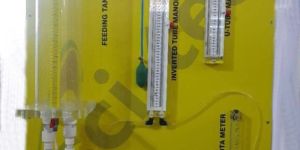

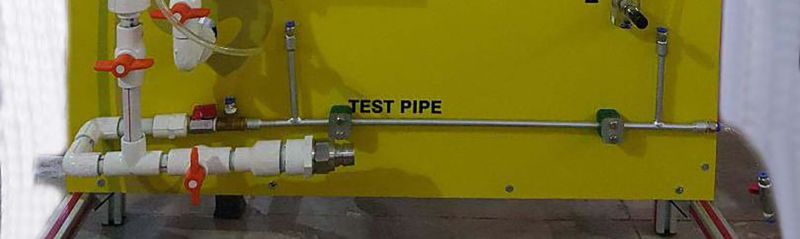

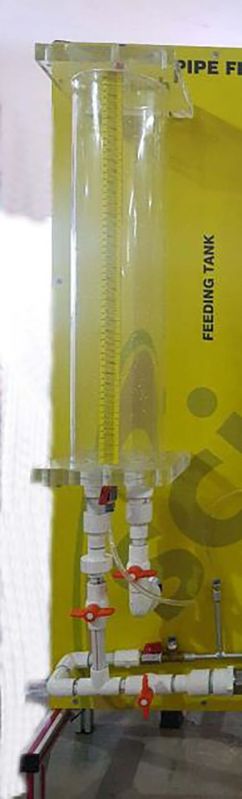

    • Study of pipe friction and hence the pressure loss in pipes is important in view of the pumping power requirements in any pipe system. Sci-tech Pipe Friction Apparatus Model FM 23 is an experimental setup necessary for any Fluid Mechanics and Hydraulics Laboratory of an educational institution.   Sci-tech Pipe Friction Apparatus Model FM 23 has been designed to enable students to determine the friction factor in the pipe flow and to study the effect of change in flow velocity on pipe friction. The Laminar and turbulent flow regimes can be obtained by varying the flow velocity and hence the flow Reynolds number. The apparatus consists of a horizontal test pipe with static pressure tapings at the upstream and downstream ends to measure head loss due to friction to determine the friction factor. Extra pipe lengths are provided at the inlet and exit to allow the flow to become fully developed and to damp out the flow disturbance originating from the valves and fittings. The test pipe is mounted on a support frame and there is a provision for leveling. Water is supplied from the hydraulic bench (for higher flow rates) and the constant head feeding tank (for lower flow rates). Pressure drop along the test pipe length is measured using the U-tube mercury manometer or the pressurized water manometer depending upon the flow velocity. These manometers are mounted on a display panel with calibrated scales. The flow rate and hence the velocity though the test pipe is controlled by a regulation valve at the exit and the flow rate is measured by the flow meter or the measuring tank of the hydraulic bench. The friction factor is determined from the measured pressure loss and flow velocity. Experiments can be conducted at various flow velocities or Reynolds numbers to obtain friction factors in laminar or turbulent flow regimes. The complete unit is manufactured from corrosion resistant materials. The FM100 Hydraulic Bench or any other standard hydraulic bench models can be used to supply water. Computer Based Learning Software is included to enable students understand and conduct experiments, tabulate results and plot graphs. The Sci-tech Pipe Friction Apparatus Demonstration Model FM 23 is an important experimental set-up for any Fluid Mechanics and Hydraulics Laboratory of an educational institution.   Important Features and Specifications: 1.     Test pipe, stainless steel, 3mm bore, 650mm long with two static pressure taps at 500mm apart.   2. Feeding tank, capacity: 10 liters, constant water head: 600mm length & 140mm diameter ID. 3. Mercury U-tube manometer, range: 200mm. 4. Pressurized water manometer, range: 400mm WC. 5. Flow meter, range: 2 Lpm with needle valve to regulate flow rate. 6. Ancillaries include measuring cylinder (5 liter capacity), hand pump and a sample of test pipe (100mm long).   7. Portable digital manometer (Optional) Options:  1. A self contained unit of the Pipe Friction Apparatus  mounted on a mobile platform and with a flow controlled closed circuit water circulation unit consisting of centrifugal pump, flow meter, corrosion resistant sheet metal measuring tank and a sump tank will be supplied on request. 2. A digital pressure meter can be supplied as an alternative to the mercury U-tube manometer on request.   List of Experiments:  1. Familiarization with pressure measurements and the working of U-tube manometer. 2. Study of loss of head due to friction in a circular pipe at various mean flow velocities. 3. Study of friction factors in laminar and turbulent flow regimes. 4. Demonstration of the law of pipe friction resistance in laminar to turbulent flow regimes. 5. Establishment of critical Reynolds number.   6. Comparison of experimental results of friction factor – Reynolds number relationship with the well-known Moody’s diagram.
    ...more
  • Pipe Friction Recirculating Apparatus

    Pipe Friction Recirculating Apparatus

    27,000 / Piece

    • Country of OriginMade in India
    • MaterialMild Steel
    • FeaturesMeasurement of head loss in the pipes at various flow rates, Testing of two pipes of different diameters.
    • PhaseSingle Phase
  • Pipe Friction Apparatus

    Pipe Friction Apparatus

    Get Price Quote

    The unit consist of two pipes of different diameter. A collect tank is provided to measure the actual discharge. FEATURES Testing of two pipes of different diameters. Measurement of head loss in the pipes at various flow rates. Calculation of pipe friction at various flow rates.   SPECIFICATIONS Sump Tank – 900 x 400 x 400 mm with FRP lining Measuring Tank – 300 x 400 x 300 mm with FRP lining Three pipes of 28 mm, 21 mm.& 17mm. diameter G.I. Pipe. Length of pipe 1 m. Flow control valve. Differential manometer – 400 mm Stop watch.
    ...more
  • Pipe Fiction

    Pipe Fiction

    Get Price Quote

    • Brand NameTAGLab

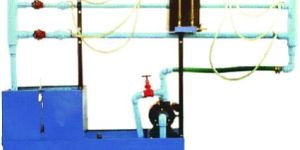

    • We are offering pipe fiction. Determine losses due to friction in pipes of different diameter complete re - circulation type equipment compact setup as compared to conventional setup pipes of different diameter are connected to a common manifold with control valves for controlling the flow open channel is supported on a sturdy m.s. Stand & entire setup is mounted on a rigid m.s. Frame flexible hose pipes are used pressure tappings are provided to measure pressure loss to prevent rusting, tanks are made up of m.s. Sheet with powder coating.
