Pramod Engineering Andheri East, Mumbai, Maharashtra

Dial Size : 8", 10"

Scale Range : 0 - 150psi, 200psi

Connection : Bottom with compressor air inlet & out let

Specialties : Provided with bulb holder

Dial Size : 21/2"

Scale Range : 0 - 150psi

Specialties : Provided with protective rubber cover & soft pouch

Dial Size : 11/2", 2"

Scale Range : 0 - 100psi

Specialties : 2" gauge is provided with pause pointer arrangement, compact in size. Pocket size are provided with Aucsilary attachment of flexible 4mm PU hoze connection. Suitable for spoke supported rims of motor cycles & Bikes in soft zipper pouch.

Dial Size : 11/2", 2", 21/2", 4", 6", 10"

Scale Range : Refer Table

Connection : Refer Table

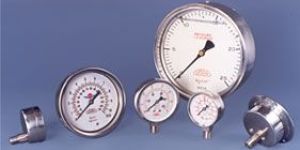

Usage : Can be used for fluids, gases and atmosphere which is non-corrosive to 316 Stainless Steel

Application : Spring loaded gauges are designed for high pulsative pressure & ideal for pesticide agricultural pumps, water pumps

We are offering refrigeration gauges.

Application : For measuring pressure and saturation temperatures of refrigerants such as F-12, F-22, others non-corrosive to brass.

Connection : 1/8NPT in 2.5"

Feature : -

Designed to indicate maximum pressure, this pointer is carried by indicating pointer to the maximum pressure point, where in remains when pressure drops. If new reading exceeds the previous high, this pointer is carried to the new reading. A simple knob allows resetting of the maximum pointer at any time

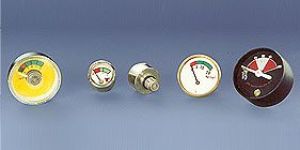

Application : Suitable for dry powder, Water-foam Fire Extinguishers

Connection : 1/8 BSP/NPT, M-10

Feature : Compact in size, Shok proof, Water proof, corrosion proof provided with sinter bronze filter for dry type extinguisher

Application : For soda maker machines

Connection : 1/4” BSP

Feature : -

Application : Used for calibration of industrial quality pressure gauges and other devices of similar accuracy or accurate pressure measurement of process.

Connection : 3/8" BSP OR NPT 1/2 " BSP OR NPT

Feature : Highly precise movement and dial gives accurate reading.Offered with comfortable carry bag for easy portability

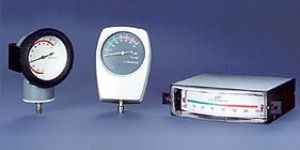

Dial Size : Circular type 2”, 4”, 6” Strip type edgewise gauge 4” x 11/4”

Scale Range : 0 - 50cmH2O to 0 - 400cmH2O 0 to -100cmH2O vacuum and compound.

Connection : Nozzle for tube of 4mm id or threaded connection

Usage : Ideal for Ventilators, Endotracheal and tracheal cuff baloonig, baby incubators, cpap

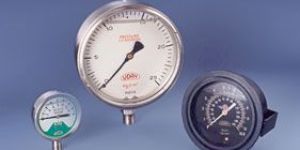

We are offering liquid filled gauges.

Application : Intended for adverse service conditions where pulsation or vibration exists, ideal for pumps, compressors, hydraulic presses & machineries, motors, winches.

Connection : Refer Table

Feature : Entire case is filled with Glycerine and all internal parts immersed preventing any attack due to vibration

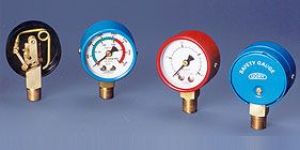

We are offering high pressure gas gauges.

Dial Size : 2"

Scale Range : 0-30 to 0-4000psi

Connection : 1/4" NPT

Usage : High pressure gas systems, cylinders charged with any oxygen, Acetylene, Nitrogen, nytrous oxide gases

Application : Can be used for all fluids, air, steam, water, oil and gases.

Connection : For standard threads click chart

Feature : -

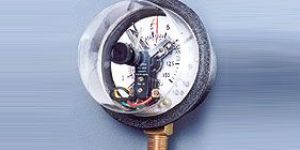

Feature   Contains sliding mechanical / magnetically assisted snap action manually adjustable on the pressure scale single acting, double acting electrical contacts max supply: 380 volts, 18A. Electrically separated circuits. Point of contact actuation setting is done by hub which is fitted in front window.

Dial Size : 4",6"

Scale Range : 0 - 100 lb/sq.in to 0 - 20000 lb/sq.in

Connection : 3/8" BSP OR NPT 1/2 " BSP OR NPT

Usage : Intended to make or break an electric control circuit relative to the position of the instruments pointer.

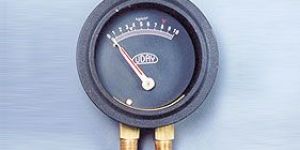

Application : To indicate two related Pressure on the same dial.

Connection : 2 parallel connection of thread 3/8" BSP

Feature : Two independent operating Bourdon tube pressure system with two parallel socket

      Microcontroller (87c51) based unitOn-Board V to F converter (0 to 10 KHz) is provided Digitizing Analog InputZero & Full Scale programmable through front Key padSelectable Decimal Four Keys membrane Key Board on front panelConfiguration Data & Integrated Total are stored in serial NVRAMCalibration through software (Offset: CALZ & Span: CALS stored in NVRAM)RS232 / 485 serial outputRe-transmission: 4 to 20 mA

Application : Can be used for all fluids, air, steam, water, oil and gases, process between temperature span of 10 C to 70 C for indication & control

Sturdy, non deflective, integrated circuit provides excellent accuracy, For piezoresistive sensor with 2 wire output, 24VDC and also available in 230VDC. Weather proof in stainless steel Pressure gauges type housing.

Application : For piezo resistive sensor

Feature : Sturdy, non deflective, integrated circuit provides excellent accuracy

Application : Suitable for all gasesious and liquid media.

Connection : 3/8" BSP or NPT

Feature : Teflon protected Diaphragm provides excellent resistance property against Corrosive media and heat

Application : For Calibration of pressure gauges, manometers, load Gauges, pressure switches, fittings, cylinders/small vessel

Application : In automobile for oil & air pressure indication, in medical for suction pump

Connection : 1/8” BSP or 1/4” BSP

Feature : 2” gauges are provided with 12v DC yellow buld with special holder assembly suitable for automobile 21/2” gauges provided with inbuilt back light system contains fluorescent miniature bulbs

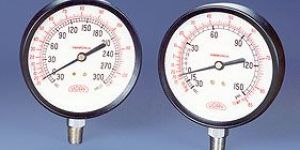

Application : For pressure measurement of a system charged with Ammonia.

Connection : 1/4" NPT

Feature : -
