Rotary Vane Pump Dealers in Mumbai

rotary vane pump We Designed with a decade of experience for excellent performance and modest maintenance. Widely used for Laboratory distillation Screenprinting

Technical Features: Gas ballast valve 40 CFM Various inlet filters Filter pressure gauge Oil level switch Vacuum regulating unit Vacuum oils for all applications

WVP Single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment. They are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate rough and medium vacuum or as backing pumps in pump combinations with Roots pumps of high vacuum pumps. The comprehensive range (pumping speeds ranging from 10 to 750m3 /hr) allows every customer to select the right pump for his particular needs.Application:Food industry, Vacuum Packaging, Material drying, Automobile Industry, Vacuum furnaces and plants, Laser technology, Medicinal technology, Metallurgy, Power engineering, Space simulation, Vacuum Coating, Vacuum loading, Electronics, Semiconductors, R & D- Scientific Research, Bottling pick & place, Paper - Plastic - Glass - Rubber Processing Industry, Oil Purification, Vacuum Distillation, Heat Treatment.Advantage:• Environmental clean exhaust, no pollution.• High pumping speed over the range of absolute pressure 1000 mbar - 0.5 mbar• Adopt German Technology, Advanced processing technology. It can replace the vacuum pump like U4, R5.• Equipped with check valve and oil anti suck back device (inlet with check valve to prevent vacuum oil back into the system; no oil loss    owing to the integrated oil return line)• Continuous working for more than 3000 hours in free of trouble.• Efficient air cooling (standard)• Low space requirement, easy to install; Maintenance - friendly; compact design.• The built in exhaust filter ensures an oil mist free exhaust gas over the entire range of operating pressures from atmospheric pressure    to ultimate pressure.• High water vapor tolerance & low noise level.

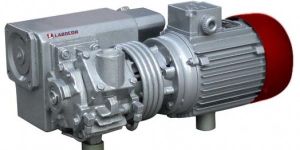

DETAILS • Compact, reliable and powerful • Space-saving and ideal for systems integration • High pumping speeds with small dimensions • Gas ballast valve to pump little water vapour • Oil-anti-suck backdevice for convenient starting • Efficient air cooling system • Eco-friendly exhaust gas free of oil mists • Quiet, low-vibration operation • Easy to maintain APPLICATION Labocon Rotary Vane Vacuum Pump is used for vacuum packaging, drying, distillation, plastic moulding etc.

Erpl india is leading manufacturers of rotary vane pumps in mumbai and offers comprehensive range of high quality rotary vane vacuum pumps to suit a wide range of purposes.

Rotary vane pumps are used whenever it is necessary to have a process vacuum of up to 10-3 mbar. VACUUBRAND rotary vane pumps are high-performance, yet compact, and can be equipped with an extensive line of VACUUBRAND accessories. They have an innovative lubrication system with a built-in oil pump and have a large oil volume. This extends oil change and service intervals and protects the pump at start-up. The effective gas ballast feature, with its high-flow gas ballast, provides high vapor pumping capability for water and solvents. VACUUBRAND rotary vane pumps´ volume flow rate is specified at atmospheric pressure, as is customary with PNEUROP®. For process effiency, however, the high volume flow rate of VACUUBRAND pumps under process conditions, as well as a consistently high volume flow rate over a wide pressure range, is the key to your satisfaction in real-world application. After switch-off the aggregate is vacuum-sealed to protect your application from undesired venting and oil back flow. constriction-free vapor pathway allows high volume flow rates, even when close to the ultimate vacuum high tolerance for water and solvent vapors, because of the high-volume gas ballast quiet running and excellent ultimate vacuum, even with gas ballast active corrosion protection: Oil cycle closes vacuum-tight against the intake of corrosive gases and oil impurities into the reservoir when shut down new design lubrication circuit, and large usable oil volume provides extended oil change and service intervals compact design, low weight and easy service with telescopic design

Rotary vane pumps are traditional vacuum pumps, which can be used in a wide area including research and production. The WH series rotary vane pumps are ChemVak's standard vacuum pumps, which can be used individually or as a backing pump in combination with molecular pumps or diffusion pumps in order to create an extremely high vacuum. They are widely used in vacuum distillation, vacuum filtration, vacuum testing, vacuum freeze drying, vacuum plating, leak detection, vacuum packaging, vacuum sorption, and the like. Product Features? Compact structure and very good sealing. Even after shut-off there is no returning throughput? Oil spout prevention? Low noise? Small casing? Easy to transport? High flow rate, which quickly leads to a stable ultimate vacuum? High evaporation resistance? Comparatively high chemical resistance? High longevity and very low maintenance rate? Low oil mist? Oil-observation window for convenient oil inspection? Gas ballast valve, which enables the user to let out a certain amount of gas? Fuse for overcurrent protection? Fulfills IP54 standards

The motor is coupled to the pump by means of a flexible coupling, Special Construction of this coupling and the use of specially selected materials ensures smooth and quiet running of the pump.           The rotor is mounted eccentrically in the pump cylinders. The Three radilly sliding sliding vanes divide the pump chambers into three sections. Due to rapid rotation of the rotor the vanes are forced to slide against the cylender walls by means of centrifugal force. the pumping isbrought about by alternately increasing and decreasing the volume of the working spacewhich is of crescent shape in cross section. the component parts as the pump are sealed by Viton 'O' Rings. All parts are pinned to ensure easy disassembling and reassembling.

Rotary Vane Pumps, Air Diaphragm Pump, Submersible Pumps, Hand Pump

Oil Free Rotary Vane Pumps and Compressor

Rotary Vane Pump, Industrial Pump, Piston Pump, Rotary Piston Pum

Rotary Vane Vacuum Pum

Oil Rotary Vane Pump, Oil Sealed High Vacuum Pump, Oil Rotary Piston Pum

Rotary Vane Pumps, Beverages Pump, Vane Pumps, Sliding Vane Pum
