S. Crane Dahisar, Mumbai, Maharashtra

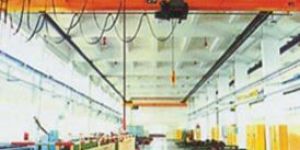

We bring an extensive range of Underslung Crane which are designed accurately and are sturdy and stable. These machines are used where the building structures make the normal traveling cranes less suitable. The main feature of the Underslung Crane is that the crane track is not fastened to pillars but to the beams of the building. These machines offer the advantage of very small trolley approach dimensions and as a result an optimal utilization of the building width. The Underslung Crane provides a load capacity range of 0.5 T up to 10 T and spans of up 15 m. Optimal area coverage can be accomplished by providing overhang on 2 sides. The highest hook position can be increased further by inserting the main girder between the end carriages. Features Light weight Easy operation Easy maintenance Modular design allows direct fits between components All components are designed as per quality compliance Details Electrical panel has modular design and a vast operating range. They are designed for easy installation and maintenance and reliability, with ducted wiring, fuse less circuitry, and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide protection against inadmissible overloading Single or Dual-disc electromagnetic DC Brakes provide automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offer long maintenance intervals Accurate flat helical or spur Gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Sturdy cylindrical or conical rotor pole-changing Motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Every component and part is thoroughly scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Details Push button stations which are extremely light, easy to operate, and handy Electric or Electronic Soft Start modules electrically coupled to the long travel drives to achieve cushioned ,smooth and jerk free starts Optional Features Independent push button stations for jobs which are bulky Two speeds for all drives Range Capacity : 0.5 Tons Onwards Span : 3 Mtr. to 15 Mtr. Lift : 3 Mtr to 18 Mtr.

We present the clients with high performing range of Single Girder Overhead Crane. These machines offer space for handling materials even when warehouses or production units are small. Due to this, we can spare the expense of modifying the existing building for space. Our Single Girder Overhead Crane offers various fixing arrangements due to which these cranes can be fitted in the available space. We can custom design the Single Girder Overhead Crane for clients who can provide us the dimensions of building, bracket, gantry etc. Features Excellent at saving space Robust design Light weight Easy to maintain and operate Modular design allows direct fits between components All components are designed as per  IS 807 / 3177 / 3938 Details Crane duty motors of reputed makes like Siemens , confirming to IS 325  are provided. Single or Dual-disc electromagnetic DC Brakes featuring automatic braking on power failure. Environmentally sound brake linings are designed for approx. 1 million braking operations which facilitate long maintenance intervals Modular design Electrical Panels for a very wide operating range. They are designed for easy installation, maintenance and reliable operation, with ducted wiring, fuse less circuitry and non-screwed terminals. Each drive group has a motor overload protection device to provide efficient protection against inadmissible overloading Accurate flat helical or spur Gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Every component and part is meticulously scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Details Electric or Electronic Soft Start modules electrically coupled to the long travel drives to achieve cushioned ,smooth and jerk free starts Maintenance platform with hand railing offers simple, easy and safe maintenance of the Crane at two ends or totally along the girder Push button stations which are extremely light, easy to operate, and handy. Optional Features Independent push button stations for jobs which are bulky Two speeds for all drives Available manual HOT cranes Flameproof duty crane can be supplied Range Capacity : 0.5 Tons Onwards Span : 5 Mtr. to 25 Mtr. Lift : 3 Mtr to 18 Mtr.

Our range of Jib Crane is extremely efficient and is designed with precision to handle loads up to 5,000 kg effortlessly. They can be of  fabricated column type or wall column provide reliable solutions to handling issues with the appropriate electric hoists. Our Jib Crane range has excellent dimensions which make it easy to operate and maintain and their superior modular design allows direct fits between components. We also assist clients in designing and installing overhead structures and supports to ensure safe, smooth and economical materials handling. Details Sturdy cylindrical or conical rotor pole-changing Motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Single or Dual-disc electromagnetic DC Brakes provide automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offer long maintenance intervals Accurate flat helical or spur Gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Electrical panel has modular design and a vast operating range. They are designed for easy installation and maintenance and reliability, with ducted wiring, fuse less circuitry, and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide protection against inadmissible overloading Every component and part is thoroughly scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Features Sturdy steel structure with solid-web jib for high usable crane hooks height Rated slewing range upto 360 degree Operation in completely enclosed buildings Medium or heavy weight design In accordance with I.S. codes and Accidents Prevention Regulations For fabricated column cranes supply includes anchor bolts, template and plan for foundation design Push Button Stations have light, handy, easily operable Optional Two speeds for all drives Swivel can be electric or manual Range Capacity : 0.5 Tons Onwards Radius : 2 Mtr. to 6 Mtr. Lift : 3 Mtr. to 12 Mtr. Swivel : Upto 360 degrees

We offer our range of Goods Lift which is sturdy and extremely safe. This Goods Lift is basically a Wire Rope Hoist, mounted on a supported I-Beam, which lowers and raises the cage. A fabricated enclosure supporting structure can be provided by us at site in the absence of a RCC well inside the building. This structure is independent of the building can be erected inside or outside the building, touching it. Guide wheels fitted on the cage run in the C-Guides which are provided on the structure on opposite sides. This arrangement enables smooth and trouble free travel of the cage in a vertically straight line. Collapsible gates are provided at all entry and exit points for essential safety. Features Easy to maintain and operate Modular design allows direct fits between components All components are designed as per quality compliance Details Sturdy cylindrical or conical rotor pole-changing motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Accurate flat helical or spur gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Modular design Electrical panel has a vast operating range. They are designed for easy installation and maintenance and reliability, with fuse less circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide protection against inadmissible overloading Single or Dual-disc electromagnetic DC brakes has automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offer long maintenance intervals Special Details Electro-Mechanic Door Locks near the collapsible gates ensures that lift does not work electrically if any door is open and collapsible gate does not open mechanically unless cage is on corresponding level Limit Switches prevent over hoisting and over lowering of hook Spring Buffers on the floor of the lift well cushions the cage Optional Features Counterweight and Speed Governor Traction drive type lift available with more safeties and higher speeds Hydraulic Goods cum Passenger  Elevator available Range Capacity : 0.5 Tons Onwards Size : 1m x 1m x 1m Onwards Lift : 2 Mtr to 20 Mtr. Floors : Upto Ground + 10

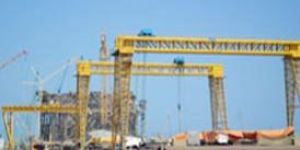

Our Gantry Crane has rugged design and provides high performance. The Gantry Crane range is engineered with precision and has flawless design. These machines are used for handling overhead materials when the existing columns do not have overhead brackets to support gantry with rails and in situations where there are open areas where columns cannot be accommodated. The top main girder is mounted on two A shape columns which rest on wheel mounted end carriages. The Main Girder is designed as per the class, the frequency of operation and the duty cycle. The girder could be RSJ type, truss type or plate box type for single girder. For heavy duty applications, double girder box construction design is employed and a suitable track is provided on the top of the girders for travel of crab wheels. Features All components are designed as per quality compliance Easy maintenance Modular design allows direct fits between components Easy to operate Details Sturdy cylindrical or conical rotor pole-changing motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Modular design Electrical Panels has vast operating range. They are designed for easy installation and maintenance and reliability, with ducted wiring, fuse less circuitry and non-screwed terminals. Each drive group has a motor overload protection device to provide efficient protection against inadmissible overloading Accurate flat helical or spur gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Single or Dual-disc electromagnetic DC brakes has automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offer long maintenance intervals Every component and part is efficiently scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Details Push button stations are extremely light, easy to operate, and handy Electric or Electronic Soft Start modules electrically coupled to the long travel drives to achieve cushioned ,smooth and jerk free starts Maintenance platform with hand railing offers simple, easy and safe maintenance of the Crane Optional Features Independent push button stations for jobs which are bulky Two speeds for all drives Range Capacity : 1 Tons Onwards Span : 5 Mtr. to 25 Mtr. Lift : 5 Mtr. to 18 Mtr.

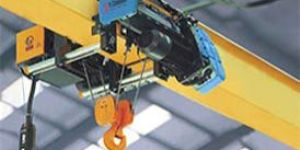

We offer a wide range of Electric Wire Rope Hoist which has superior design and are easy to operate and maintain. These machines are in generally in accordance with IS 3938. Their modular design offers direct fits between components. We even offer the clients assistance in designing and installing monorail structure with supports which ensures a safe, smooth and economical material handling. All the components of the Electric Wire Rope Hoist like wire rope, motor, brake and limit switches are of reputed makes. Details Sturdy cylindrical rotor pole-changing Motors with elegant continuous cast aluminium sections, integrated safety brakes. Insulation class - F, Protection- IP54. Designed specifically for high starting torque hoisting service, half-hour rated with permanently lubricated bearings suitable for frequent reversals as well as braking Single or Dual-disc electromagnetic DC brakes having automatic braking on power failure. Environmentally sound brake linings designed for approx. I million braking operations offer long maintenance intervals Modular designed Electrical Panel has a very wide operating range. The panels are designed for easy installation, maintenance and reliability, with, fuse less circuitry. Each drive group has a motor overload protection device which provides effective protection against inadmissible overloading. Control circuit provides reduced voltage at the Push Button station, with 110 volts being standard. Also, a relay is provided to prevent phase failure and phase sequence change at the incoming. Accurate flat helical or spur gear units with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication. Designs that are newer are lighter in weight because of improved material strength and manufacturing techniques The trolleys offered are push pull, hand geared or electrically operated type. Additionally, articulated joints ensure that all four wheels are always firmly positioned on the tracks and that the wheel loads are properly distributed in accordance with the structural design of the system Every component and part is efficiently scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel or automotive paint after testing Special Details Push Button Stations are light and easy to operate, weather proof, giving sure grip and one handed control. The Station has built in steel strain relief, permits pulling of unloaded hoist along track. Rocker switches in certain designs Limit Switches prevent over hoisting and over lowering of hook. Positive action limit switch will prevent over travel beyond set limits in either direction. They are optional if desired for CT and LT Optional Features Two speeds for all drives Articulated trolley for curved track Range Capacity : 0.5 Tons Onwards Lift : 3 Mtr to 18 Mtr.

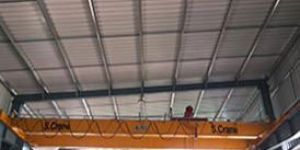

We bring our range of robust and well engineered range of Double Girder Overhead Crane. The Double Girder Overhead Crane is specially preferred in the case of heavy duty  operations and wide spans. They have 2 torsion-free box girders which make them suitable for lifting and transporting loads easily. We offer Double Girder Overhead Crane with load capacities up to 30T and with spans up to 31 m. Articulated end carriage joints ensure that all four wheels have positive contact with the track. The range of fixing arrangements allows their appropriate integration into existing as well as new buildings. The profiles of the main girder are optimally produced with computers so that maximum performance with a minimum of deadweight can be achieved. Financial benefits are an added advantage. Features Easy to operate Easy maintenance with maintenance platform on crane Modular design allows direct fits between components All components are designed as per IS 807/ 3177 Details Sturdy cylindrical or conical rotor pole-changing Motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Single or Dual-disc electromagnetic DC Brakes featuring automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offers long maintenance intervals Accurate flat helical or spur Gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Modular design Electrical Panels for a very wide operating range. They are designed for easy installation, maintenance and reliable operation, with ducted wiring, fuse less circuitry and non-screwed terminals. Each drive group has a motor overload protection device to provide efficient protection against inadmissible overloading Every component and part is meticulously scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Details Push button stations which are extremely light, easy to operate, and handy Electric or Electronic Soft Start modules electrically coupled to the long travel drives to achieve cushioned ,smooth and jerk free starts Optional Features Independent push button stations for jobs which are bulky Two speeds for all drives Can offer flameproof duty crane Range Capacity : 5 Tons Onwards Span : 5 mtr. to 40 Mtr. Lift :  3 Mtr to 18 Mtr.

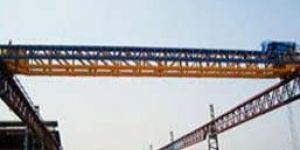

We offer Double Girder Crane which is sturdy and heavy duty. These machines are well engineered and easy to maintain. These machines have bigger cross section which causes lesser vibrations in girder. The special lightweight construction of the crane reduces load stress on building supports. Maximum lift can be offered by the low headroom. Components Cross Travel Drive Motor driven trolley with the hoist increases the speed and efficiency of load handling Traverse gear reducer, a conservatively-rated rugged drive reducer has output pinion meshing with machine cut wheel gears Steel frame side plates extend beyond wheels for end stop contact Long Travel Drive Special Soft Start Unit coupled to LT Drive ensures smooth, cushioned jerk free start Arrangement of solid shafts and floating shafts coupled by universal couplings and supported on pedestals blocks Driven by a crane duty foot mounted motor transmitting torque to heavy duty shaft mounted gear box, which transmits torque to output pinion, which meshes with machine cut wheel gears Rubber Buffers provided on end-carriages and crab Rail sweeps provided on end carriages and crab frame ends clear any object left on or leaning against the rail ahead of the crane wheels Hoist Hoist Motor designed for high starting torque hoisting service, half-hour rated with permanently lubricated bearings suitable for frequent reversals as well as braking Spur and Helical Gears cut from alloy steel and duly heat treated as required are used in totally enclosed casing to provide grease lubrication. New designs are lighter weight because of improved material strength and manufacturing techniques The Hoist Brake is fitted with an electromagnetic brake designed to arrest and safely hold the full load capacity of the hoist. The brake offers a fail to safety feature and failure of current immediately applies the brake The Bottom Block Full rotating lower hook is high strength forged steel. Thrust bearings make swiveling easy even under load Push Button Station has built-in steel strain relief, permits pulling of unloaded hoist along track. Weather proof as standard, giving sure grip, one handed control All electrical controls are centralized within one enclosure with removable cover to access for easy servicing. The Control circuit offers low voltage at the Push Button station, with 110 volts being standard. Under the new control system, operation is gentler on components, lowering shock loads and heat buildup
