Sauraf Industries Sakinaka, Mumbai, Maharashtra

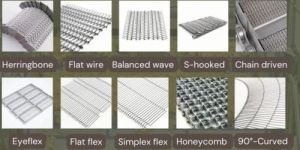

Owing to perfection and quality oriented approach, we have carved niche in the industry by offering an enormous grade array of Conveyor Belts. The offered range is manufactured using high grade raw material and advance technology by our skilled professionals. To ensure quality, these belts are stringently tested on various parameters. Clients can avail these belts from us in different specifications, as per their needs.

Material : stainless steel

Application : conveyor systems

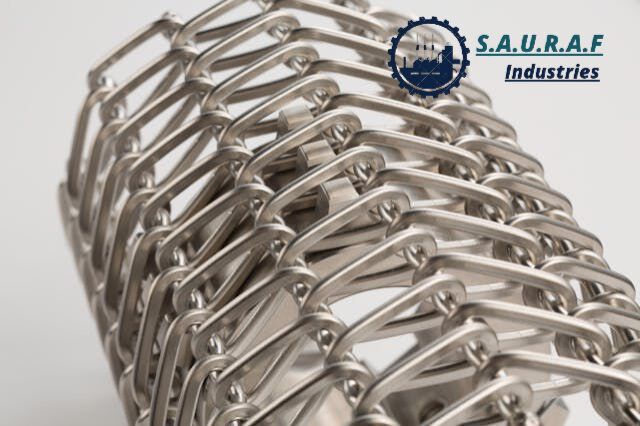

Ladder Conveyor Belt The ladder conveyor belts are composed of cross rods jointed by S - shaped hooks chain links and U -shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts. Details: Material : steel, stainless steel 304, 316 or other materials as your request. Speed : from less than 1 m/min to 20 m/min. (High speed quick may affect the longevity of the conveyor belt) Application : Food processing: cooling, washing, drying, etc. Waste treatment facilities. Product sieving and sorting system. Blanching and product handling system. Ladder conveyor belts are available in straight types and curved types with a fixed inside radius

Material : Stainless Steel

Finishing : Polished

Color : Silver

Condition : New

Application : Industrial Use

Style : Roll

Feature : Excellent Quality, Heat Resistant, Long Life, Scratch Proof, Vibration Free, Water Resistant

Type : Steel Rod Conveyor Belts

Country of Origin : India

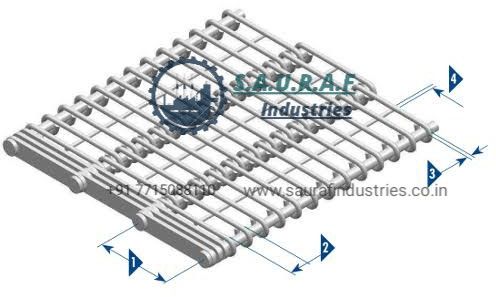

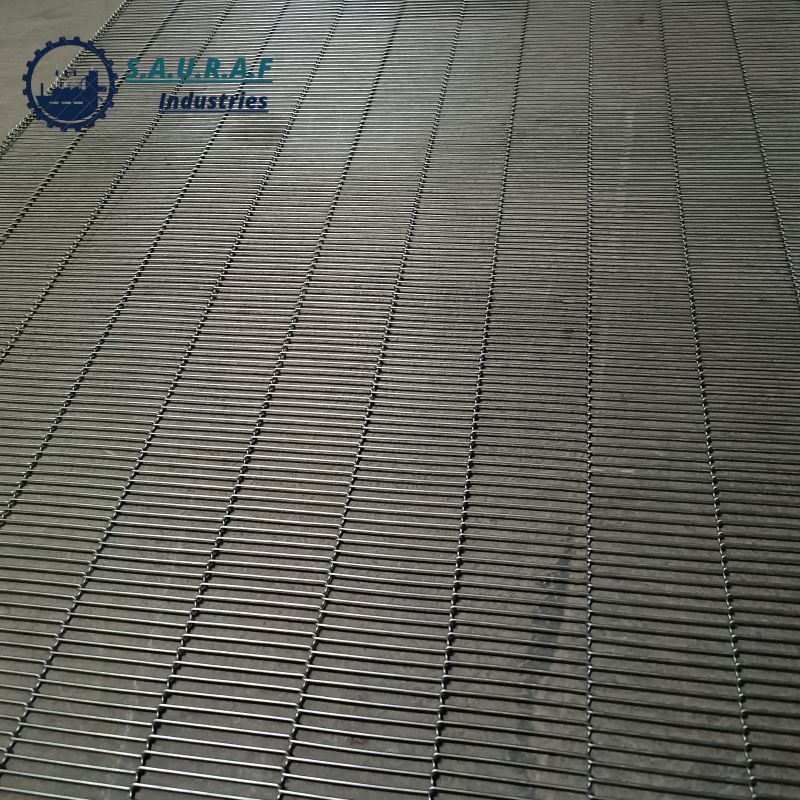

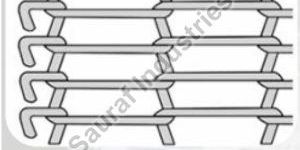

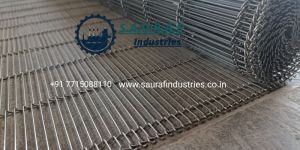

Rod network belts, also known as enrober conveyor belts or flat flex conveyor belts, feature specially designed "Z-bend" joints in the wire mesh. They are perfect for transporting light and medium weight products in food processing industries. Features : High proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications. Road network belts are normally driven by sprockets positively without need for complicated tracking mechanisms. With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products. Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt Low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput. The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving. Belt Edge Rod network conveyor belts can be manufactured with three types of bending end: single loop edge, double loop edge and C-shaped loop edge.    Details : Quality spring steel AISI 1060; stainless steel wire 302, K2930 or custom others. 67.5% to 86% 0.035" to 0.11" as your request. 1/8" to 3/4" or custom others. 3" to 14' or custom width as your request.

Material : Stainless Steel

Color : Silver

Condition : New

Feature : Excellent Quality, Long Life, Scratch Proof, Vibration Free, Heat Resistant,Water Resistant

Type : Steel Rod Network Conveyor Belt

Country of Origin : India

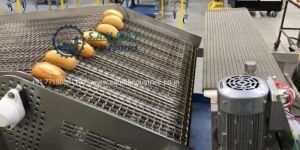

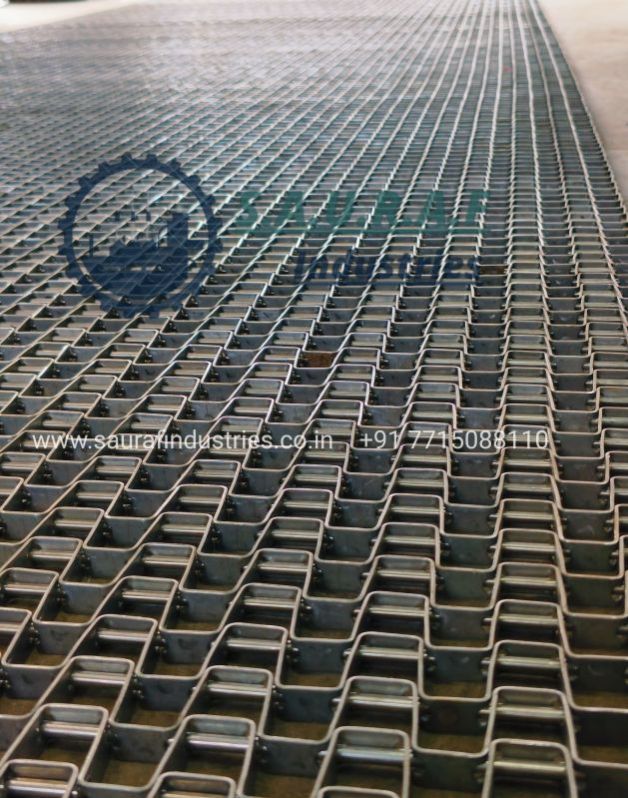

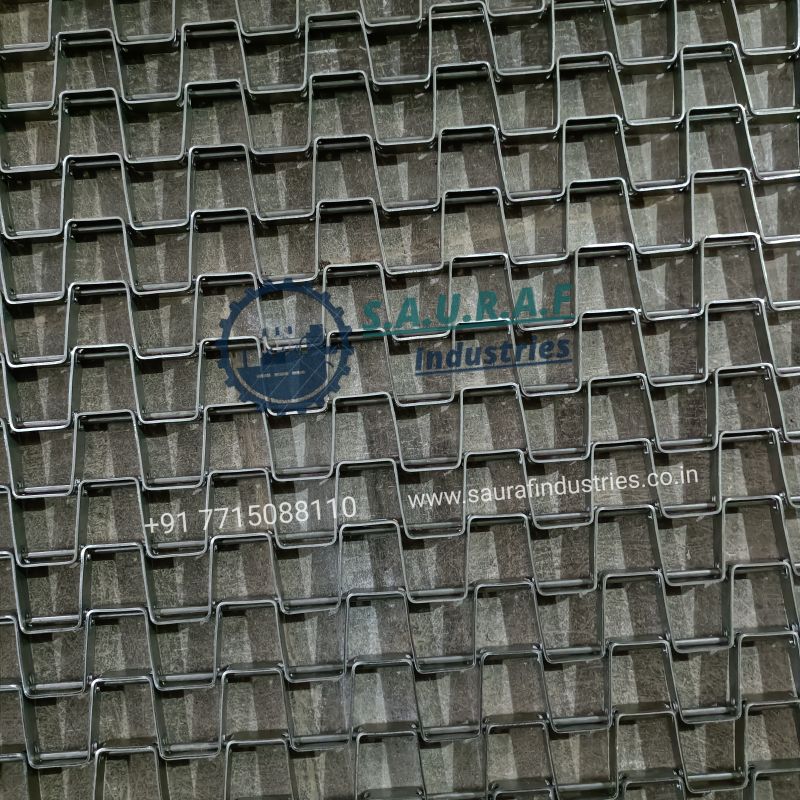

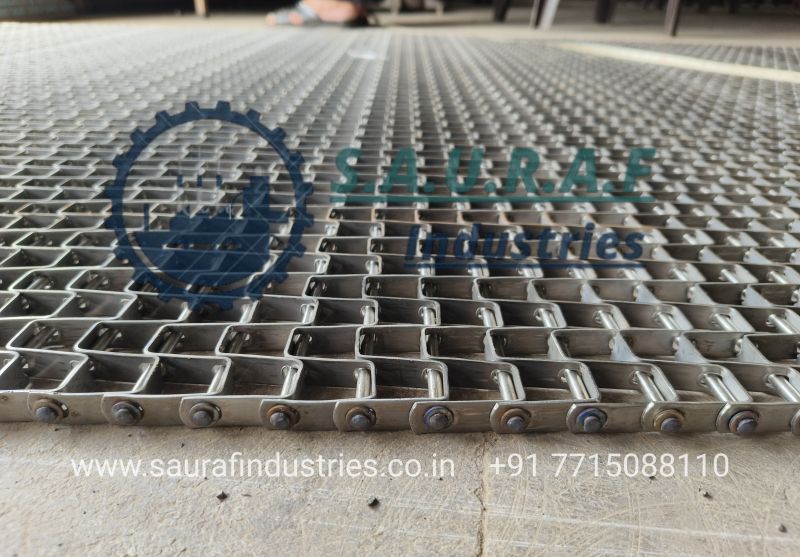

Flat Wire Conveyor Belts - Clinched Edge & Weld Edge Flat wire conveyor belts also known as Honeycomb belt, constructed of cross rods and flat metal strips, can provide an open mesh with flat surface, endless splicing, easy air circulation, excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down.We also offer in double strip Honeycomb belt for Heavy duty purpose. Two styles of belt edges: The selvages the flat wire conveyor belts are available in clinched edge and welded edge as shown in the picture: Features : Large open area for excellent air circulation. Optional side plates, reinforcing links and flights. Strong edge avoids snagging or catching even there are conveyor protrusions. Low maintenance. Suitable for friction or sprocket drive Anti-slipping and last for years if used well. Durable structure prevents belt from deforming under heavy loads. Application : Food baking, cooling and freezing, etc. Chemical industry. Agricultural farming and harvesting. Being used in discharging tower at ports. Sorting, sieving and waste handling system. Washing, drying, painting and transferring. Acting as matting and drag mats. Specification: The description of flat wire conveyor belts is followed by its load capacity. Normally, there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs. The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions. As your request, radius flat wire conveyor belts can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt. Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers. Details: Material: C-1045, C1050 high carbon steel, low carbon galvanized steel, stainless steel , 304, 316, etc. Open size: 1" × 1", 1/2" × 1", 1/2" × 1/2" ,etc Belt width: 50mm to 3500mm. Belt speed: from less than 1 m/min to 25 m/min. Temperature range: -30°C to 700°C. Accessories: flight clips, lane dividers, edge guards or pin up attachments, etc.

Material : Steel

Condition : New

Application : Moving Goods

Feature : Easy To Use, Excellent Quality, Long Life, Scratch Proof, Vibration Free

Voltage : 220 V

Loading Capacity : 10-15kg

Type : Honeycomb Belt Conveyor

Thickness : 0-10mm

Country of Origin : India

We are offering the best range of product, as we are famous manufacturer and supplier of the best quality Hinge Belt. This product is precisely fabricated making use of splendid quality raw material & modern technology in order to meet several existing industry quality parameters. We customized the offered range of products in order to meet the diverse needs of the clients. Features : Low maintenance High strength Longer service life Applications : For CNC, VMC, HMC or SPM Machine

Material : Metal

Color : Silver

Size : Customised

Feature : Easy To Use, Excellent Quality, Long Life, Scratch Proof, Vibration Free

Type : Conveyor Belts

Country of Origin : India

Color : Black

Application : Industrial

Conductor Type : Solid, Stranded

Type : Flat Wire Belting

Country of Origin : India

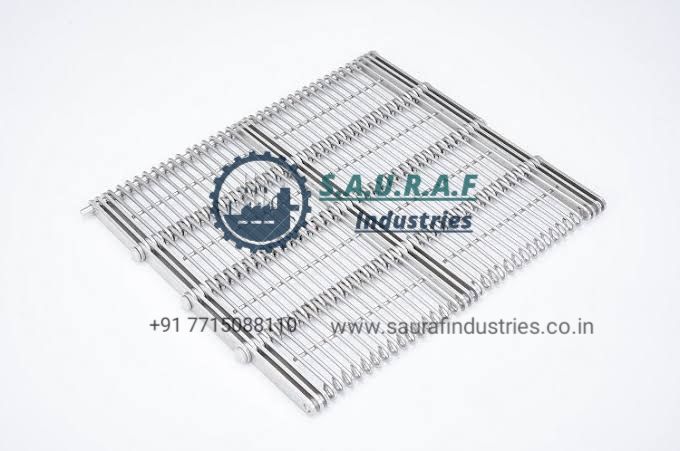

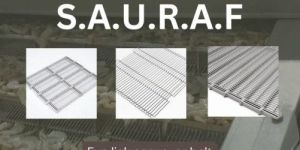

Eye link conveyor belts are specially designed for applications requiring an extremely rugged structure and long service life.It is also known as eye flex belt, With larger open areas, eye flex conveyor belts are generally used in chemical industry, steel industry and food industry such as drying, washing, baking, pasteurizing, frying, freezing and cooling, etc. Features High strength and excellent carrying ability. Open flat surface for superb air circulation and fluid drainage. High reliability, durability with long service life even being used in 24/7 product line. A wide range of materials and sophisticated designs for virtually every application. Offer continuous product support minimizing product marking. Smooth and single level surface without product entrapment. Excellent resistance against shock and lateral forces Four Styles of eye links Eye flex conveyor belts can be manufactured with various styles of eye-links: eye flex belt without spacer, eye flex belt with under welded spacing, eye flex belt with rings as spacers and eye flex belt with springs as spacers as shown in the following pictures: Standard plate edge - As the simplest belt edge, it is characterized by pieces of steel plates fastened to the cross rod by welding steel rings at the end for containing the integrity of the conveyor belt. Reinforcing plate edge - This type of edge features added reinforcing plates mounted to the conveyor belts before the connecting rod is welded. This design increases the width of belt as well as enhances the strength of this belt. Chain link edge - The chain link edges not only provide an alternative driving method but also make the belt much stronger than reinforcing plate edge. Side guard edge - Side guard edges features erect side plates to protect conveying products from falling off from the belt. As your request, guard plates can also be mounted across the belt for food separation.

Brand : S.A.U.R.A.F

Material : Metal, Stainless Steel

Color : Silver

Condition : New

Application : Moving Goods

Feature : Excellent Quality, Long Life, Scratch Proof, Vibration Free, Heat Resistant

Type : Metal Conveyor Belts, Eye Link Conveyor Belt

Thickness : 0-10mm

Country of Origin : India

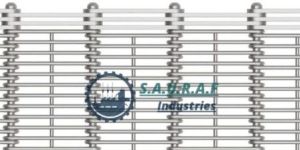

Ladder Conveyor Belt The ladder conveyor belts are composed of cross rods jointed by S - shaped hooks chain links and U -shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts. Details: Material : steel, stainless steel 304, 316 or other materials as your request. Speed : from less than 1 m/min to 20 m/min. (High speed quick may affect the longevity of the conveyor belt) Application : Food processing: cooling, washing, drying, etc. Waste treatment facilities. Product sieving and sorting system. Blanching and product handling system. Ladder conveyor belts are available in straight types and curved types with a fixed inside radius

Material : Stainless Steel

Condition : New

Application : Moving Goods

Feature : Easy To Use, Excellent Quality, Long Life, Scratch Proof, Vibration Free

Type : Curved Ladder Conveyor Belt

Country of Origin : India

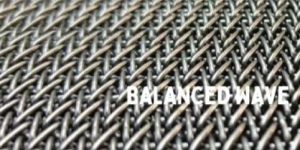

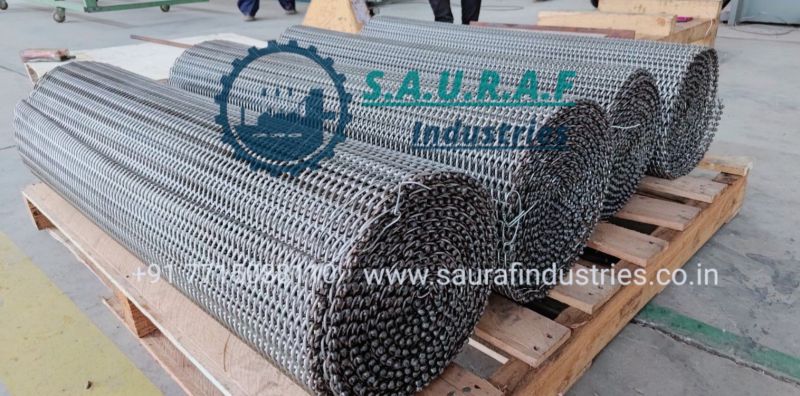

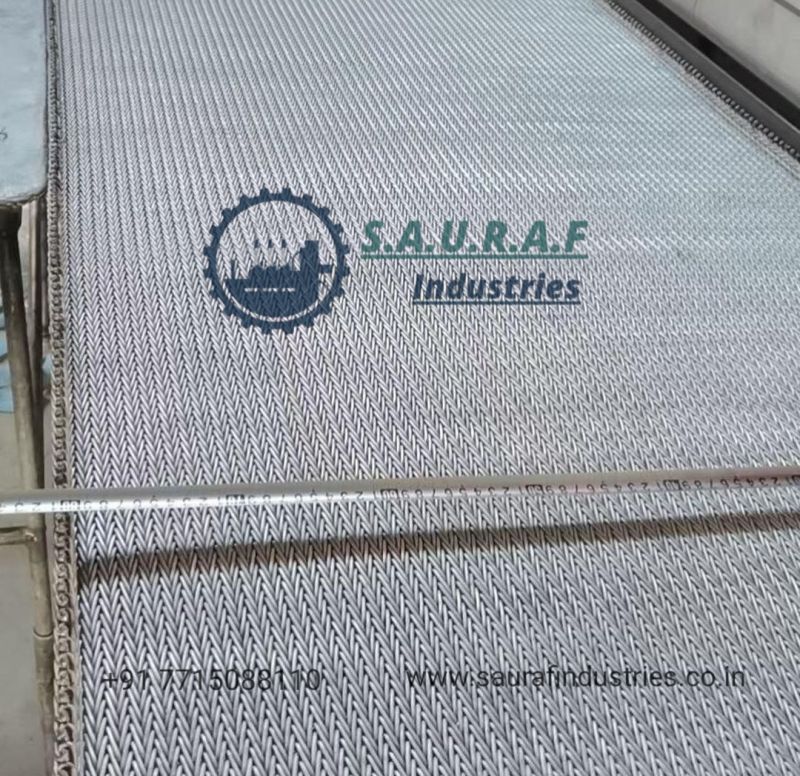

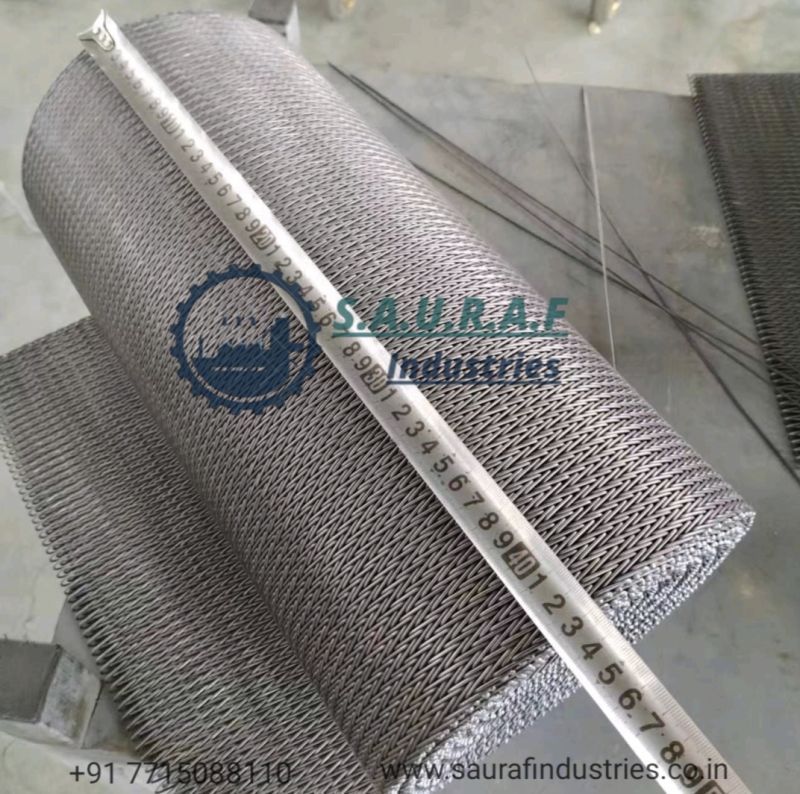

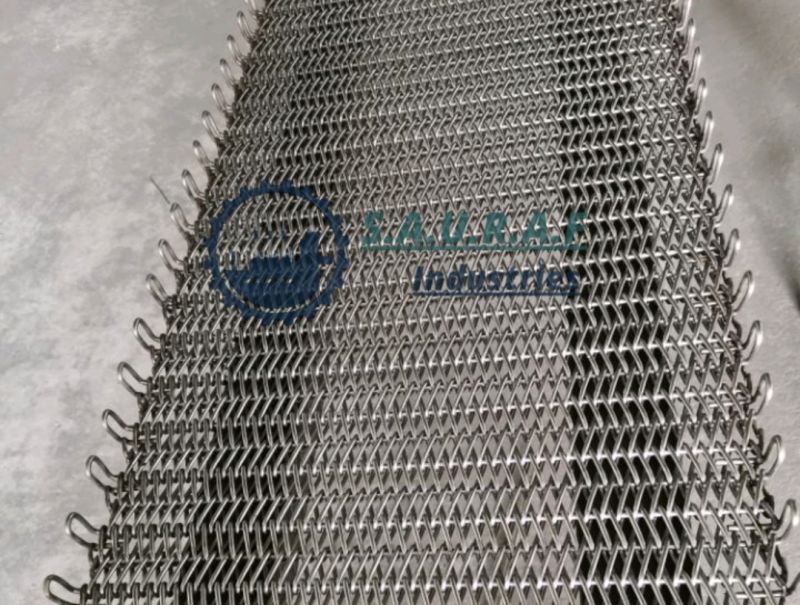

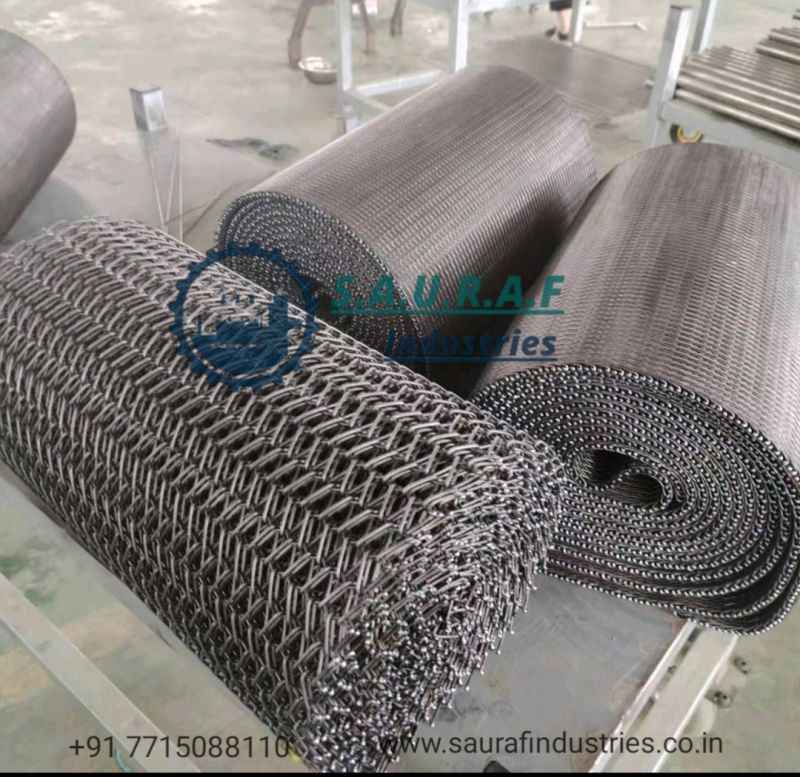

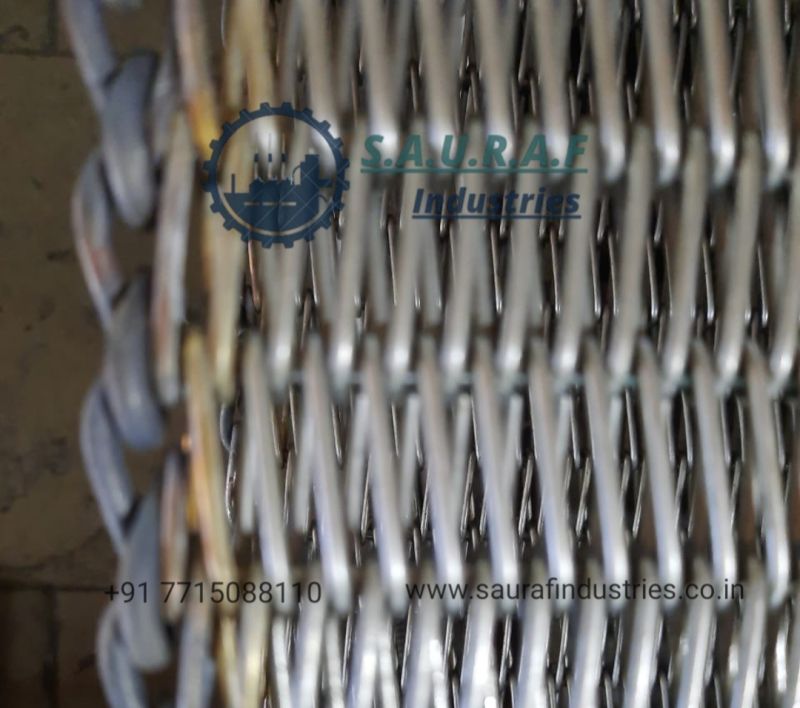

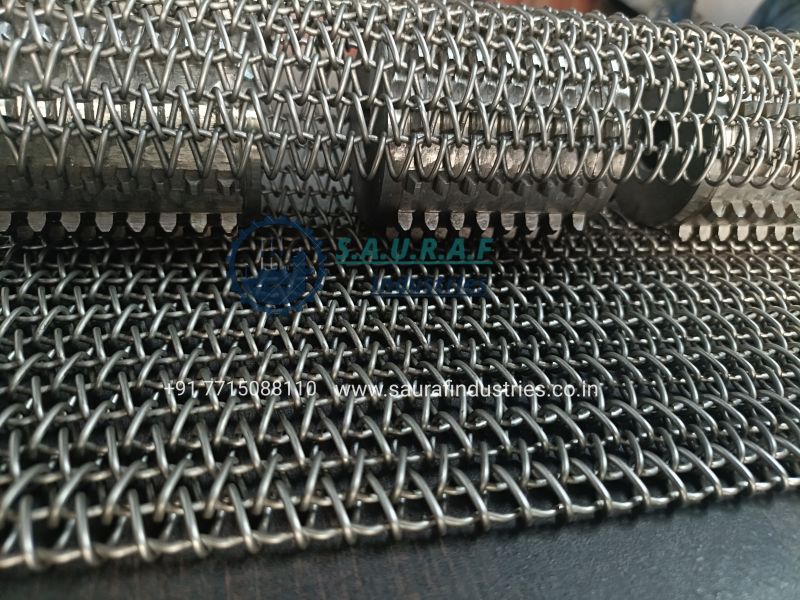

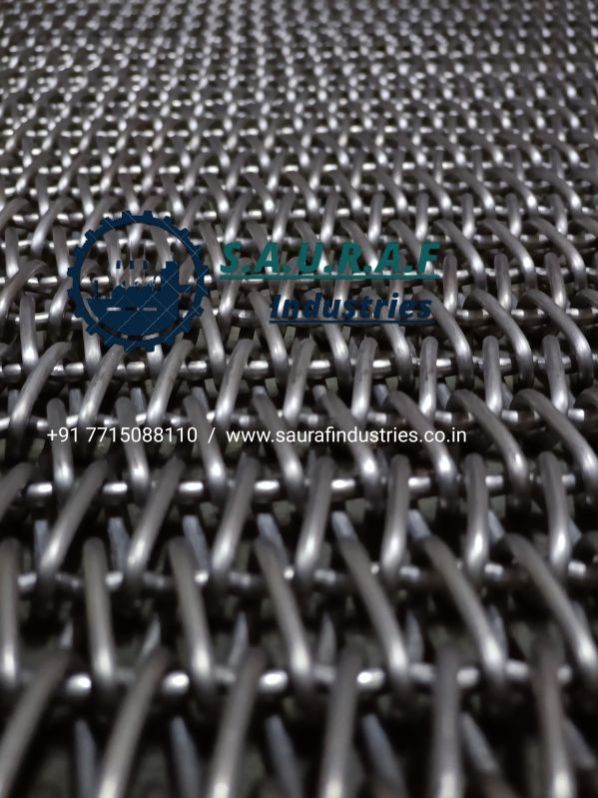

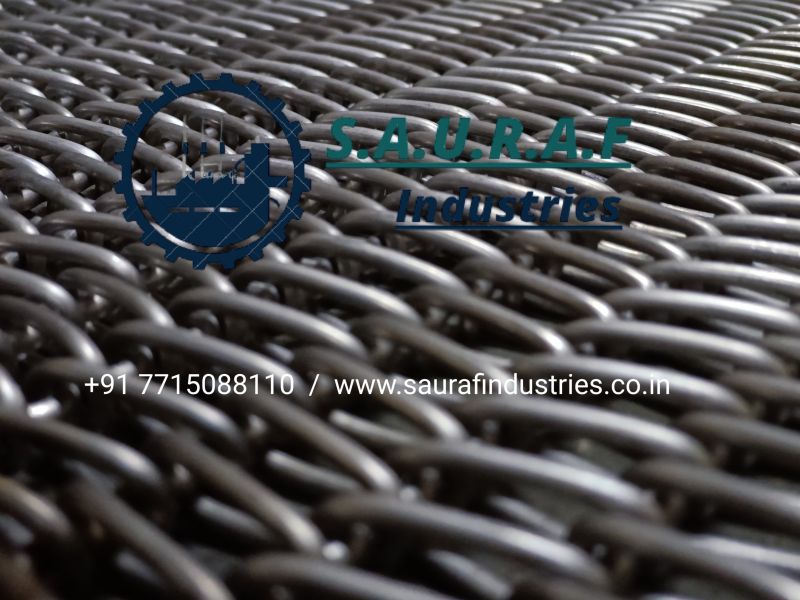

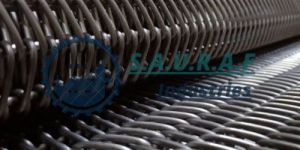

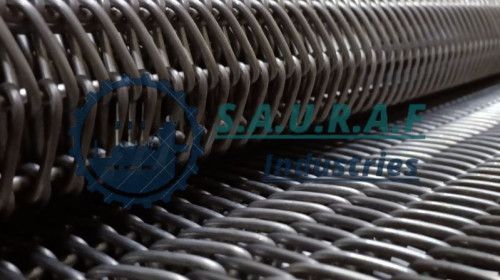

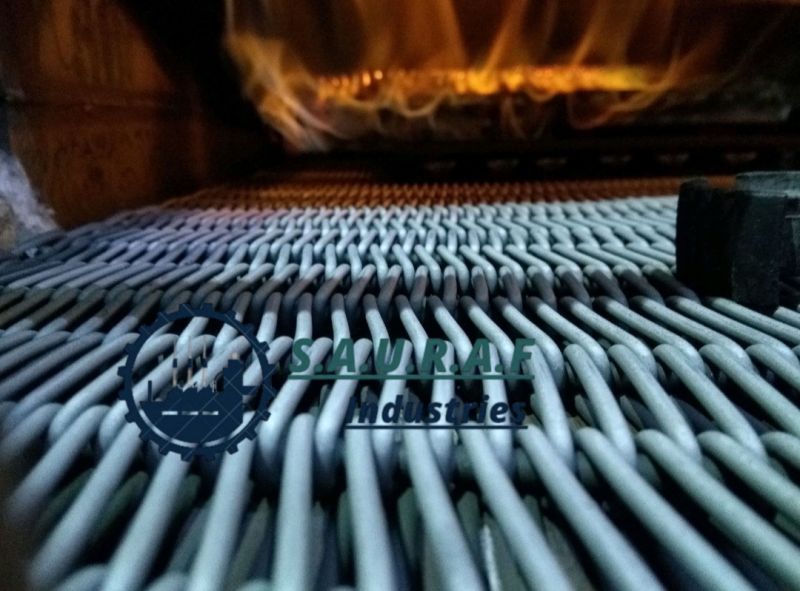

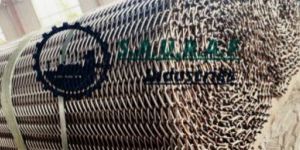

Radius conveyor belt also known balanced wave belt because it composed of balanced weaved spiral mesh, straight cross rods and chain links on both sides. They are suitable for a wide range of applications, constructions and process conditions throughout the world. Radius belts offer a smooth continuous product flow running dependably year after year without damaging fragile and delicate products. Features : Stable design for smoothly, dependably and gentle movements. Money saving by securing the quality of products and reducing waste. Close-structure structure and ideal for high tensile load. Suitable for radius system, spiral, curved or straight conveyors. Wide temperature range from -196°C to +275°C. Complying with FDA standards. Applications : Food cryogenic cooling and freezing. Vegetable blanching. Vegetable blanching. Drying installations. Product lifting conveyors. Baking or pasteurizing systems. Conveyor machines. Ovens, froster, annealing furnaces. Frying, refrigeration and cleaning facilities. Four main types of edges : Radius conveyor belts are available in four different edges including traditional fabricated & welded ends, U-shaped chain link ends, roller chain link ends with or without side plates. Traditional fabricated & welded ends : As your requirements, radius conveyor belts can be The cold butting and welds which with minimum heats to ensure the structure of cross rods. www.sauraftech.in 7 welded or fabricated to form a stable straight or curved convey system. connect the chain links and rods are welded toughly with minimum heats to ensure the structure of cross rods. Specifications: Material: stainless steel, AISI 304 or AISI 316; steel unprocessed, tin plated, zinc plated; special steel for high temperature ranges. Width: up to approximately 5300mm. Round wire spirals: diameter 0.80 to 5.00mm. Flat wire spiral: cross 1.2 × 0.7mm to 6 × 3mm. Cross bars: diameter 1.40 to 8mm. Cross bar pitch: 6.0 to 52.0mm. Speed: less than 1m per minute to about 20m per minute. (higher speed may affect the longevity of the belt) For U-shaped chain link ends, three strength can be provided - normal chain link type (2mm in thickness), heavy duty chain link (3mm in thickness), heavy duty chain link with double reinforcing plates (3mm in thickness). Meanwhile, as your request, radius conveyor belts with middle chain links are available.

Material : Stainless Steel

Finishing : Polished

Driven Type : Electric

Condition : New

Application : Industrial

Length : 10-20 Mtr, 20-30 Mtr

Feature : Corrosion Ressistant, Durable, Fine Finished, High Strength, Rust Proof

Type : Balanced Weave Belt

Country of Origin : India
