sinosun Kalbadevi, Mumbai, Maharashtra

Application: Mainly applied to the construction of expressway, grade roads, municipal roads, airports, ports etc and ideal for production of asphalt mixture, modified asphalt mixture, color asphalt mixture

Certification : ISO, CE, EAC Certification

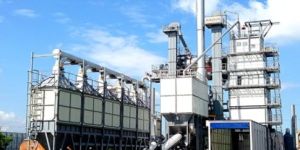

Features 1. The mixer is settled together with the tower of RAP system, changed the traditional heating mode of reclaimed materials, new structure design, virgin asphalt integrated with the recycled asphalt together, high add ratio for recycled asphalt, high capacity performance. 2. Special sized dryer drum blades can prevent adhesive aggregate, make the production stable and efficient, easy to maintenance. 3. The high temperature exhaust gas returned to dryer drum through the flute to refuse which can save energy while reducing the burden of dust collection equipment. 4. The old aggregate adding rate can reach up to 30%-80% through this method.

Type : Recycle Asphalt Mixing Plant

Application : Mixing Asphalt With Recycled Materials

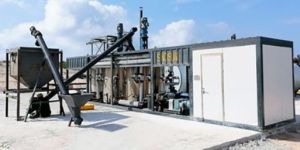

Brief Introduction SINOSUN PSGX polymer modified bitumen plant is the new generation of bitumen modified equipment developed by our company and has won national patent. Modified asphalt of wide range of asphalt content and stable property produced by this equipment can meet various requirements of different construction technologies, which is applied into the express highway constructions and road maintenance projects. This set of modified asphalt production equipment adopts batch production mode, which can produce all modified asphalt products such as non-curing and joint glue on the market. Main Components 1. Ingredients Tank The heat transfer oil coil is installed inside the batching tank to heat all materials such as asphalt, softened oil and so on. The top-mounted agitator can fully mix the input materials. The batching tank is supported by 4 load cells for weighing various input materials. External pipe ports: heat transfer oil import and export, asphalt import and export, solvent oil import, powder feeding port, waste gas collection port, etc

Material : Steel, Asphalt, Softened Oil

Application : Express Highway Constructions, Road Maintenance Projects

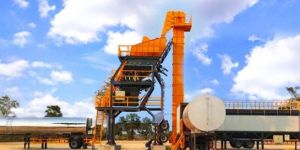

SINOSUN- MAP series Mobile Asphalt Batch Mix Plant (capacity scope: 40-200t/h) Introducing Germany Technology for the mixer, the mobile asphalt mixing plant is widely applied to the construction of airport runway, port, road and bridge and they are the ideal equipment for emergency building of specialized road. This asphalt plant equipment , with modular construction and compact design, is easy to install, transport and dismantle. This MAP Series mobile asphalt mixing plant has the following mobile chassis: 1. Mobile Cold Aggregate Feeding System 2. Mobile Drum Dryer with Oil Burner 3. Mobile Mixing Tower 4. Mobile Bag House Dust Collector 5. Mobile Control Room with One Diesel Storage Tank 6. Mobile Bitumen Tank(Option) 7. Mobile Filler Storage and Supplying System(Option)

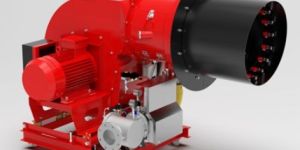

SINO-A series burner is a special automatic combustion device designed for the operating environment of the asphalt mixing plant, which is convenient for movement, installation and maintenance.

Material : Ceramic,Metal,Wood,Glass

Application : Aromatherapy,Home Decor,Meditation

Material : Steel,Stainless Steel

Capacity : 5-50 Tons Per Hour

Power Source : Electricity,Diesel

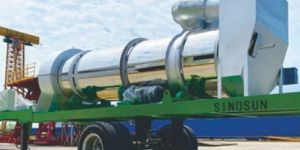

SINOSUN trailer type continuous drum mix asphalt plant is new design on basic of the CAP series asphalt drum mix plant, realizes the high integration of the plant,the compact structure design, make the equipment occupy small area of ground, it's easy to transport,transfer site, and recommissioning, also it is equipped with high level dust filter(High Voltage Pulse Bag House Dust Filter), more environmentally friendly. The burner used for this new designed asphalt plant, can be oil(Light/Heavy oil) or gas, clients can choose the burner according to their local resource supply.

Type : Continuous Drum Mix Asphalt Plant

Thermal oil boiler heating using high quality diesel burner , have fire regulation , secondary fire control , automatic fault alarm function . Adopt horizontal furnace , outer with fiber glass heat insulation layer , internal heating coil , with high temperature and under voltage double safety protection device

Application : Bitumen Storage And Heating

Type : Bitumen Tank

Shape : Horizontal, Vertical

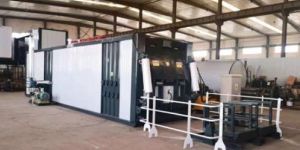

Description: Drummed bitumen melting machine is used to decant bitumen out of drums and heating up bitumen. SINOSUN DT series drummed bitumen melting machine can make full use of hot gas of burner to make bitumen coming out of drums, and use the hot oil heating coils to heat up bitumen indirectly, which prevents bitumen from aging during heating. Other functions of bitumen melting machine are dehydration and removing residue automatically. Our DT series drummed bitumen melting machine is popular for its features of energy saving and environment friendly. Performance: 1. Special enclosed construction which is more environmental friendly. 2. Adopt automatical control system and imported auto-ignite burner. 3. Strong applicability. It is suitable for various types of drums. Even when the drum is out of shape, the machine could still be operated normally. 4. Energy-saving. It makes full use of hot gas (320-450℃) of burner to melt and make bitumen coming out of drums (it is about 150℃ while waste gas was let off to air). The closed-construction saves 50% energy sources compared with the exposed one. 5. Easy to transport, operate and install.
