Number Of FlowerHeat Treatment, Heat Treatment Equipment
Availability100-1000kg
Country of Origin440V
ConditionNew
Automatic GradeFully Automatic
Power65kW
Driven TypeElectric
Total Carbohydrate1yrs
Country of OriginIndia
Product NameLV75
DimensionLength: 970mm Width:580mm Height:945mm
Input Supply380V / 415V /440V, 3Phase, 50 Hz
Output65 Volts
Program ControllerStandard 6 PIDs, Optional: Master Slave, Auto Programmer
The 75 kVA heat treatment unit has been robustly constructed to provide power to electrical resistance heaters at 60 volts, suitable for site and shop working. It is specifically designed for localized Pre and Post Weld Heat Treatment using Electrical Resistance
The output from the unit is split into six individual heating circuits for temperature control. Each output circuit has 10.8 kW of power, which is sufficient capacity for 4 standard ceramic pads rated at 2.7 kW, total 24 standard ceramic heating pads can be connected to one unit
...more
PWHT Power Source Unit
400,000 - 500,000 / Set
5 Piece (MOQ)
The 75 kVA heat treatment unit has been robustly constructed to provide power to electrical resistance heaters at 60 volts, suitable for site and shop working. It is specifically designed for localized Pre and Post Weld Heat Treatment using Electrical Resistance
The output from the unit is split into six individual heating circuits for temperature control. Each output circuit has 10.8 kW of power, which is sufficient capacity for 4 standard ceramic pads rated at 2.7 kW, total 24 standard ceramic heating pads can be connected to one unit
Number Of Flower : Heat Treatment, Heat Treatment Equipment
Program ControllerStandard 3 PIDs, Optional: Master Slave
DimensionLength:420mm Width:400mm Height:400mm
ProtectionOverload–3-phase RCCB / ELCB
PWHT control panels are designed and constructed for reliability, safety and longer operation on site & in workshop in rugged conditions. The unit can be designed in 3,6 or 9 channels and each can be controlled individually or in combination.
Each of the three channels may be controlled individually using either energy regulators in manual mode or using PID controllers in automatic mode to gain control over rates of heating and cooling as well as soak conditions.
...more

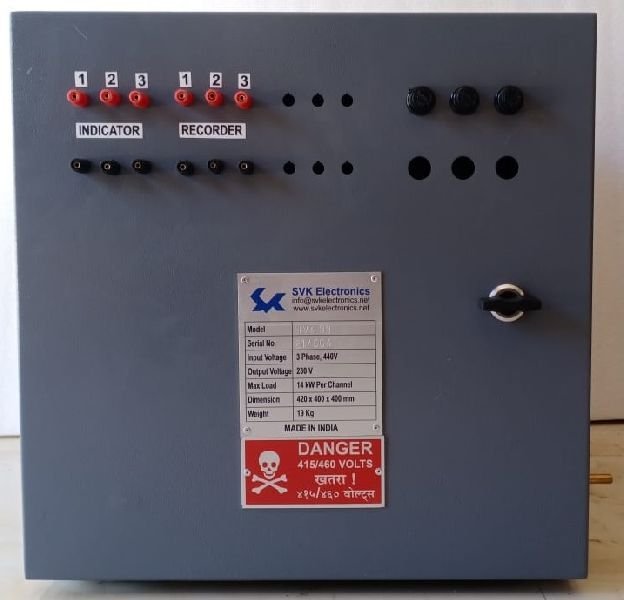

PWHT Control Panel
50,000 - 90,000 / Set
5 Piece (MOQ)
PWHT control panels are designed and constructed for reliability, safety and longer operation on site & in workshop in rugged conditions. The unit can be designed in 3,6 or 9 channels and each can be controlled individually or in combination.
Each of the three channels may be controlled individually using either energy regulators in manual mode or using PID controllers in automatic mode to gain control over rates of heating and cooling as well as soak conditions.
Secondary Business TypeExporters / Wholesale Suppliers
Year of Establishment2008
No. of Employees6 - 20
Annual TurnoverRs. 0.5 to 2.5 Crore Approx.
Ownership TypePartnership
GSTIN Number27ABGFS8332L1ZO
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
We are a manufacturer of PWHT equipment and accessories. We manufacture and supply heat treatment equipment. We have off the shelf products and can also customize as per requirements
