Tablet Making Machine Dealers

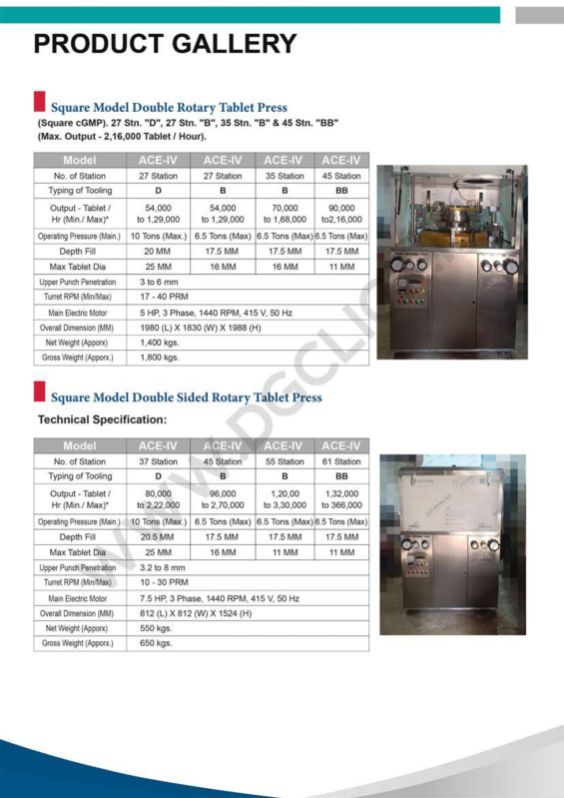

It is a square model/double sided rotary tablet Press/ promising unmatched quality for medium batch Production. Safety/enhanced performance/cleavability and ease of operation are its most significant features. The suitable model can be selected based on the tooling and output requirement from the 27, 35 & 45 station with “D”, “B” & “BB” tooling respectively. FEATURES :   • Robust with high quality Engineering. • Turret of SG IRON 500/7 Graded Casting. • Medium batch production. • Maximum output up to 216000 tablets per hour (for 45 Station). • Tablets of up to 23 mm Diameter for ‘D’ Tooling and 16 mm Diameter for ‘B’ Tooling. • Safe / Simple to operate and easy to maintain. • Designed as per cGMP standards. SPECIAL FEATURES FOR cGMP MODEL : • Disc Type Friction Clutch • Digital Tablet Counter • Gravity feeder (Feed frame) • Double Sided Lifting Cams • Interlocking at Upper Guard • Variable speed pulley. • Upper punch penetration system • Digital Ampere meter Technical Specifications :  cCMP

Coating Pan are made of stainless steel all contact parts of S.S 304, S.S 316, S.S 316L The unit is Equipped With suitable hot air Blower with thermostatic Control. No foundation requirement. Models available from 12” –24”-36”-48” - 60” Adaptability for lower size of coating pan & polishing pan. Validation documentation can be provided on request. Matching exhaust blower available. Heaters & blowers are electrically interlocked. Perforated bowls with suction device for increased productivity, energy conservation and dust control. Standard & GMP models are available.

Salient Features high quality gravure prints at rates up to 60,000 (size 2) capsules per hour, or 80,000 depending on sthe diameter of the tablets designed for long runs at high speed total ease of handling one operator can run several machines

we provide tablet drilling machine that is used to drill holes in the tablet for controlling the release of drug. We offer tablet drilling machine with automatic feeding system and color sensors to sense the drilling side and rejection chute. Whole size of our tablet drilling machine can be used to release the drug using osmosis technique. Moreover, tablet drilling machine can also be customized as per requirement of the customers. working description of tablet drilling machine for dual beam systems works as the rotating diskcapable to convey tablet from the hopper vibratory stand alone with tablet dispensing on to inclined disk to the laser drilling stationat drilling station, drilling of tablet coating will take placespecially built custom electronics will decide which laser to be fireda highly reliable color sensor can differentiate between the contrasts of a bilayer tablets two sidessensor is placed just 1 index before the laser drilling locationlaser fire sensor is constantly looking for any reflection from the tablet of the irradiating laser pulselaser pulses are also very closely located in the vicinity of laser beam delivery lensesa positive decision is made by the controlling electronics as whether a particular tablet has been drilled either from side a or side b if no drilling has taken place, then an irradiating pressure pulse undrilled tablet falls back in to the recirculation via reject chute drilled tablets are removed nozzle, with the help of pressure pulse in to the production binproduction is counted automatically why our tablet drilling machine? precision engineered machinehigh performancehighly efficient less consumption of energy.

These highly efficient machines can easily count and pack capsules & tablets counting machine of any size. The trouble free operations and accurate results of these semi-automatic machines help in maintaining GMP standards. The machine is provided with adjustable filler which can be elevated from 20 to 25 degrees, to facilitate entry of the products into the disc holes Capsule counting machine is fitted with superior quality delivery chutes which direct the product from the counting disc into the stainless steel filler tubes of various sizes, to suit different containers, suitable to work on 3 phase ac, 1 HP motor, 1440 rpm with variable speed drive.

Our Single Rotary Press is available only in GMP model. Some of the key features of Pharmachine Single Rotary Press are:   Centre Drive: Eliminates gear on turret and gearbox in compression zone thereby reducing downtime and maintenance. Pre-compression: Improves tablet friability and minimizes capping problem. Force Feeder: To minimize weight variation at high speeds

Tablet Making Machine Useful for making tablets upto 60 To 250 grams. Automatic compression and ejection device has been provided, actuated by revolution of the wheel drive. Feed and removal of tablets has also been made automatic. Eccentric pressure system has been applied for easy setting of thickness and hardness of tablets. A stainless steel hopper has been given. The unit has been mounted on a mild steel fabrication. Completed with one die and punch set made of chromium steel. Standard Equipments: The presses are supplied as complete units fitted with Die, Punch, Coating Pan, Fluid Bed Dryers, Oscillating Granulator, Packing Convertor Belt, Pump with Electric Motor, Pressure Gauge, Air Gauge, Limit Switch, Control Valve, Starter Oil tank(without oil), Micro switch, Roller Switch, Electric Panel Board etc.

The machine is double rotary tablet press with inbuilt pre-compression. All machine controls are adjustable from outside of the machine. The pre-compression is having a fix tonnage of 2 tons. The pressure roller is made of special material---- EN 31 forged steel and is mounted on the bearings. Pressure rollers have a unique sliding mechanism which makes the machine easily accessible during cleaning and maintenance. The pressure loading is designed in such a manner to achieve desired thickness of the tablet and can be controlled by knobs on the side of the machine. Overload release is already provided in the machine to safeguard against any overload in hydraulics. The machine is fitted with force feeders having variable frequency drive and force feeders are designed with three paddles for the optimum performance over the wide range of materials and tableting speeds. The drive of force feeders and turret is synchronized for better performance. The force feeder is easy to assemble/ disassemble. The material flow to the force feeder is also controlled by lockable butterfly valve. Salient Features: ELNP Turret and Upper cam tracks Force feeder (Aluminium alloy- hard anodized) Outside tablet parameter controls for tablet thickness and weight Unique press roll with sliding mechanism MHCOS:- Manual hydraulic compression overload system Auto lubrication Machine operation with Touch type HMI (Through PLC) Features: Top guards in acrylic with dust free sealing Pressure roller on bearing Hopper level sensor Turret with anti-corrosive ELNP - electroless Nickel plating Audio visual safety alarm system with logs for emergency and records Sliding press rolls for easy access to compression area Solid pillar and frame construction with ring and pinion arrangement Two way discharge chute for start/shut down rejection Optional Features Three piece turrets 15 H.P. Motor for special application Anti Vibration mount CE certification. 21 CFR part 11 compliance (SF) Bi Layer with force feeder Bi layer attachment with pneumatic sampling. Bi layer sampling rejection (Force Display) IQ, OQ, DQ documents

we have manufactured Tablet Coating System that is used in various pharmaceutical industries. Automatic Tablet Coating System offered by us is fabricated using latest technological procedures. Designed for the purpose of coating granules, tablets and pallets, our Perforated Tablet Coating System is known for its high-precision and performance. In addition to this, we ensure availability of Perforated Tablet Coating System in different specifications and grades suiting to the preferences of clients. We are counted as one of the major Perforated Tablet Coating System Manufacturers from India.

• superior quality graded cast iron body. • system for weight and pressure adjustment. • contact parts: s.s. 304/316. • stroke per minute: 45 nos. • max. Diameter of tablet: 38 mm. • depth of fill: 22 mm. • pressure: 21 tonnes. • size: 60 cm. X 50 cm. X ht. 125 cm. • weight (approx.): 500 kg. • electricals: 3 & 5 h.p. Motor- 3 - phase.

Legacy 6100, a single rotary High-speed tablet press is built for consistently delivering good quality tablets. The Legacy 6100 is designed to meet your quality and regulatory needs and has the flexibility to adapt to the stringent requirements of a demanding and dynamic pharmaceutical market. A tablet press with cGMP features, better accessibility to the compression zone, virtually tool free changeover and improved revenue optimization. The Legacy 6100 brings high speed, fully automated operations, providing cost effective solutions to the pharmaceutical industry. With 21 CFR Part 11 and audit trail compliance, it fulfills all the requirements prevailing in regulated markets. The Legacy 6100 is conceived by world-class designers and crafted with high-quality precision engineering to deliver you with better value through innovation.

  ECO III - Standard Model GMP model with 20 & 27 station in “D” & “B” tooling Electro magnetic clutch for heavy duty application ACVF Drive for the main motor High torque motor for better tablet compression Ideal for Effervescent tablets/Veterinary/Non pharma applications Sturdy center pillar construction to withstand high load application 25mm diameter round tablet compressed with ease General Specification Precision machined Electroless Nickel Plated Turret with lower punch seal Aluminum Hard Anodized Gravity Feeder Compression rollers tonnage capacity of 100kN/10tons for D & 65kN/6.5Tons B & BB Tooling Variable Upper Punch Penetration 1.5 to 8.0mm PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry Turret drive through robust external worm & worm gear system Tablet Parameter Control from out side of the machine through Controlling Knobs Sturdy center pillar construction to withstand high load application

We manufacture and offer Tablet Testing Machine which is fabricated using high grade material. The range of Tablet Testing Machines finds immense usage in various industries. Stringent quality tests are carried out at each stage of production such that dimensionally accurate Tablet Testing Machine is sent to the market. Tablet Testing Machines are offered to the clients at rock bottom prices within a stipulated time frame. Attributes : Precision engineeredWear and tear resistantFit for heavy duty operation DurableFine finish Extensively Used In : Pharmaceutical industriesChemical industries.

We offer Tablet Press Machines. Our range of tablet press machine is designed for pressing tablets from a variety of materials for small-scale production of nutraceuticals, herbals, medicines and other products. High in efficiency, these machines are designed to provide greater output in a short period of time.

We introduce ourselves as a customer driven and quality focussed manufacturers and exporters of single punch tablet punching machine that is uniquely designed for easy maintenance and offered at industry leading prices.
