Techno Ceiling Products Worli, Mumbai, Maharashtra

  600 x 600 mm Tiles300 x 1200 mm Tiles600 x 1200 mm Planks300 x 1200 mm Planks

Application : Security Use

Feature : Good Quality

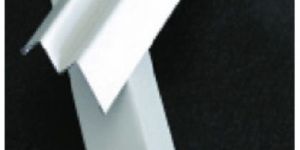

Techno Suspension System comes along with a wide range of perimeter trims made out of Pre-coated GI as well as aluminum extruded profile. They are available in standard Black and White colours. Perimeter Trims/Wall AngleFor T-24 GridFor T-15 GridAluminium Wall Angle Length – 3000mm20 x 22, 24 x 24 – White / Black14 x 20 – White / Black14 x 20 W-Angle 10 x 10 x 10 x 15 mm Slotted Angle 20 x 22 mm

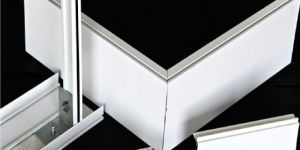

Techno has developed a range of drop Aluminum ceiling bands of various heights and colours. Techno CloudTM profiles are Aluminum ceiling extruded profiles specifically engineered and designed to take care of vertical drops and their edges in False Ceilings. They help in creating beautiful and well finished edges for drops and have a feeling of lightness and floating below the other part of false ceiling without seeing the suspension wires. Full range of accessories required for installing and fixing of Techno CloudTM profiles have been developed and made available on demand. The various size options:A) 50 x 20 mmB) 56 x 20 mmC) 100 x 20 mm It is further possible to use these in combination since they are designed to interlock on each other. Accessories are made in Galvanized steel in the following dimensions. A) Corner Connector (Right Angle)B) Straight ConnectorC) T-bar Connector These profiles are also available in circular shapes of diameters more than 1200mm.

OperaBlack & White Groove Suspension Ceiling SystemMain Runner15 x 35 x 3000 / 15 x 42 x 3000 mmCross Runner15 x 35 x 1200 / 15 x 42 x 1200 mm15 x 35 x 600 / 15 x 42 x 600 mmWall Angle14 x 20 x 3000 mmColours of CappingWhite / BlackPossible ModulesWhite Grid with White GrooveWhite Grid with Black Groove

Techno Ceiling offers a wide range of tiles in stainless steel with various sizes & finishes. Lay-In Tiles with 15mm SS T-Grids are available.A combination of T-Grid with SS capping and Lay-In Tiles made out of SS 304 of various finishes. Clip-In Tiles: SS Clip in tiles with various finishes & sizes are possible. Sizes 600 x 600 mm300 x 1200 mm Thickness 0.50 mm Finishes SS304 Brush finish ApplicationAreas 1. Clean Rooms2. Operation Theatres3. Kitchens

Besides the utility based ceiling in metal tiles Techno is glad to introduce a range of architectural & durable open cell ceiling options, open cell ceiling and perforated metal ceilings are profiles made from aluminum roll formed sheets & are introduced to form various cell sizes. Cell Size 75 x 75 / 100 x 100 / 150 x 150 / 200 x 200 mm75 x 150 / 200 x 100 mmAny other size and colour as per requirement Section Size 50 x 10 / 40 x 10 mm Materials Aluminium / GI Powder-coated / Pre-coated GI

Application : Commercial, Residential

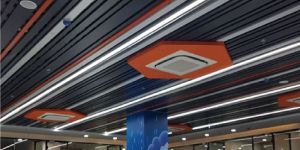

The key feature of this system is the endless permutations and combinations of panel widths and depths which paves the way for architects to create unique designs by using the same system repeatedly. Section Size Multi-DW: 60 / 110 / 210 / 235 mmH: 23 mmClear Gap: 18/38mm Multi-WDHxW: 25×100 / 75×75 / 125×50 /175×25 mmClear Gap: 25mm

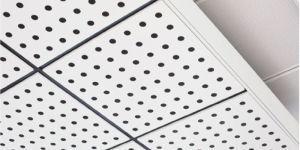

Sizes 600 x 600 mm Tiles600 x 1200 mm Planks300 x 1200 mm Planks Edges Tray TilesTegular Tiles Thickness PPGI: 0.45/0.50 mmSS 304: 0.50 mm Materials Pre-coated GI Types Plain TilesPerforated Tiles (1.8mm & 2.3 mm diameter)

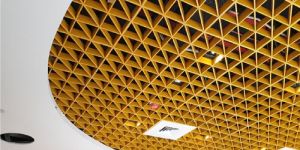

Techno Diagonal CellTM is specially designed to break free from the monotonous box design. It is a simple yet sleek system which has been developed in-house by engineers at Techno. Cell Size 200 x 200 mm Section Size 50 x 10 mm Materials Aluminium / GI Powder-coated / Pre-coated GI

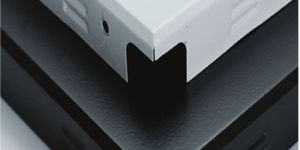

Clip in tiles are press fit tiles fixed to the concealed clip in profile which is suspended from the slab by means of the dash fastener & GI wire with level adjustment. Sizes 600 x 600 mm Tiles600 x 1200 mm Panels300 x 1200 mm Panels Edges Square EdgeBeveled Edge Materials Pre-coated GI Types Plain TilesPerforated Tiles (1.8 mm diameter)

Techno has developed a range of drop Aluminum ceiling bands of various heights and colours. Techno CloudTM profiles are Aluminum ceiling extruded profiles specifically engineered and designed to take care of vertical drops and their edges in False Ceilings. They help in creating beautiful and well finished edges for drops and have a feeling of lightness and floating below the other part of false ceiling without seeing the suspension wires. Full range of accessories required for installing and fixing of Techno CloudTM profiles have been developed and made available on demand.   The various size options:A) 50 x 20 mmB) 56 x 20 mmC) 100 x 20 mm

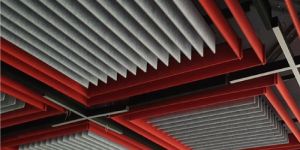

Techno Acoustic Baffles offer an innovative acoustic baffle ceiling solution that can maximize the design quotient without compromising on the degree of noise reduction. Baffles are highly customizable and can turn your creative imagination into reality. Sound Absorption: Products tested by ARAINRC value: Up to 0.9 NRC Composition 100% PET Standard Thickness 10mm/20mm/30mm/40mm/50mm/60mm/70mm – can be customized as per design Standard Height 50mm/80mm/100mm/150mm/200mm/250mm- can be customized as per design Customization Available as per requirement Flammability Tested as per EN-13501 by SGS
