Techno Pharma Associates Palghar, Mumbai, Maharashtra

Brand Name : Techno Pharma

Total Carbohydrate : 12 months

Country of Origin : India

Number Of Flower : Tablet Counting Machine

Application : Tablet Counting

Automatic Grade : Automatic

We offer semiautomatic capsule filling machine. Outstanding features � loader gets disengaged automatically after one complete rotation of loading ring. � plc based machine. � auger with four speeds to fill different type of powders & pellets. � fill weight accuracy +3 % � auto-drug hopper in-feed mechanism reduces weight variations & improves productivity. � low noise & maintenance � machine is supplied with any one size capsule change parts, 03 nos. Extra augers & frl. Specifications moc of loading rings lm4 aluminum alloy no of holes ring size 00 size 0 size 1,2 size 3,4 & 5 360 480 540 600 out put 25,000 to 30,000 capsules hour loader drive 0.25 hp, 380440 volts, 3ph, 50 hz auger drive 1.5 hp, 380440 volts, 3ph, 50 hz filling table drive 0.5 hp, 380440 volts, 3ph, 50 hz vacuum 500mm(20�) of hg. At 1000 ltrs. Min. (30 cfm) compressed air 200 ltrs.min. (8 cfm) at 100 psl dimension (lx wx h) 1500mm*1000mm*1600mm approx weight 900 kgs.

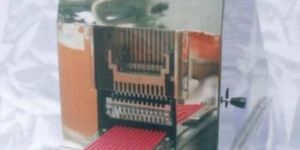

Mass OUTPUT : Fills 300-hole plate s. The loader can Fill 4 to 5 manual capsule filling machine trays depending on the quality Of the capsule & the operator skill. Drive :0.25 HP 3-phase 50 Cycles Dimension : L 585XW525XH1015mm Weight : 120 Kg. UNIQUE FEATURES: Low investment. High output. Available in GMP model with SS-304 claded-Body. Simple to operate. Can be handled by semiskilled personnel. Easily removable parts. Spares readily available. Sturdy fabrication - assured durability and long service. Designed to fill all standard - size capsules. Automatic Empty capsules Tray loader with manual filling machine: � Loader with one MCF - 9000 capsuleshr with 2 operators. � Loader with 2 MCF - 18000 capsuleshr with 3 operators. � Loader with 3 MCF - 27000 capsuleshr with 4 operators.

We are offering outstanding features- ecofill-200 • loader gets disengaged automatically after one complete rotation of loading ring. • plc based machine. • auger with four speeds to fill different type of powders & pellets. • fill weight accuracy +3 % • auto-drug hopper in-feed mechanism reduces weight variations & improves productivity. • low noise & maintenance • machine is supplied with any one size capsule change parts, 03 nos. Extra augers & frl. specifications moc of loading rings lm4 aluminum alloy no of holes ring size 00 size 0 size 1,2 size 3,4 & 5 360 480 540 600 out put 35,000 to 40,000 capsules hour loader drive 0.5 hp, 380440 volts, 3ph, 50 hz auger drive 1.5 hp, 380440 volts, 3ph, 50 hz filling table drive 0.5 hp, 380440 volts, 3ph, 50 hz vacuum pump vacuum 3 hp, 380440 volts, 3 ph, 50 hz500mm(20”) of hg. At compressed air 200 ltrs.min. (8 cfm) at 100 psl dimension (lx wx h) 2000mm*1000mm*1600mm approx weight 1100 kgs.

We are offering the machine is designed for powder filling into hard gelatin capsules. Ideally suited for medium large scale pharmaceutical, ayurvedic companies, r& d laboratories. all the contact part are made of stainless steel 304316 quality. Out put: 8000 capsule perhour for capsules size 00 to 5 for 300 holes mc. Models: mf.-300 ,gmp model, body is fabricated of s.s.304 quality. Interchangeability: interchangeable parts can be supplied for all standard size capsules. Recommended interchangeability for optimum output : 00012-345. Special features: • functional design for simplified operation - giving precise results with negligible rejection. • sturdy, easily movable. • easily dismantled and reassembled, even by unskilled labour. • excellent cost-benefit ratio. may be used for trial runs ( r & d ), smaller batches .

Brand Name : MF-300

Country of Origin : Indian

GMP MODEL MANUAL CAPSULES FILLING MACHINE 300 HOLES, The machine is designed for powder filling into hard gelatin capsules. Ideally suited for medium large scale pharmaceutical, Ayurvedic Companies, R& D laboratories. All the contact part are made of Stainless steel 304316 quality. OUT PUT: 8000 capsule perhour for capsules size 00 to 5 for 300 holes mc. MODELS: MF.-300 ,GMP model, body is fabricated of S.S.304 quality. INTERCHANGEABILITY: Interchangeable parts can be supplied for all standard size capsules. Recommended interchangeability for optimum output : 00012-345. SPECIAL FEATURES: � Functional design for simplified operation - giving precise Results with negligible rejection. � Sturdy, easily movable. � Easily dismantled and reassembled, even by unskilled Labour. � Excellent cost-benefit ratio. May be used for trial runs ( R & D ), smaller batches .

Condition : New

Country of Origin : Indian

Material : Stainless Steel

Brand Name : Techno Pharma

Power Source : Electric

Silent Features :  Machine is best suitable for on - line automatic sorting of empty capsules. Sorts loose caps, loose bodies and diametrical defective capsules  Suitable and Proven on any type of capsules manufacturing plants like cherybural, Errawat Pharma , Safrroys, or china auto plants  Highly demanded machine so far about 125 machines running all over the world.  Can be directly installed on-line with EHGC manufacturing machine having speed up to 50 BPM  Best sorting efficiency for sorting of loose caps and body along with other diametrical deformation defects like mashed capsules, heavy dents, heavy burrs, collets pinch, heavy bubble etc.  Electromagnetic Adjustable Vibration to the upper part of the sorter enables the sorting of loose caps diametrically defective capsules.  Special rotating drum for effective sorting of loose bodies provided.  Special easy removable collective arrangement for defective capsules.  Without any pocket holes ensuring easy line clearance and avoiding any chance of foreign capsules.  Rigid, Dynamically balanced and having castors arrangement for its easy movement  Available in any size of capsules #0, 1 , 2 , 3 , 4 and 00.  Overall dimentions : length – 34 “ width-14 “ height - 31 “  Power requirement ; 240 Volts, Single phase

OUTPUT : Fills 300-hole plate s. The loader can Fill 4 to 5 manual capsule filling machine trays depending on the quality Of the capsule & the operator skill. Drive :0.25 HP 3-phase 50 Cycles Dimension : L 585XW525XH1015mm Weight : 120 Kg. UNIQUE FEATURES: Low investment. High output. Available in GMP model with SS-304 claded-Body. Simple to operate. Can be handled by semiskilled personnel. Easily removable parts. Spares readily available. Sturdy fabrication - assured durability and long service. Designed to fill all standard - size capsules. Automatic Empty capsules Tray loader with manual filling machine: • Loader with one MCF - 9000 capsuleshr with 2 operators. • Loader with 2 MCF - 18000 capsuleshr with 3 operators. • Loader with 3 MCF - 27000 capsuleshr with 4 operators.

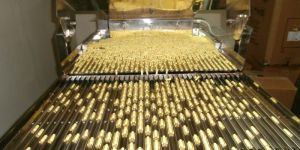

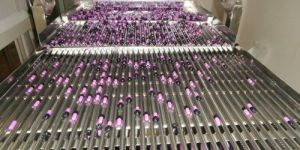

We offer automatic capsules areation system. Outstanding features 1. assured uniform aeration for every ehgc by automatic online aeration providing standard quality product of ehgc without any process variation. Capsules quality variability due to uneven areation is reduced to a great extent. The problems like out of roundness, ovality, brittleness will be totally eliminated. 2. capsules from the auto plant are directly transferred to any other hall sorting area by the unit horizontally or vertically (to any floor ) i.e. Hands free transfer to targeted area including aeration of the same. You can occupy your existing ground floor area as a exclusively for manufacturing and expand to top floors for other activities easily. 3. totally eliminates the manual handling of capsules at manufacturing area. 4. main auto plant operators gets more and adequate time to focus on their prime duty of machine setting and trouble shooting as they has nothing to do else. Also no of operators per plant can be reduced. 5. ehgc manufacturing hall will be totally free from still drum, aeration stands , trolleys and ready capsules waiting for transfer to other hall. 6. since the transfer of the capsules from one hall to another is by pneumatic, no additional workforce is required for this. 7. maintaining the required rh at manufacturing hall is greatly facilitate as need of frequent opening of doors of the production hall is drastically reduced as no trolleys used for transfer of capsules being manufactured. 8. better and easy control over inventory as every chance of manual error is eliminated. 9. online aeration of capsules provides directly the hands free empty capsules for packing printing or sorting to any of the area irrespective to the manufacturing halls. 10. the machine is user friendly and is available for any of the capsules size 00 , 0 , 1 , 2 , 3 and 4 and is suitable for the capsules auto plant
