Technovalue solutions pvt ltd Bhiwandi, Mumbai, Maharashtra

Brand Name : FLIR

Material : Plastic

Number Of Flower : Imager

FLIR E75, E85, and E95 cameras offer the superior resolution and range performance needed to quickly identify hot spots and discover potential points of failure in electrical distribution and mechanical systems. With up to 161,472 pixel resolution and a larger, more vibrant LCD screen than any other pistol-grip thermal camera, the Exx-Series makes it easier than ever to diagnose problems – even at a distance. Avoid costly shutdowns and lost production time through regular predictive maintenance routines with these rugged, intuitive cameras.

Size : 1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in)

Number Of Flower : Uncooled microbolometer, 17 µm

Brand Name : FLIR Systems

Technology : Infrared

Sensor : Uncooled microbolometer, 17 µm

Country of Origin : USA

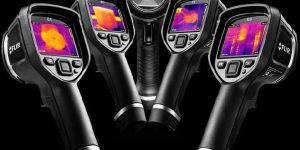

FLIR E4, E5, E6, E8 with MSX® enhancement Display: 3"color LCD Onboard 640 x 480 digital camera Easy-to-use, weighs only 1.2lbs, 2% accuracy File format: Radiometric jpg Swappable Li-ion battery with 4 hour life Spot measurement mode Simultaneous storage of IRvisualMSX images Picture in Picture image (E6 and E8) Area Box measurement mode (E5, E6 and E8) Each includes power supplycharger with four plugs, rechargeable battery, FLIR Tools software, USB cable, and hard transport case. E8 also includes an extra battery and external battery charger. FLIR E4 4,800 pixels (80 x 60) FLIR E5 10,800 pixels (120 x 90) FLIR E6 19,200 pixels (160 x 120) FLIR E8 76,800 pixels (320 x 240)

• 640 x 480 VGA pixel resolution* • Macro & long focal length optics available • Easy-to-transfer SD card • 15,000 JPEG images • Up to 4 hours AVI video • 30 fps frame rate (NTSC & PAL) • Audio annotation * 320 x 240 for 4mm camera

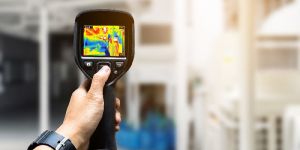

Thermography is a method of inspecting electrical and mechanical equipment by obtaining heat distribution pictures. This inspection method is based on the fact that most components in a system show an increase in temperature when malfunctioning. The increase in temperature in an electrical circuit could be due to loose connections or a worn bearing in the case of mechanical equipment. By observing the heat patterns in operating system components, faults can be located and their seriousness evaluated. Principle of thermography thermography is a method of inspecting electrical and mechanical equipment by obtaining heat distribution pictures. This inspection method is based on the fact that most components in a system show an increase in temperature when malfunctioning. The increase in temperature in an electrical circuit could be due to loose connections or a worn bearing in the case of mechanical equipment. By observing the heat patterns in operating system components, faults can be located and their seriousness evaluated. Temperature is the physical property that quantitatively expresses the common notations of hot & cold. Every object emits energy in the electromagnetic spectrum. The wavelength of the energy differs depending on materials. As shown below; if the wavelength is in the range between 400 nm to 720 nm i.e. Visible range, then the body would be visible. If the energy emitted is having wavelength beyond 720 nm, then it would be invisible. This infrared energy can be captured using thermal imager.
