Thermocouples Dealers in Goregaon West, Mumbai

we are a far famed optimum quality thermocouples manufacturer. our vast range of excellent quality thermocouples is available on very economical rates. we have adequate arrangements to manufacture a wide product line of highly dependable thermocouple. the huge range of thermocouple consist of transition style thermocouple, low cost hollow tube thermocouple, melt bolt thermocouples, rigid bayonet thermocouples, roller wheel moving surface thermocouple and spring adjustable bayonet thermocouples etc. our entire production is paradigm of our excellent quality and hi tech technologies.

J / K / T / E RTD's R / S for high temperatureSimplex / DuplexPotseal / Transition Joint / Plug Socket / Ceramic Block / Flying Leads Fast Response, Accurate  Grounded / Ungrounded  SS304 / SS316 / Inconel Sheaths  High Temperature Ceramic Tubes Sheaths.

SHANTI INDUSTRIES (INDIA) have customized High/low Temperature Thermocouple Type ‘T ‘ up to 400°C, ‘J’ up to 800°C, ‘K’ up to1200°C Available range of -50 to 1200 ºC. assemblies find applications in temperature measurement of Furnace, Oven and other High/ low Temperature Application of corrosive or non-corrosive nature. High Temperature/ Pressure assemblies with SS thermo wells and weld on flanges are offered on request. A wide Variety of designs, diameters, lengths and materials of sheaths ( SS) can be offered along with standard designs. High precision test Thermocouples duly calibrated from recognized test laboratories. Available with cable type Teflon / Teflon or SS shielded with teflon or PVC

We are offering melt bolt thermocouples. Stainless steel melt bolt stainless steel probe fiberglass or mgo insulated probe type j and k thermocouples for use up to 482°c type t thermocouple for use up to 371°c.

TS thermocouple head standard size, has cast alloy aluminum TS Weight 50g, 74g, 68g, 78g . This serial enclosure is widely used in the thermocouple and RTD sensorsMaterial: Alloy-Aluminum Type: TS Cat No: TS-O Weight 50g TS-2P-B Weight 74g TS-2P-C Weight 78g TS-3P-B Weight 68g

It employes two dissimilar metals When two such dissimilar metals welded together at one end and subjected to heat, it develops a small DC voltage (EMF), corresponding to temperature difference between hot junction (measuring junction) and cold junction (reference junction). The temperature - EMF characteristics have an established pattern for different type of hermocouple elements like, T, J, K, N, E, R, S, etc. Temperature - EMF characteristics conform to ANSI MC 96.1 / IEC 584 / DIN 43710 standards. It employs high purity electrical resistance wire, non inductively wound on ceramic or glass base. When RTD element is subjected to heat, it changes its electrical resistance value, corresponding to variation in temperature and its thermal coefficient (œ) (Alpha). The temperature resistance characteristics have an established pattern for different resistance elements, like Copper, Nickel, Platinum etc. Most commonly used resistance element is Platinum known as Pt 100 (100 ohms at 0°C). Temperature resistance characteristics conform to DIN 43760 / IEC 751 / BSS 1904 / JIS C1604 standards. Conventional thermocouple or RTD elements pass through multi bore insulators, encased in outer protection sheath and connected to temperature measuring instrument. Mineral insulated (MI) sensors are insulated with tightly compacted high purity magnesium oxide powder, simplex or duplex, enclosed in various metal sheaths and connected to temperature measuring intrument.

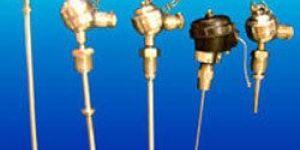

We are one of the leading organizations engaged in manufacturing and supplying premium quality Industrial Thermocouples. These offered products are manufactured using optimum quality raw material, which is procured from the noteworthy vendors of the market.

Thermocouple, Samplers, Measuring Instruments, Refractorie

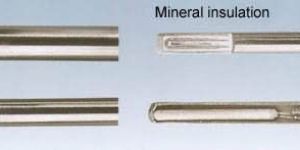

Mineral Insulated Thermocouples, Thin Film Elements, Thermocouple Assembl

Thermocouples Heads, Thermocouple Wires, Temperature Sensors, Thermocouple

Bayonet Adapters, Neon Indicator Light

Thermocoupl

Thermocouples, Process Control Instruments, Resistance Temperature Detector

Thermocouples, Industrial Heating Elements, Ceramic Heaters, Industrial Ove

Thermocouple, Cables, Computer Cable

Thermocouple

J Type Thermocouples, Platinum Thermocouple, PT1000 Senso

Thermocouple, Thermostat

Mineral Insulated Thermocouple, Sillimanite Bricks, Strip Heate

Thermocouple Handle Probes, Electrical Accessories, Cap

The Skin Thermocouples is Designed to Sense Surface Temperature of Boiler or Process Tubes. Typical Skin Thermocouple Assembly comprises of MI Thermocouple, welding pad and strap, intermediate loop (twice pipe diameter), adjustable threaded adapter and heavy duty enclosure.
