Tranzil Engineers Dahisar, Mumbai, Maharashtra

Number Of Flower : Automatic

Number Of Flower : Automatic

Purity : Fully automated operations, Compact design, High performance .

Number Of Flower : Low Torque, High Torque

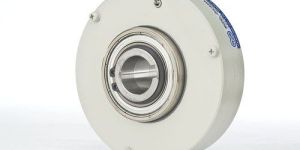

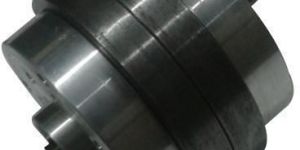

We are offering magnetic powder clutch. “tranzil” presents powder clutches for various applications demanding torque & tension control for accurately & precisely controlling tension on various kind of substrates like paper, film (bopppolyesterpvc ldpehmhd etc.) & foil. The range of powder clutches produced by tranzil engineers satisfy all demanding torque control applications and can be used for controlling the tension of all materials including paper, plastic film, foil, cardboard, textiles, non-wovens, rubber and wirecable.“precision torque control” on all types of rewinds, coilers, spoolers & re-reelers is essential to ensure consistent product quality and to maximize productivity by saving manpower required on the manual systems. “tranzil” series of powder brakes and clutches are manufactured in wide rating range, form tiny 0.2 kg-m (2 nm) to massive 40 kg-m (400nm). These are true torque control devices. Torque is strictly proportional to excitation current applied to coil. These devices come with matching electronics to meet your most exacting applications such as torque control, tension control, stretch control, torque limit & many more. Powder brakes & clutches are torque control devices. Torque is controlled by varying the excitation current. Torque delivered by powder devices is strictly proportional to excitation. These devices has minimal drag torque, i.e. At zero excitation, torque is minimal and near to zero. This devices are ideal for high torque & low power applications salient features: available in various cooling versions such as self cooled, forced air cooled, fan cooled & water cooled available in various mounting types such as foot mount, flange mount, hollow etc. Rewind torque can be adjusted infinitely variable in the range 1:30 deliver rated torque at zero speed high torque independent from the slip speed at low control power fast response due to low inertia & set torque maintained independent of speed

Brand Name : Tranzil TE

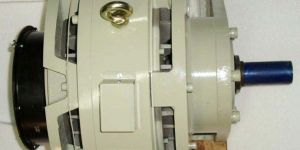

we are offering magnetic powder brake. “tranzil” presents powder brakes for various applications demanding torque & tension control for accurately & precisely controlling tension on various kind of substrates like paper, film (bopppolyesterpvc ldpehmhd etc.) & foil. the range of powder brakes produced by tranzil engineers satisfy all demanding torque control applications and can be used for controlling the tension of all materials including paper, plastic film, foil, cardboard, textiles, non-wovens, rubber and wirecable. “precision torque control” on all types of unwinds, de-coilers, pay-offs, spoolers & re-reelers is essential to ensure consistent product quality and to maximize productivity by saving manpower required on the manual systems. “tranzil” series of powder brakes and clutches are manufactured in wide rating range, form tiny 0.2 kg-m (2 nm) to massive 100 kg-m (1000nm). these are true torque control devices. torque is strictly proportional to excitation current applied to coil. these devices come with matching electronics to meet your most exacting applications such as torque control, tension control, stretch control, torque limit & many more. powder brakes & clutches are torque control devices. torque is controlled by varying the excitation current. torque delivered by powder devices is strictly proportional to excitation. these devices has minimal drag torque, i.e. at zero excitation, torque is minimal and near to zero. this devices are ideal for high torque & low power applications. salient features: available in various cooling versions such as self cooled, forced air cooled, fan cooled & water cooled available in various mounting types such as foot mount, flange mount, hollow etc. braking torque can be adjusted infinitely variable in the range 1:30 deliver rated torque at zero speed high torque independent from the slip speed at low control power fast response due to low inertia & set torque maintained independent of speed

Brand Name : Tranzil TE

Size : 12 inch

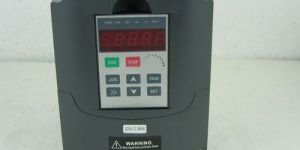

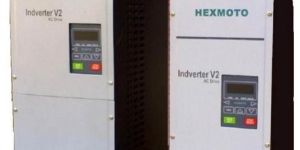

We are offering digital ac variable frequency drive. Variable frequency drive is a dsp based general purpose ac drive with state-of-the-art technology and incorporates the latest semiconductor power devices, with following salient features: indigenously designed ac drives to with-stand indian power conditions for motor control space vector modulation technique dc bus ripple cancellation low output thd (total harmonic distortion) output short circuit protection & various fault monitoring custom designed human interface (hmi) specifications ratings available 0.37 kw to 600 kw 3 phase, 380v415v480v, 5060hz, input rating power supply, tolerance voltage: +10%, -15%, frequency +-5%, imbalance less than 3% output voltage 3 phase, 380v to 480v (proportional to input voltage) output frequency range 1hz to 400hz frequency stability digital setting: +-0.01% of max. Frequency analog setting: +-0.2% of max. Frequency (at temperatures -10°c to +50°c ambient) output rating overload capacity 150% for one minute control system space vector modulation with bus ripple compensation adjustable current limit programmable 30 to 200% of drive rated current starting frequency 1 to 6hz adjustable base frequency 30 to 400hz carrier frequency 2khz to 6khz programmable in steps of 1khz jog function available with programmable speedaccdec catch on fly drive will search the running motor speed, catches it and then proceeds to the set speed. Jump frequency one jump frequency control with adjustable jump range dc injection braking

Brand Name : Hexmoto

Brand Name : Julie

Size : Standard width of 300mm & 350mm, Custom width available

Variable Frequency Drive is a DSP based general purpose AC Drive with state-of-the-art. Technology and incorporates the latest semiconductor power devices, with following salient features : Indigenously designed AC drives to with-stand Indian Power Conditions for Motor ControlSpace Vector Modulation TechniqueDC Bus Ripple cancellationLow output THD (total harmonic distortion)Output short circuit protection & various fault monitoring Custom designed human interface (HMI) Specifications: Ratings Available 0.37 kW to 600 kW 3 Phase, 380V/415V/480V, 50/60Hz, Input Rating Power Supply,Tolerance Voltage : +10%, -15%,Frequency +/-5%, Imbalance less than 3%Output Voltage 3 Phase, 380V to 480V (Proportional to input voltage)Output Frequency Range 1Hz to 400HzFrequency Stability Digital setting : +/-0.01% of max. FrequencyAnalog setting : +/-0.2% of max. Frequency (at temperatures -10oC to +50oC ambient)Output Rating Overload Capacity 150% for one minuteControl system Space vector modulation with bus ripple compensationAdjustable current limit Programmable 30 to 200% of drive rated currentStarting frequency 1 to 6Hz adjustableBase Frequency 30 to 400HzCarrier frequency 2kHz to 6kHz programmable in steps of 1kHzJog function Available with programmable speed/Acc/DecCatch on fly Drive will search the running Motor speed, catches it and then proceeds to the set speed.Jump frequency One jump frequency control with adjustable jump range DC injection Braking

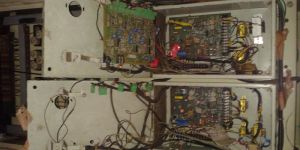

We carry out total repairs/replacement any kind of installations involving: magnetic powder/ Clutch Repairs & replacement of Dynaspede make tension control models MT-21, AT-21 & AT-23 Repairs & replacement of Re make tension control models T1 or older versions Repairs & replacement of Puretronics make tension controller Repairs & replacement of Alteem make tension controller model WTC-2000 Supply of spare manual tension controls for powder brakes/ clutches Supply of spare speed controller & tension controller for Eddy Current Drives We are taking care of support function for all Dynaspede installations, replacing the components wherever required and we also have tie-ups to carry out the repairs of AC Drives (any make). Unfortunately, Dynaspede has phased out all their earlier series of tension controllers and hence, rather than getting in to repairs of such controllers, we have successfully supplied and commissioned our tension controllers.

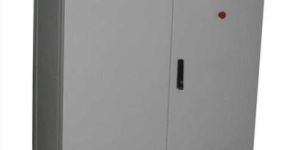

We would like to introduce us as one of the most experienced free-lancer & accessories supplier firm working for the printing & packaging industry. having worked in reputed organizations like dynaspede, schneider electric & eurotherm (now known as parker ssd), we are a team of engineers having more than 20 years of total experience in the industry. Thanks to a very good response from convertors like you, we have started free-lancing business along with manufacturing of specific systems like: tension controls (powder brakes/ powder clutches, load cells, automatic tension controller & pneumatic brakes) multi-drive panels (ac/dc drives, eddy current drives) in fact, we would like to take privilege in informing you that we are the only other manufacturer of powder brakes/clutches in india besides dynaspede. we also carry out total repairs/replacement for old dynaspede installations which includes: supply of magnetic powder along with proper selection of the brakes repairs & replacement of dynaspede make tension control models mt-21, at-21 & at-23 supply of spare manual tension controls for powder brakes/clutches supply of spare speed controller & tension controller for eddy current drives we are taking care of support function for all dynaspede installations, replacing the components wherever required and we also have tie-ups to carry out the repairs of ac drives (any make). Unfortunately, dynaspede has phased out all their earlier series of tension controllers and hence, rather than getting in to repairs of such controllers, we have successfully supplied and commissioned our tension controllers.
