Union Engineering Co. Lbs Marg, Mumbai, Maharashtra

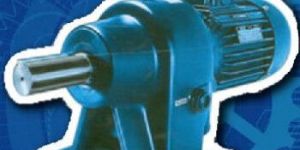

UNION ENGINEERING CO., SINCE 1974 offers exclusive range of REMI GEAREDMOTORS.   RATINGS : ■ KW 0.12 to KW 7.5. ■  HP 0.16 TO HP 10.    OUTPUT SPEED ( RPM ) : ■ 1.5 to 500.    MOUNTINGS : ■ FOOT (B3) & FLANGE (B5).

Finishing : Polished

Packaging Type : Wooden Box, Cardboard / Wooden Box.

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Brand Name : Remi

Material : Cast Iron

Condition : New

Phase : Three Phase

Total Carbohydrate : 1 Year

Country of Origin : India

No. of Poles : 6 & 8 Poles

Insulation Type : Class F

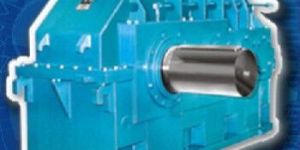

UNION ENGINEERING CO.,  A PROMINENT NAME IN THE INDUSTRY SINCE 1974., HAS A MASSIVE CLIENTELE TO WHOM IT HAS BEEN SUPPLYING HELICAL GEARBOXES AS PER THEIR SPECIFIC REQUIREMENTS.   THE HIGH TECHNICALITY IN THE STANDARD OF ENGINEERING DUE TO ITS CONSTRUCTION AND THE DESIGN (MODULAR) GIVES AN OPTIMAL PERFORMANCE OUTPUT.   SPECIALIZED IN PROVIDING PRIZE-WINNING HELICAL GEARBOXES & BEVEL HELICAL GEARBOXES, OUR COMPANY PROVIDES A HIGH DEGREE OF EFFICIENCY GEARBOXES TO OUR CLIENTS.   AS TODAY’S VARIOUS APPLICATIONS DEMANDS IN VARIOUS POWER SECTORS CAN BE MET BY THESE MEDIUM / HEAVY DUTY GEARBOXES.   THE REPLACE-ABILITY OF VARIOUS ASSEMBLIES AND THE MAINTENANCE IS DONE BY A DILIGENT TEAM OF UECO., WHICH HAS HIGHLY SKILLED MANPOWER FOR THE MAINTENANCE OF GEARBOXES.   HELICAL GEAR PRODUCT SPECIFICATION :   MODEL : ● H1 TO H4.   RATIO : ● 1.22 TO 657.   TORQUE (kNm) : ● 0.4 TO 350 kNm.   POWER RATING (KW) : ● UP TO 5573.

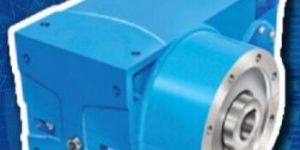

union engineering co.,  a prominent name in the industry since 1974., offers single screw extruder gear units which are quite capable to transmit the high torque required for pressurising and plasticising moulding materials and also to absorb the high axial thrust load through built-in spherical roller thrust bearing. the axial bearing housing is standardised to accommodate suitable thrust bearings and corresponding output shafts with key are splined. the parallel shaft double reduction models – horizontal and vertical serve the characteristic requirements of the extruder gearbox.to incorporate the thrust screw , different thrust bearings with different bores are mounted on the output shafts (hollow) .the modular design permits the interchangeability of the parts. we are engaged in providing a wide range of extruder gearboxes, which is used in plastic and pvc extrusion.  these ghe series greaves make gearboxes are high performing and easy to install. the high torque necessary for plasticizing and pressurizing molding material can be transmitted with the help of these gear units. through built-in spherical roller thrust bearing, the gear unit transmits high torque to absorb the high axial thrust load. moreover, to accommodate suitable thrust bearings, the axial bearing housing is standardized and the corresponding output shafts which come with key are splined. owing to our experience and coupled with modern technology and experience, we offer the finest extruder gearboxes of exceptional quality & premium choice for dependable services to our clientele.   extruder gear product specification : ● premium greaves make “ghe” series gearboxes give high performance. ● the built-in spherical roller thrust bearing absorb the high axial thrust load , allowing these gear units to transmit the high torque necessary for plasticizing and pressurizing molding material. ● easy to install. ● to accomodate the suitable thrust bearings,the axial bearing housing is standardized and the corresponding output shafts that come with the key are splined. ● extruder gearboxes are used in plastic and pvc extrusion. ● shaft extension keyway : is:2048. ● maximum operating reliability. ● low noise and smooth running.

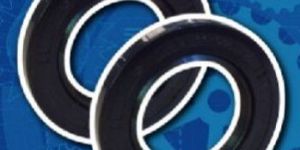

WE MASTERS IN OFFERING WIDE RANGE OF OIL SEALS FOR ALL KIND & TYPES OF INDUSTRIAL GEARBOXES & PUMPS WHICH ARE KNOWN FOR THEIR FEATURES LIKE DURABILITY & PRECISION.   WE PROVIDE OIL SEALS WHICH ARE MANUFACTURED FROM FINEST QUALITY OF RAW MATERIAL LEADING TO LONG LIFE AND HIGH PERFORMANCE AT REASONABLE PRICES.   OIL SEALS EXCLUSIVELY OFFERRED ARE FOR BRANDED INDUSTRIAL GEARBOXES & PUMPS., THE FEW OF WHICH HAS BEEN LISTED BELOW :    BRANDS : ● CPEC GEARBOXES ● RADICON GREAVES GEARBOXES ● ELECON GEARBOXES ● SHACON GEARBOXES ● OTHER GEARBOXES    TYPES : ● RUBBER & MECHANICAL OIL SEALS.    SIZES : ● CPEC (R, RV MODEL) : 11, 17, 22, 30, 35, 40, 50, 60, 70, 80, 90, 100, 120, 140, 170. ● RADICON GREAVES : 112, 162, 200, 237, 287, 337, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”. ● ELECON : 1 5/8, 1 ¾, 2, 2 ½, 3, 3 ½, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”.    RATIO : ● MIN. 5 : 1 to MAX. 70 : 1.   NOTE : WE PROVIDE SPARES FOR GEARBOXES AS PER STANDARD & NON STANDARD REQUIREMENTS.

union engineering co., since 1974 offers exclusive range of remi gearedmotors.   ratings : ■ kw 0.12 to kw 30. ■ hp 0.16 to hp 40.   output speed ( rpm ) : ■ 1.5 to 500.   mountings : ■ foot (b3) & flange (b5).

Feature : Robust Construction, High Efficiency, Reliable

Number of Poles : 2 Pole, 4 Pole, 6 Pole

Usage : Machine Gear Shiftings, Textile, Food Processing Machineries, Beverages, Chemical Industry, Pharmaceutical

Number Of Flower : Helical Geared Motor

Brand Name : Remi

Material : Cast Iron

Finishing : Polished

Phase : Three Phase

Total Carbohydrate : 1 Year

Country of Origin : India

Mounting Type : Foot Mount

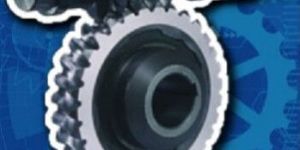

OUR EXCLUSIVE RANGE OF MANUFACTURED PRODUCTS CAN BE CATEGORIZED FURTHER AS FOLLOWS : BRANDS :►  CPEC►  RADICON GREAVES►  ELECON►  BONFIGLIOLI. TYPES :►  WORM SHAFT, WORM WHEEL, BEARINGS & OIL SEALS. SIZES :►  RADICON : 112, 162, 200, 237, 287, 337, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”.►  ELECON : 1 5/8, 1 ¾, 2, 2 ½, 3, 3 ½, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”. RATIO :►  MIN. 5 : 1 to MAX. 70 : 1.NOTE : WE PROVIDE SPARES FOR GEARBOXES AS PER STANDARD & NON STANDARD REQUIREMENTS.

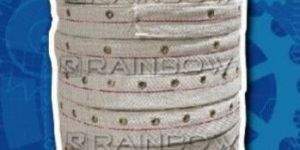

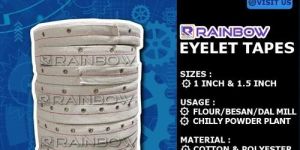

union engineering co. offers high quaility eyelet tapes which are produced with sincerity and hard work of our professionals.   we have since decades., carved a niche for ourselves in this domain by providing a premium quality eyelet tapes.    types : ● rolls.    sizes : ● 1 inch & 1.5 inch.    usage : ● binding. ● flour / besan mill.    adhesive : ● no.    color : ● white.    material : ● cotton & polyester.    models : ● regular, special & premium.    packaging : ● standard.

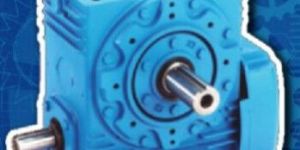

UNDERDRIVEN : ● SNU-U.    OVERDRIVEN : ● SNU-O.    VERTICLE OUTPUT SHAFT UP/DOWN : ● SNU-V.    HOLLOW OUTPUT SHAFT : ● SNU-SM.    SIZES : ● 1 5/8, 1¾, 2, 2½, 3, 3½, 4, 5, 6, 7, 8, 9, 10.5.    RATIO : ● MIN. 5 : 1 TO MAX 70 : 1.    POWER CAPACITY: ● 139 KW.    INDUSTRIES : ● ALL PROCESS INDUSTRIES.   NOTE : WE PROVIDE SPARES FOR GEARBOXES AS PER STANDARD & NON STANDARD REQUIREMENTS.

Packaging Type : Carton Box, Wooden Box

Application : Conveyor, Robotics, Pharmaceutical Machinery, Food Packaging Machinery, Chemical Machinery

Number Of Flower : Industrial Worm Gearbox

Brand Name : Elecon

Material : Cast Iron

Storage Condition : Horizontal & Vertical

Condition : New

Finishing : Powder Coated

Total Carbohydrate : 1 Year

Country of Origin : India

Mounting Type : Horizontal & Vertical

Orientation : Horizontal & Vertical

Gear Type : Worm

Material : Cotton and Polyester

Country of Origin : Made in India

union engineering co. offers bonfiglioli worm gears which are milestones for the industry worldwide. they succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. the helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.   type : ● vf 27, vf 30, vf 44, vf 49, w 63, w 75, w 86, w 110, vf 130, vf 185, vf 210, vf 250.   torque nm : ● 13, 24, 55, 88, 190, 320, 440, 830, 1.500, 3.600, 5.000, 7.100.   torque range : ● 13 nm... 7.100 nm.   mechanical rating (n1= 1400 min-1) : ● 0,04 ... 75 kw.   gear ratios : ● 7 ... 10000.   output configurations : ● keyed hollow shaft. ● plug-in solid output shaft. ● torque limiter as an option.   input configurations : ● vf and w: iec-standard motor adapter. ● vf and w: solid input shaft. ● w: integral gearmotor.   applicable ac motors : ● vf and w: iec-standard motors and brake motors - bn series. ● w: compact motors series m. ● single and dual speed motors.   main brake features : ● dc and ac supply. ● faster brake engage/disengage through electonically ● controlled ac/dc rectifier type sb, nbr, sbr (options).   main motor options : ● thermistors and thermostates sensor. ● separate supply forced ventilation. ● line driver and push-pull incremental encoder.

Power : 0.75 KW

Speed : 1500 Rpm

Phase : Three Phase

Frequency : 50 Hz

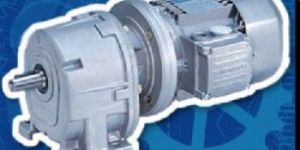

THE DEPENDABLE AND PERFORMING SOLUTION FOR ALL IN-LINE DRIVE APPLICATIONS FEATURING UNSURPASSED QUALITY TO PRICE RATIO. FOOT OR FLANGE MOUNTING ARE POSSIBLE IN ANY MOUNTING POSITION, MAKING THE INSTALLATION EASIER THAN EVER.   TYPES : ● AS 16, AS 20, AS 25, AS 30, AS 35, AS 45, AS 55, AS 60, AS 80, AS 90.   TORQUE NM : ● 45, 90, 180, 320, 480, 720, 1.200, 2.100, 3.800, 6.200.   TRANSMISSIBLE TORQUE : ● 30 NM... 7.200 NM.   RATED POWER (N1= 1400 MIN-1) : ● UP TO 140 KW.   GEAR RATIOS : ● IN = 4,5 ... 185.   OUTPUT CONFIGURATIONS : ● SOLID KEYED SHAFT.   INPUT CONFIGURATIONS : ● IEC MOTOR MOUNTING PROVISION. ● SOLID INPUT SHAFT.   APPLICABLE MOTORS : ● IEC-NORMALIZED MOTORS, UP TO 45 KW. ● SINGLE AND DUAL SPEED VERSION.   MAIN BRAKE FEATURES : ● DC OR AC SUPPLY. ● FAST BRAKING AND/OR BRAKE RELEASING THROUGH SB, ● NBR, SBR OPTIONAL ELECTRONIC DEVICES.   MAIN MOTOR OPTIONS : ● THERMISTORS AND THERMOSTATES SENSOR. ● FORCED VENTILATION. ● LINE DRIVER AND PUSH-PULL INCREMENTAL ENCODER.

WE ARE ONE OF THE MOST PROMINENT BEARING SUPPLIERS FROM INDIA. WE OFFER FINEST QUALITY OF BEARINGS THAT ARE USED IN LARGE NUMBER OF INDUSTRIES SUITING EACH INDUSTRIES TYPE. BEARINGS OFFERRED BY US ARE KNOWN FOR THEIR FEATURES LIKE DURABILITY AND PRECISION.   WE MASTERS IN PROVIDING BEARINGS AT REASONABLE PRICES.   WE EXCLUSIVELY OFFER BEARINGS FOR BRANDED INDUSTRIAL GEARBOXES., THE FEW OF WHICH HAS BEEN LISTED BELOW :    BRANDS : ● CPEC GEARBOXES ● RADICON GREAVES GEARBOXES ● ELECON GEARBOXES ● SHACON GEARBOXES ● OTHER GEARBOXES    TYPES : ● BALL BEARINGS & TAPER ROLLER BEARINGS.    SIZES : ● CPEC (R, RV MODEL) : 11, 17, 22, 30, 35, 40, 50, 60, 70, 80, 90, 100, 120, 140, 170. ● RADICON : 112, 162, 200, 237, 287, 337, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”. ● ELECON : 1 5/8, 1 ¾, 2, 2 ½, 3, 3 ½, 4, 5, 6, 7, 8, 9, 10.5, 10”, 12” , 14”, 17”.    RATIO : ● MIN. 5 : 1 to MAX. 70 : 1.   NOTE : WE PROVIDE SPARES FOR GEARBOXES AS PER STANDARD & NON STANDARD REQUIREMENTS.

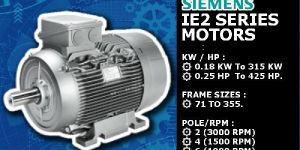

NION ENGINEERING CO. OFFERS SIEMENS IE2 MOTORS UNDER THEIR 1SE0 SERIES.   TYPE : ● SIEMENS IE2 MOTORS UNDER THEIR 1SE0 SERIES.    KW / HP : ● 0.18 KW To 315 KW / 0.25 HP To 425 HP.    FRAME SIZES : ? 71 TO 355.    POLE NUMBERS : ? 2 POLE (3000 RPM), 4 POLE (1500 RPM), 6 POLE (1000 RPM).    MOTOR MOUNTING : ● B3 FOOT MOUNTING. ● B5 FLANGE MOUNTING. ● B35 FOOT CUM FLANGE MOUNTING. ● B14 FACE MOUNTING. ● B34 FOOT CUM FACE MOUNTING.    MOTOR MATERIAL : ● FRAME : CAST IRON (WITH MOUNTING FEET INTEGRAL TO THE HOUSING - FOR CONSTRUCTIONS WITH FEET). ● TERMINAL BOX : GENEROUSLY DIMENTIONED, ROTATABLE THROUGH 360° IN STEPS OF 90; ON TOP AS A STANDARD. ● FAN COWL : SHEET STEEL. ● FAN : THERMOPLASTIC (CAST IRON FOR 2 POLES in FRAMES 250 AND ABOVE).
