Unique UV & Light Private Limited Vasai, Mumbai, Maharashtra

pplication : Offset Screen Ideal for drying Water based Solvent based UV Coatings & Inks Belt Speed : 7-140 Mtrs. Min Suction hold below belt. UV Lamp Power steps : 33 %, 66%, 100%. Infra-Red Radiation Dryer Hot Air Convection Dryer Stepless Temperature Control for IR Lamps. Digital Temperature indicator for IR Zone. Power Source : 415 V, 50 Hz, 3-Phase+N+PE.

Application : Offset Screen Coater Ideal for drying Water based Solvent based UV Coatings Also suitable for drying Conventional Inks Belt Speed : 7-140 Mtrs. Min Suction hold below belt. UV Lamp Power steps : 33 %, 66%, 100%. Infra-Red Radiation Dryer Hot Air Convection Dryer Long Life Stainless Steel Finned Heaters Stepless Temperature Control for IR Lamps & Heaters. Individual Digital Temperature Indicators for IR & Hot Air. Power Source : 415 V, 50 Hz, 3-Phase+N+PE.

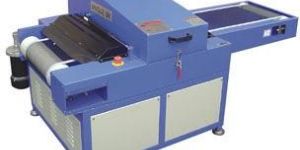

Application : Offset Screen Coater Compact Floor Space Belt Speed : 7-140 Mtrs. Min Suction hold below belt. Lamp Power steps : 33 %, 66%, 100%. Power Source : 415 V, 50 Hz, 3-Phase+N+PE.

Number Of Flower : Low Pressure Sodium Lamps

Application : Highway, Street

Condition : New

Packaging Type : Paper Box, Plastic Bag, Plastic Pouch, Thermacol Box

Power Solar : Electrical, Solar

Low Pile UV Application : Offset Belt Speed : 7-140 Mtrs. Min. Suction hold below belt. Lamp Power steps : 33 %, 66%, 100%. Power Source : 415 V, 50 Hz, 3-Phase+N+PE.

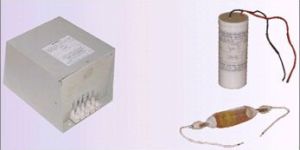

HPM-15 Lamp is Metal Halide UV lamp. This lamp radiate in the DIAZO range. HPM-15 Lamp is rated for 2000 W and it works on 380 V - 440 V, 50 Hz,Phase to phase supply. This lamp is generally operated in half and full power mode in UV Exposing machines For example, to operate this lamp at 2000 W in full-power mode and at 1000 W in half- power mode, two ballasts each rated for operating this lamp at 1000 W are used in parallel as shown below. To operate this lamp at 2000 W continuously without half power mode, one ballast rated for 2000 W is used. Burning position of lamp: horizontal +- 10 degrees. Applications: contact copying of images from transparent film to UV sensitive carrier. HPM - 15 lamp is made by Philips, Holland. The lamp temperature should not exceed the value given by the manufacturer during its operation. Adequate forced air-cooling is necessary for proper performance of these lamps. Insufficient excess cooling may cause premature failure explosion of these lamps. Ultraviolet radiation emitted by these lamps are harmful for eyes, proper care should be taken while the lamp is in operation.

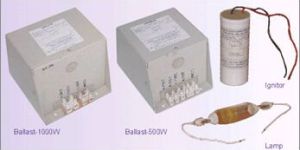

Burning position of lamp: horizontal +- 10 degrees. Applications: contact copying of images from transparent film to UV sensitive carrier. HPM - 13 lamp is made by Philips, Holland. The lamp temperature should not exceed the value given by the manufacturer during its operation. Adequate forced air-cooling is necessary for proper performance of these lamps. Insufficient excess cooling may cause premature failure explosion of these lamps. HPM Ultraviolet radiation emitted by these lamps are harmful for eyes, proper care should be taken while the lamp is in operation
