Venturi Scrubber Dealers in Mumbai

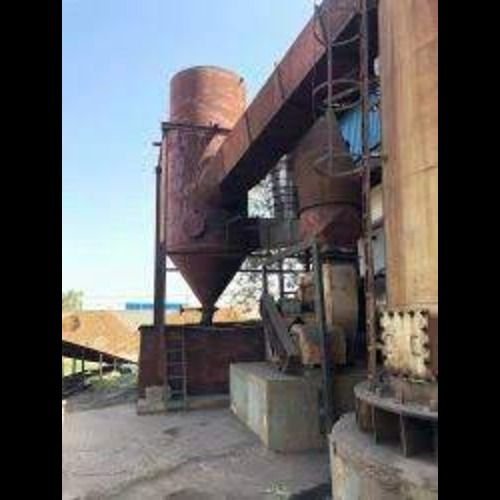

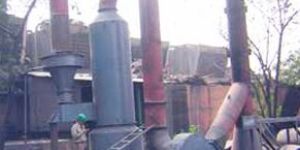

In its simplest form, a venturi scrubber consists of a restriction in a gas duct into which water is introduced. The scrubbing occurs at the restriction where high gas velocities atomize the water into fine droplets. After scrubbing, the gas and water are separated in a cyclonic separator, the water gravitating to a pumping tank for re-use and the clean gas leaving from the top of the separator.

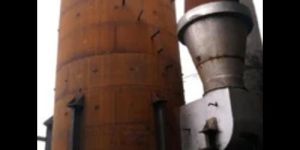

Designed using latest technology, these scrubbers are sturdy and easy to maintain & operate. Our range is known for high performance and is a cost effective way to remove impurities and contaminants from air. They are used to collect both particulate and gaseous pollutants, but they are more effective in removing particles from gaseous pollutants. The subsequent turbulence of the water caused by its impaction with the high velocity air stream breaks the water into relatively minute particles (this process is called atomization ) & thoroughly mixes with the dust particles in the air stream. The clean air is vented out and the collected solids are precipitated downward to the slurry discharge or are retained for re-circulation in a recycling tank. We manufacture venturi scrubber with these specifications, Capacity :                           1000m3/hr – 200000m3/hr Pressure Drop :                 100mmWG – 150mmWG Particle Size Scrubbed :   upto 3 microns Depending upon application requirements, Venturi Scrubbers can be equipped with flexible throats, tangential liquid entries, weir entries and flooding nozzles. Main salient features   Venturi Scrubber is high efficient dust collector and achieves outlet dust concentration less       than 100 mg/Nm3   It can handle high temperature gases with out any problem.   There are no spray nozzle or distribute plate in which solids can collect. Hence maintenance      is negligible.   Low water requirement as it is re-circulated.   Initial cost is low.  Operating cost is less.   No recurring cost is involved.   As the equipment is compact requires less space. Applications • Steel Industry Blast Furnace, Electric Arc Furnace, BOF, etc • Fertilizer Industry Phosphate Rock Dryers & Calciners, Dryers • Non-Ferrous Copper Reverberatory Furnace, Laea Blast Furnace • Pulp & Paper Lime Kilns, Back Liquor Recovery, Bark Boilers • Sugar Industry Boiler Flue Gas, Bagging Section • Mineral Products Asphalt Stone Dryers, Cement Kilns • Pharmaceuticals Tablet Coating Fans, etc

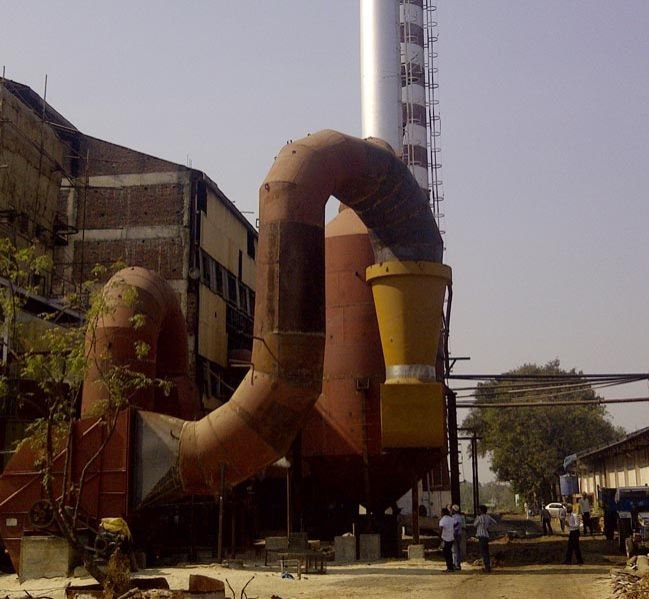

We design, manufacture and install venturi Scrubbers. These are used for removing particles or polluted gases from an exhaust gas stream. Water sprays can be injected into the gas stream, gas can be forced to pass through sheets or films of liquid or the gas can move through beds of plastic spheres covered with liquid. Each of these techniques can effectively remove particulate matter from process exhaust gases.Venturi Scrubbers are mainly designed to incorporate small dust particles into larger water droplets. These larger droplets containing the captured particles are then collected by simple mechanism such as gravity, impaction on baffles or by cyclonic action.The venturi Scrubbers can be represented as having two zones, a contact zone (Particle Capture) and a separation zone (Droplet capture). To achieve a high collection efficiency of particulates by impaction, a small droplet diameter and high relative velocity between the particle and droplet are required. This is often accomplished in a venturi scrubber by introducing the scrubbing liquid at right angles to a high velocity gas flow in the venturi throat. Very small droplets are formed, and high relative velocities are present. The large number of small droplets, combined with the turbulence in the throat section, provides numerous impaction targets for particle collection.

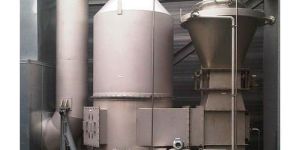

Venturi Scrubbers, Chemical Storage Tank, FRP Pipes, FRP Duct, FRP Tan

Venturi Scrubber, Wash Maximizer Plate Washing Tank, Pickling Tan
