Versatile Heat Treat Thane (W), Mumbai, Maharashtra

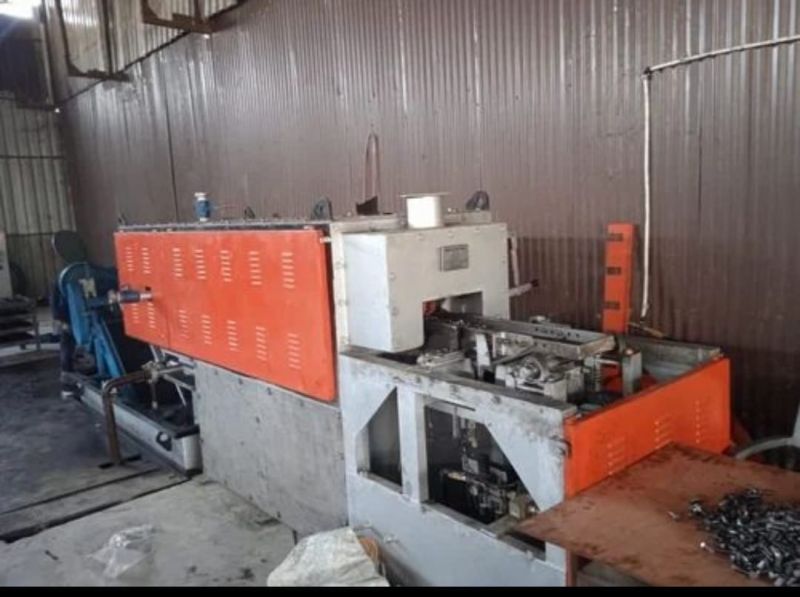

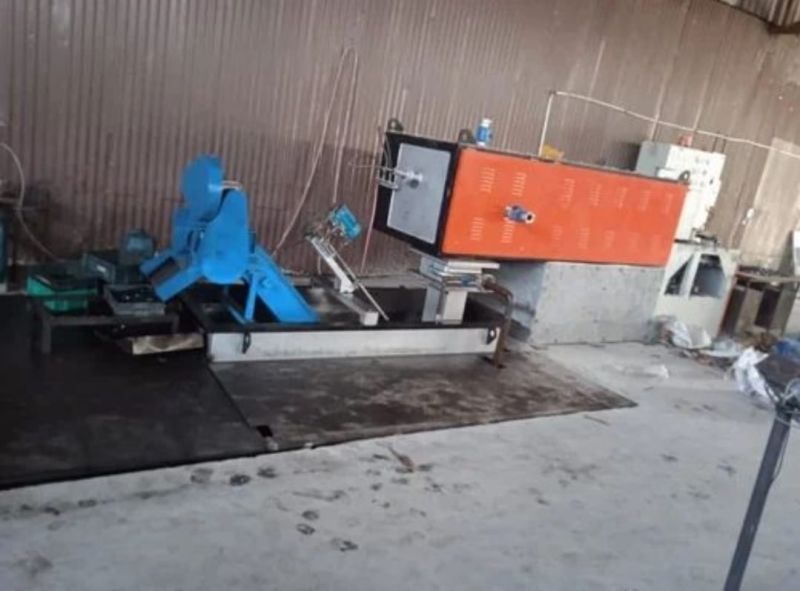

Versatile Heat Treat Make shaker Hearth Furnace are ideal for bright hardening of small components up to length of 130 mm length specially fasteners under protective atmosphere. Special designs are possible for more than 130mm length.   Batch quantity work piece are manual/ automatically loaded on the front end of the hearth which carries them into the furnace and out at other end. A pneumatic shaker quick return mechanism ensures the transport of work pieces by providing jerks to the shaker.   Normally a conveyorised oil quenching tank is used for quenching and transporting the material from the quenching tank to outside but a special austempering salt can be also provided to Marqurnch/Austemper the components where distortion is to be controlled.

Country of Origin : India

Total Carbohydrate : 1yrs, 1 Year

Number Of Flower : Heat Treatment Plant

Certification : ISO 9001:2008

Application : Industrial Use

Condition : New, Used

Material : Iron, Stainless Steel, Steel

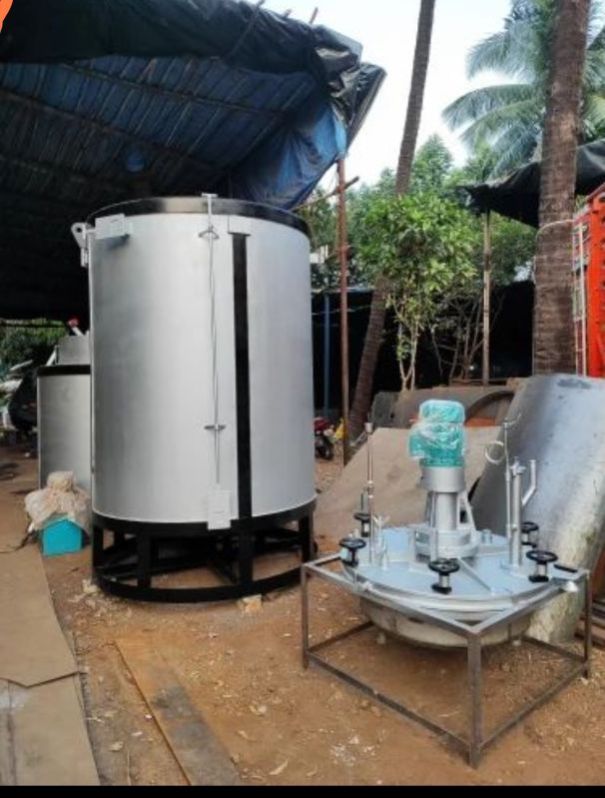

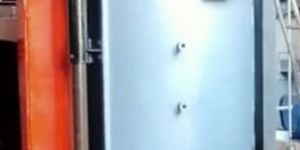

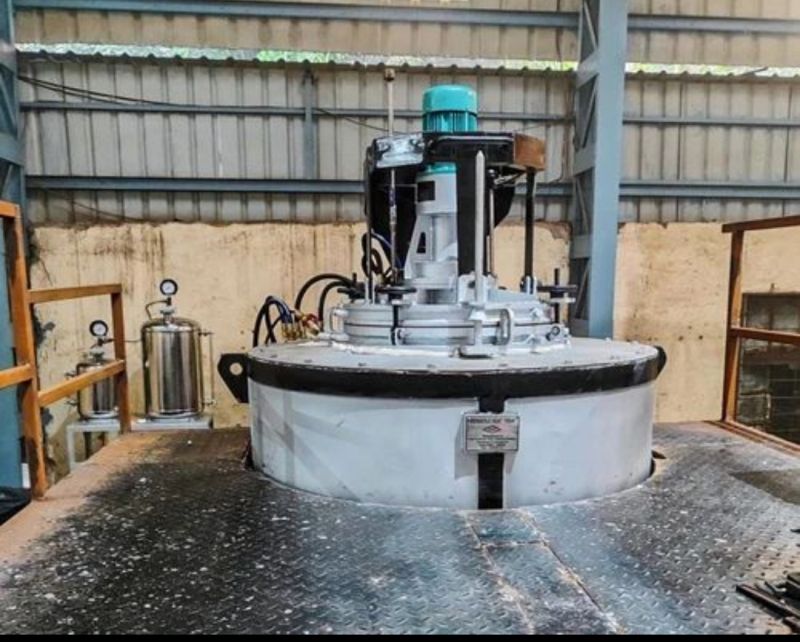

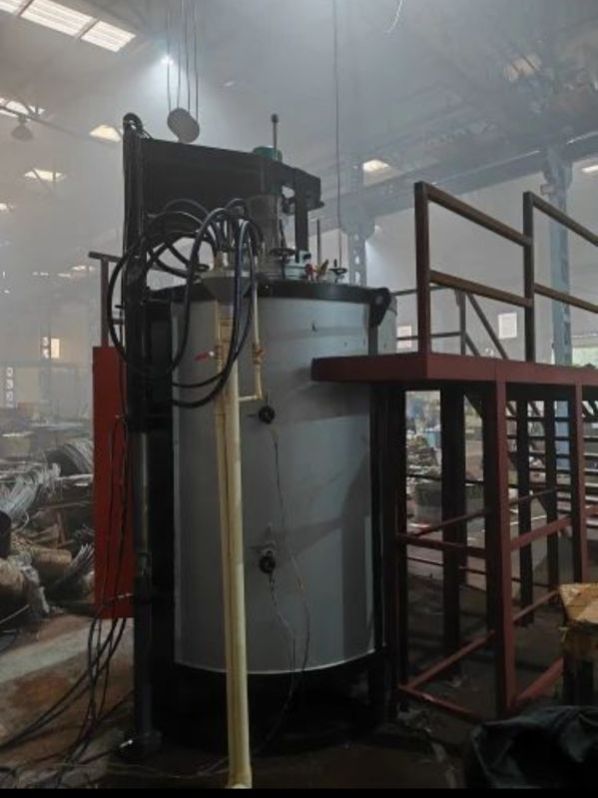

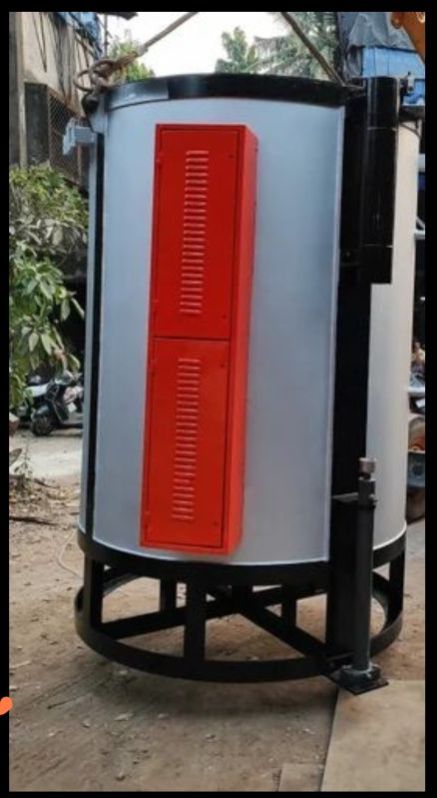

Vertical Loading Type Sealed Retort Furnace Model PGC are ideal workhorses for: Gas Carburising. Gas Carbonitriding Bright hardening under protective gas such as Endo gas (RX) EXOGAS (DX), Monogas (NX or commercial nitrogen) The work Piece are placed or fastened on customer designed fixtures or basket and loaded into the retort to retort to rest on specially designed bottom casting. In the case of large or long components, like axles or tractors gears, which are preferably vertically loaded, special supports are welded inside the retort near the top to allow the pieces to hang freely minimizing distortion. After the treatment of work pieces. He complete installation for carburising / hardening comprises any of the following equipment in addition to the furnace MODEL PGC: Air Cooled Pit Water Cooled Cooling Tank. Water Quenching Tank. Oil Quenching Tank. The choice of particular equipment depends on the process requirement. Work pieces requiring direct hardening are quenched from the austenising temperature into an oil or water- quenching tank as per requirement of the material. Work piece, requiring fine grain structure after carburising, are cooled under protective atmosphere either by tacking the entire retort assembly into an air cooled cooling pit or by tacking the charge into retorted the sealed water cooled tank. After this slow cooling the work pieces are reheated in the furnace Model PGC and then quenched. Thus, in addition to the quenching tank is needed for the purpose of grain refining. A spare retort assembly will nearly double the production by heating one charge in the furnace while other retort with charge is being cooled in the air cooled cooling pit. Two Option are available for manufacturing protective gas in one option, the protective gas is made externally in a special gas generator or brought in commercial bottles and fed to the furnace, while in the other the gas is generated INSITU by feeding methanol. For active carburising and carbonitriding either liquefied petroleum gas (LPG) or carburising, either liquid is introduced. In some cases, to simplify the installation, VHT has specially designed a VHT SPECIFICATION NO TE:206-1 to create the atmosphere. In case of carbonitriding ammonia gas is also introduced for generation of nascent nitrogen.

Material : Iron

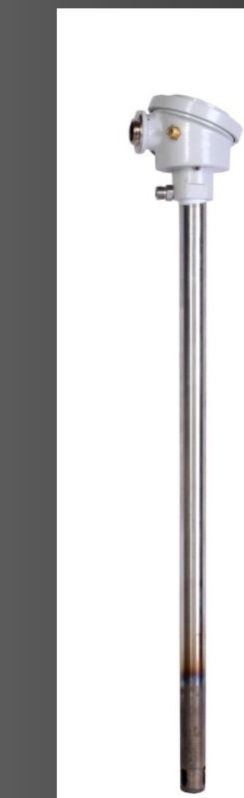

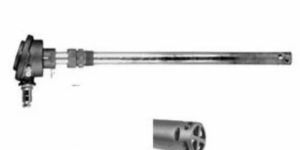

Oxygen Probe are widely used in all types of furnaces.It is Designed to measures oxygen dew point and the carbon potential in the richest atmosphere (High CP%).

Finishing : Polished

Condition : New

Feature : Good Quality, Durable, High Strength

Number Of Flower : Oxygen Probes

Country of Origin : India

The electrically heated pit type furnace with forced air circulation are ideal for tempering small or large batch quantities. The furnace are available in two versions : One with working temperature of 500°C and other with working temperature of 750°C. The first version (500° C) is suitable for : Annealing ferrous & non-ferrous components. Tempering of ferrous & non- ferrous components. Solution treatment of Aluminium Alloys. (For handling large loads with short quench delays of 5-10 seconds, we have designed a special elevator furnace with sliding bottom. Precipitation hardening. Preheating of components before slat bath treatment. The second version (750°C) is suitable for: - Tempering of high speed steel, hot working and cold working steel and tool steels. - Tempering of high tensile fasteners. - Tempering of furnace forging.

Brand : Versatile Heat Treat

Material : Stainless Steel, Mild Steel

Driven Type : Electric

Power : 72KW

Automation Grade : Automatic, Semi Automatic

Application : Heating Process

Certification : ISO 9001:2008

Country of Origin : 440V

Availability : 2.5-3 Ton

Total Carbohydrate : 1yrs

Country of Origin : India

Conditon : New

Dual Drip Feed System is widely used for relasing acetone and methanol in all types of furnaces for heat treatment process. Due to the use of dual feeding of acetone and methanol overall process becomes faster and economical.

Number Of Flower : Drip feed

Material : Stainless steel

Application : For Relasing chemical to furnaces

Condition : New

Total Carbohydrate : 1 year

Brand : Versatile Heat Treat

Conveyorised quenching tanks are designed for continuously transferring oil quenched work pieces from a continuous hardening furnace such as Shaker Hearth Furnace or conveyor belt furnace to the next station such as working machine or tempering furnace basket.

Country of Origin : India

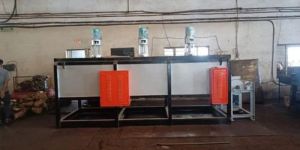

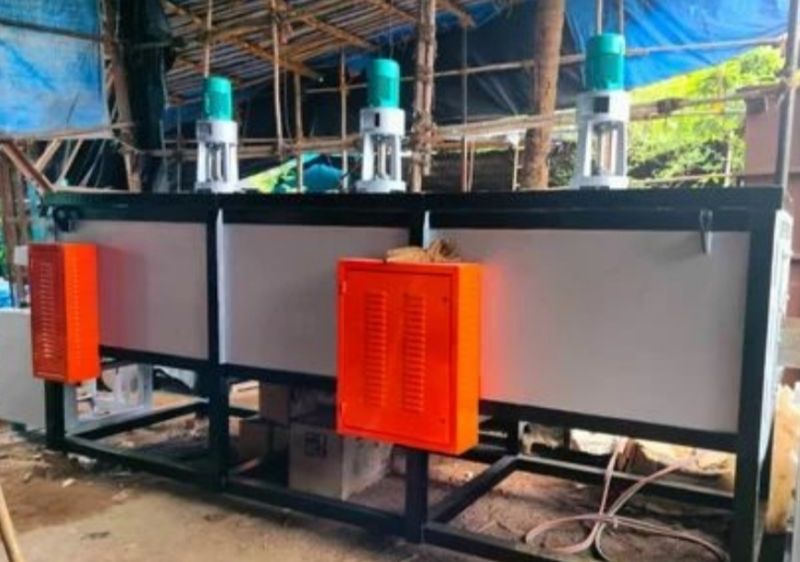

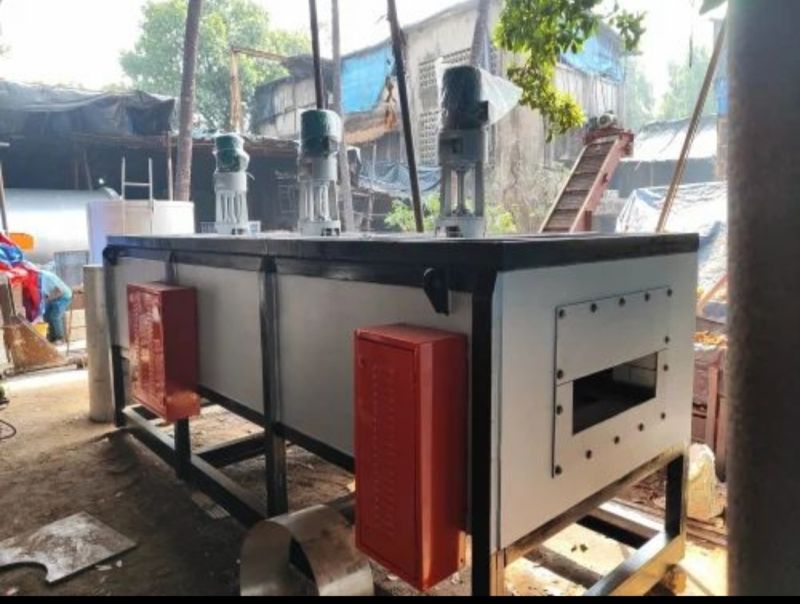

Electrically Heated Conveyor Mesh Belt Tempering Furnace MODEL CBTF # 8x150, #16x150, # 24x150 and # 32x150 are ideal for high volume production of small and medium size components such as Fasteners. Chain links, bearing components, Diaphragm Springs and like. Two versions are available in these MODELS: one suitable for application up to 500C and the other up to 700C. Whereas other constructional details remain the same, the furnace internals, such as fans, furnace hearth are made of thick mild steel in the first version 500C and of stainless steel AISI 304 in the other version 700C. For belt material, see 3.6 below. Work pieces are loaded at the front end either in batch quantities or continuously from the Continuous Washing Machine or Induction Furnace. The drive is provided on the tail end drum. Finished products are removed in baskets for packing.

Country of Origin : India

Total Carbohydrate : 1yrs

Availability : 4.5 Ton

Number Of Flower : Mesh Belt Furnaces

Country of Origin : 440V, 415V

Certification : ISO 9001:2008 Certified

Automation Grade : Automatic

Power : 100-120KW

Condition : New

Driven Type : Electric

Finishing : Polished

Material : Stainless Steel, Mild Steel

Brand : Versatile Heat Treat

Application : Heating Process, For Hardening

Power Source : Electric
