Vinayak Trading Co. Saki Vihar, Mumbai, Maharashtra

Vilter Compressor Select from our large inventory of VILTER compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.

  Danfoss vacuum valves are designed for high vacuum applications and can be supplied with 3 different actuator systems: Manually, pneumatically or electromagnetically operated.

  They are used in laboratories for testing and inspection of other gauges as well as for high accuracy measurement. Available with Accuracy ± 0.5% in Type 8 and ± 0.25% I of F.S.D. in Type 9. Each gauge is tested on a Dead Weight Tester and Test Certificate of Calibration is given alongwith each gauge, Available in dial size 150 and 250 mm, manufactured in all standard ranges in pressure or Vacuum in kg/em' and p.s.i.

  Potentiometric Transmitter is mounted directly on the dial and pointer of the potentiometer is coupled to the instrumentl pointer. The pressure gauge gives signal of change in resistance value as the pointer deflects. The standard range of Change in I Resistance is 100 Ohms for full scale pointer deflection. Also available potentiometer transmitter with output 4 to 20 or 0 to 20 milliamps. These gauges are available in dial size 150 mm and in all standard ranges.

  Thermostatically operated valves are a simple and reliable control solution requiring neither electricity nor control air. An example of application is automatic control of water temperature in cooling systems.The valves are available with remote or built-in sensor.

  The range of temperature switches includes components for general industrial use as well as specialised switches for demanding applications.

  The Danfoss range of temperature sensors is based on decades of global experience within the marine industry and in refrigeration plants - undoubtedly some of the toughest environments around. Even in these demanding surroundings you can trust our products; they have a long life thanks to their robust design.

  Danfoss solenoid valve bodies and electrical coils are normally supplied separately and then combined. They are assembled quickly and simply without tools, providing optimum product flexibility and availibility. If a coil does need to be replaced, it can be done without stopping or draining any system. The solenoid valves are also available as assembled units if required.

Daikin Compressor 2C582LE-CF Select from our large inventory of DAIKIN compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.

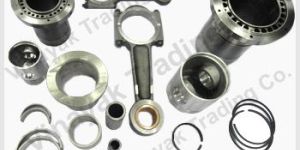

SABROE / SMC Compressor Spares Select from our large inventory of SABROE / SMC compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.

Application Angle valves are Compatible with all CFC, HCFC and HFC Refrigerants and oils and other Industrial fluids non-corrosive to steel and brass. (With suitable Gland/Seal). Construction Valve Body: Hot Forged Brass (BS-218). Spindle: Stainless Steel. Gland Nut: Extruded Brass. Gland Packing: Neoprene/Asbestos Free Gasket. Seal Cap: ABS Plastic / Brass. Design Full port openings for maximum flow. Low torque requirement for valve shut off prolongs valve life. Factory fitted Aluminum hand wheel can be provided Operation &Testing. Maximum working pressure 400 psig. Working Temperature Range: (-30°C + 100°C). Individual pneumatic Testing in Open/Close position at 400 psig.

  Danfoss pressure transmitters help you keep demanding industrial processes under control. Accurate, robust and built for long life, they perform reliably day after day, even in the harshest environments.

  The range of pressure switches includes components for general industrial use as well as specialised switches for demanding applications

  The range of differential pressure switches includes components for general industrial use as well as specialised switches for demanding applications.

Application Pressure relief valves are Compatible with all CFC, HCFC and HFC Refrigerants and oils and other Industrial gases and fluids non-corrosive to steel and brass. (With suitable Gland/Seal). Construction Valve Body: Extruded Brass. Valve Cap : Forged Brass Spring: Stainless Steel Seat Material: Neoprene/Teflon. Machined parts: Extruded Brass. Design Pre compressed special grade SS Spring provides unchanged tension for life of Valve. Pre stressed virgin seat material improves accuracy of pressure ratings. Designed for quick Discharge and immediate shut down. Available in pressure Range from 150psig – 450 psig. Pre set on imported accurate pressure gauge. Working Temperature range is -30°C to 100°C. Installation. Inspect valve and Install only if factory seal appears untampered. For leak tight sealing use Torque wrenches set at 30 Lb.Ft and ensure that Female thread is exact match. Shelf life of Valve is 18 months from date of manufacture. Beyond this period if unused return valve to Factory for recalibration. We recommend replacement of the valve after it pops open. It may not open again at preset pressure on account of Debris impregnation in seat and ageing of seat material. Under no circumstances open the seal and try to reset the valve as it needs special tools and trained technicians.

Packless Diaphragm Valve (Hand Shut Off Valves) Application Hand Shut Off valves are compatible with all CFC, HCFC and HFC Refrigerants and oils and other Industrial gases / fluids non-corrosive to Steel and Brass. Construction Valve Body: Hot Forged Brass (BS-218). Spindle: Extruded Brass. Diaphragm: Stainless Steel. Knob: Thermally stable engineered plastic. Spring: Specially treated Steel. Seat: Stainless Steel / Nylon.   Design Superior Valve Body design allows gripping while tightening / loosening the Flare Connections. Superior Bonnet Design allows easy access when disassembling / assembling for solder connections. Full port openings for maximum flow, minimal pressure drop and long life. Back seating minimizes moistures intrusion. Stainless steel Diaphragm for positive isolation ensures hermetic sealing of the flow area. Thermally stable plastic Knob for easy operation in wide temperature range. Operation & Testing. Maximum working pressure with flow in direction of arrow mark 400 psig. Working Temperature Range: (-30°C + 100°C). Individual Pneumatic Testing in Open/Close position at 400 psig.   Installation. While brazing solder connection, disassemble the Valve and use suitable filler material for brazing. While re-assembling the Valve allow the Valve body to cool to room temperature and clean the part thoroughly. For leak tight sealing use Torque wrench set at 30 Lb.Ft to avoid damage to the Diaphragm and Valve. If Valve locks in open Position grip Hand wheel with soft cloth and turn with reasonable force in Clockwise direction (towards arrow directing CLOSE position)

Mycom Compressor-A Select from our large inventory of MYCOM compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request.

  These gauges are suitable for 10\1'1 pressl.lre me.l'!surernent ofQon-corrosive,gases, commercial heating, gas distribution and filteration. Measuring System is Brass or S.S. 304 Capsule. Case Material cast aluminium. Available in pressure range 0-50 mmWC upto 1000 mmWC in pressure, vacuum and compound ranges.

  These gauges are ideal where pressure gauge is subjected to severe conditions. The I filled liquid protects the internal parts against vi.bratio(ls and also lubricates and protec~ from environmental conditions. The case is made of Stainless steel or Mild Steel and it I is filled with Glycerine or Silicon Oil. Available in Dial Size 63, 100, and 150 mm with Accuracy ± 1% or ± 2%. Measuring system of phosphor bronze, brass S.S. or Monel manufactured in standard pressure ranges from 0-1 kg/cm2 upto 0-1000 kg/cm2.

Kirloskar / Grasso - KC/RC11 Compressor Spares Select from our large inventory of KIRLOSKAR / GRASSO compressor spare parts for HVAC applications including air conditioning and refrigeration System. All parts photo and part no. displayed. Other than displayed parts will be given on Request. .

  Isolation valves are designed for mounting between Danfoss pressure transmitters and fluid-filled systems and offer a fast and efficient method of connection and removal.

  These gauges are ideal for Chemicals and Fertili:zer Plants, Refineries, Thermal Power Station and where gauges are installed outdoor and in field services. Choice of Measuring System of Phosphor bronze, Brass, S.S. 316 OR Monel is available depending on the process application. Case is pressure die cast aluminium with screwed bezel of aluminium and stoved enamelJ black finish or epoxy coated. Gauges are weatherproof and dustproof IP55; Accuracy ± 1%, Standard fitments --- shatterproof glass, micrometer ppinter I'!Od blo\l'l off disc. Dial Size 100, 150, and 250 mm. Range - 760 mmHg to 0 to 1000 kg/cm2 and Receiver Guage Input Pressure 3 to 15 psi OR .2 to 1 kg/cm2.

Application Globe Valves are compatible with all CFC, HCFC and HFC Refrigerants and oils and other Industrial gases / fluids non-corrosive to Steel and Brass. (With suitable Seal Material). Construction Valve Body: Hot Forged Brass (BS-218). Valve Bonnet: Hot Forged Brass (BS-218). Spindle: SS 304. Gland Nut: Extruded brass. Stem packing: Neoprene rubber and Asbestos Free gasket. Seat: P.T.F.E. Bonnet cap: Electroplated MS. Design The Valve is designed with large orifice and integrally forged flow path offering very low frictional resistance, ensuring maximum flow rate and minimal pressure drop. Internal back seating enables replacement of the spindle seal whilst the valve is active, i.e. under pressure Operation & Testing. Maximum working pressure with flow in direction of Arrow mark 400 psig. Working Temperature Range : (-30°C + 100°C). Individual pneumatic Testing in Open/Close position at 400 psig. Installation for Solder connection While brazing solder connection, disassemble the Valve and use suitable filler material for brazing. While re-assembling the Valve allow the Valve body to cool to room temperature and clean the part thoroughly. For leak tight sealing use Torque wrench set at correct load to avoid damage to the Seal and Valve.
