Volta Powerlink Private Limited Borivali East, Mumbai, Maharashtra

To solve the power problems permanently, Makson Engineers presents an incomparable range of Tubular Battery. These batteries are designed for heavy duty usage and require low cost of maintenance. Adaptable to different environments, just charge these batteries fully and they can easily serve for long hours. High on performance, these batteries can withstand overcharge and over discharge. Capacity : 40 AH/ 12V - 200 AH/ 12V Used In UPS systems/InvertersEPABXAlarm systemsLaboratoriesElevator backupsHotelsEmergency LightingHospitals Attributes Function for longer durations2 years warranty - expected 4 to 5 years life Deep Cycle Design Longer working lifeTopping up frequency for batteries for around 2 to 3 times in a yearMore back up timeQuick recovery from deep dischargeSteady Output and enduranceAqua Trap vent plugs to avoid acid flumesElectrolyte level indicatorQuick chargeableEasy to installConsume low power Construction and Assembly Monobloc container made of PolypropylenePositive plates made of tested designDry charged negative platesAqua trap vent plugElectrolyte contains Sulphonic acid additive to prevent sulphation of platesLow antimony alloys and large top-of-plate-acid-head room

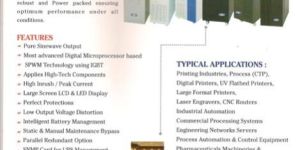

Salient Features Most advanced Digital Microprocessor based SPWM Technology using IGBTApplies Hi-Tech ComponentsSuper performance from IGBTFully meets Sharp load Fluctuation from 0 to 100%Large Screen LCD & LED DisplaPerfect ProtectionLow Output Voltage DistortionIntelligent Battery ManagementStatic & Manual Maintenance Bypass Parallel Redundant OptionSNMP Compatible Available Ranges 1Phase /1 Phase3Phase / 1 Phase3 Phase / 3Phase

Salient Features True On-Line Double Conversion TechnologyPure Sine Wave Output High Frequency PWM InverterCrystal Controlled Output FrequencyWide input voltage tolerance rangeSmooth and silent operationExcellent dynamic response for step load changeFast automatic correction rate for line and load regulationHigh inrush / peak current handling capacityEasy to install, use and maintainInbuilt isolation Optional Features Static / Manual BypassHot Stand ByLCD Display Technical Specifications Capacity1 KVAto200KVAInput Voltage160-270VAC Two Wire, 330-470 VAC Four Wire Input Frequency47-53 Hz.Rectifier - ChargerAutomatic Float cum Boost Charger, Constant Voltage Constant Current TypeBattery Input36-360 V DC (or as per requirement)Battery Back-up15mins. to 8 hrs. (or as per requirement)Output Voltage230/415VAC (or as per requirement)Regulation± 1% under all Lines and Load ConditionsOutput Frequency50 Hz.Regulation±0.05%Inverter EfficiencyBetter than 90%WaveformPure Sine Wave (Sinusoidal)THD< 3% at Linear LoadTransient Response± 5% under Step Load ChangeTransient Recoverywithin 3 CyclesLoad Power Factor0.8 laggingOverload Capacity110%forl0mins./150%forl0sec.Crest Factor3:1Control MethodSinusoidal PWM ControlSwitching Frequencyabove 12 kHzCircuit MethodOn-Line Double Conversion, Zero Transfer TimeAmbient Temperature0o-45oCRelative Humidity95% RH Max. (Non Condensing)Audible NoiseLess than 55 dB at 1.5 metersCoolingForced Air TypeProtectionsBattery Under and Over Voltage

We are the leading manufacturer & supplier of Single Phase Sine Wave Inverter. Special Features High performanceLight alarm functionShort circuit shutdown protectionTemperature control fanOutput overload protectionAuto-hibernate function.

Servo Controlled Voltage Stabilizer manufactured by us, provides a reliable solution to inconveniences caused by voltage fluctuations. These stabilizers are high on efficiency and low on price. This high speed electromechanical device is independent of load conditions. Salient Features Uses solid state control circuitsNo relays No warm-up timeHigh Correction Speed Excellent regulation as high as ± 1%Introduces zero wave-from distortionUnaffected-by load power factorVery high efficiency above 95%Very low No Load lossesLow Voltage / High Voltage protectionOverload protection with MCB / MCCB Short Circuit protection Single Phasing preventer Optional Accessories in Three Phase MCB / MCCB for outputDimmer protection arrangementPhase reversal protection Applications CNC Machines.Bio Medical / Scientific EquipmentPrinting / Textile MachineriesLarge Computer InstallationsTelecommunication EquipmentsCell Phone Network Technical Specification Capacity: 1KVA to 1000KVAInput Voltage: 170-270 VAC Single Phase (or as per requirement), 360-460 VAC Three Phase (or as per requirement)Operating Frequency: 47-53 HzOutput Voltage Adjustable: 220 -240V AC in Single Phase, 380-415VAC in Three PhaseOutput Voltage Regulation: ±1%Waveform Distortion: NilOutput Waveform: True Reproduction of InputAmbient Temperature: 0°C to 45°CRelative Humidity: 90% Rh Max. Non condensing at 35° C Mode of system: Fully automatic/ manualSystem Construction: Air Cooled/Oil CooledProtections: Low voltage protection, High voltage protection, Overload protection with MCB/MCCB, Short Circuit protection, Single phasing preventerPanel Controls: Input / Output select switch, Auto /Manual select switch, Increase / decrease switch to control the output voltage in manual mode

We are offering ups.

We are the premiere supplier of Line Interactive UPS that provides a faster response to power failure in comparison to a standby UPS. The inverter/converter unit is always attached to the output, powering the equipment that acts as its major advantage. This design allows for faster response to a power failure than a standby UPS. To filter out noise and spikes, the inverter/converter is usually fitted with circuitry. Available in sizes up to 3,000 VA, it charges the battery as well as converts its energy to AC for the output required. Praised For : Compact designLight weightReplaceable battery designProlonged battery lifeQuieter operation Technical Specification : Technology : Latest upgradeCapacity : 500VA to 3KVAInput Power Bank : MOSFET

Salient Features Most advanced Digital Microprocessor based SPWM Technology using IGBTWide Input Voltage WindowOverall High Efficiency LCD / LED DisplayProvision for Internal BatteryAdvanced Power Factor Correction EMI / RFI Filters at Input and OutputInbuilt StaticBypassSNMP CompatibleSelf diagnosis at UPS StartupAdvance Battery ManagementSuitable for long backup Available Ranges 1 Phase / 1 Phase3Phase / 1 Phase

We are one of the leading manufacturers and suppliers of highly efficient Constant Voltage Transformer. It is apt to be used in applications that require a stable output voltage and a high degree of isolation. Fields of Application Data Processing equipmentColour Photography LabsBio–medical equipmentPA equipmentTelecommunicationTele printersOther sensitive electronic devices Special Features No Semiconductor or moving part is used, hence high reliabilityNo feed back control usedIntrinsic current limiting and short current protection Energy storage for line loss up to main 3ms at typical loadShort term over load capacity Optional Features Extended Range Model availableBuilt in spike processorSpecial Input / Output ranges available on requestSingle phase preventer Ratings Available 150 VA to 5 KVA

We are the leading manufacturer & supplier of 3 Phase Sine Wave Inverter. Special Features High performanceLight alarm functionShort circuit shutdown protectionTemperature control fanOutput overload protectionAuto-hibernate function.
