Yuyu Packaging Ltd. Goregaon, Mumbai, Maharashtra

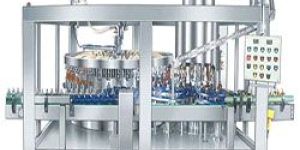

Provided with an inbuilt conveyor of pre-polished S.S. 304 Sheets. Rotary Filler and Sealer made from M.S. Plates, machined and painted (thickness: 25mm) with S.S. 304 cladding Sheet (thickness: 1.6mm, gauge: 16mm). On the top a stainless steel cam duly machined will be provided in two pieces. On the top of the machine, an automatic cap feeder, made from gun metal casting, precision machined, duly chromium plated will be provided suitable for feeding standard ROPP Seals of 22mm, 25mm and 28mm. Provided with standard sealing heads, made from high carbon high chrome steel suitable for sealing with 22 mm or 25 mm or 28 mm standard ROPP seals. All Pneumatics of Festo or SMC. All sensors will be of P&F or Sick. All the change parts made of Cast Nylon. Also, available Volumetric Filling cum Screw Capping Machine (MONOBLOCK)

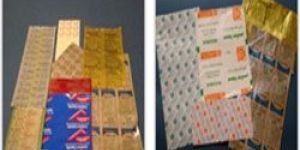

Aluminium foil for Blister Packing :Foil rolling gauges 0.02 mm to 0.03 mm. Sealant VMCH coating. Lacquer coating on printed side. Printed, coated, on both sides with without holograms as per your design.

Size : 0.02 mm to 0.03 mm.

Machine is manufactured in S.S. 304 to make it ideal for food grade applications. Systematic Surface finish procedures have been adopted to render glossy look. Versatile machine can fill different size/shape of bottle with easy to fit change parts.With timing set points, to facilitate minimum change over time. All bottle change parts are made of cast nylon. Self lubricating UHMW wear strips are used on railing and underneath slat chains to eliminate wear-tear and minimize noise. Centralized lubrication is provided through oil pump. Precise speed variation through reputed make variable speed pulley. The machine conveyor is driven by a reputed make maintenance free Variator Drive Unit. No need to de-assemble any part to clean the machine during product change over. Since flushing is easier due to vacuum application. Models having 40 Heads or above are equipped with automatic electro-pneumatically controlled filling bowl level maintain system and overflow collection system.

Machine available in Single Head and Twin Head (Special Purpose Filling Machine available). Filled, Sealed and Code Stamped Tubes are ejected automatically on a stainless steel chute. Filling Hopper: 20 Lt. SS.(Jacket for Hopper Optional). Electrical: 1 HP 1440 RPM 440 V, AC 3 for both Single Head and Double Head Machine. Dimension: 925mm L x 775mm B x 2290 mm. H.Weight: 450Kg approx. All Contact Parts in Stainless Steel 304 / 316. Hot Jaw Sealing Lami Tubes. Optional: Stirrer Assembly(S.S), Vacuum System for Cooling Tubes.

PLC – Microprocessor. Disc Feeding Attachments. Print Registration Control (PRC). Set of Change Parts. Pocket Forming & Cooling Attachment. Roto Print Attachment

Table model positive displacement syringe type volumetric Liquid Filling Machine to fill a wide range of liquid. Suitable to fill a wide range of containers made of glass, HDPE, PVC, PET, Tin and aluminium. Models available in single head and double head.

AUTOMATIC STICKER LABELING MACHINE Sticker Labels in Roll Form Plain Paper labels. Available from varieties of Chromo Paper, Mirror Coat, (Cast coated) paper and synthetic material e.g. PE, PP, PVC, Polyester film etc. Labels printed as per your design. No bottles No labeling system. In built speed indicator & counter. Pressing unit for round container labeling.

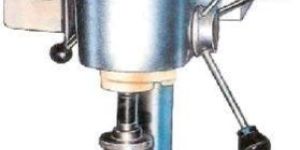

A table model which can accommodate a wide range of containers. Suitable for tightening prethreaded plastic or tin caps by means of a hand lever. Can also be modified to tighten pre - engaged lug caps. Provision for heating of lug caps prior to tightening to be done by user. Provided with a self releasing clutch mechanism to tighten the caps uniformly to a pre - set torque. Caps are to be placed manually. Provided with attachment suitable to tighten any one size of cap.

Machine fully constructed in Stainless Steel. Rinsing of washed / brushed second hand / new bottles. Provided with Mesh Filters . Pockets - Nylon (mounted), universal to handle any shape & size of bottle. No. of Tanks : 2 . Internal Wash : 2. External Wash : 1.

Filling of Glass / Pet / LDPE / PVC / Flexible Bottles / Containers / Jars . Number of Filling Nozzles : 6 & 12 . Machine constructed in SS 304 & SS 316 (MS option also available) . Height can be adjusted to suit different size & shape of bottle. Variable Speed .

Designed to seal a wide range of bottles / containers made of glass, tin, HDPE, PET and aluminium with standard RO / ROPP caps. Can accommodate standard caps ranging from 22mm upto 70mm. Can accommodate bottles / containers having diameter ranging from 25mm upto 100mm and height from 50mm upto 300mm. Provided with a rotary headset. Caps to be place manually. Can be also modified to seal rectangular tin containers from 0.25 lts. to 5 lts. with the help of can rest.

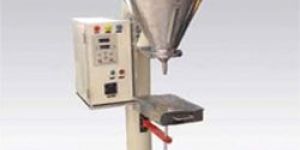

The Container/Bottle/Pouch is to be held manually below the nozzle. Required quantity can be set with the help of counter. Stirrer is provided for stirring the powder in the hopper. All contact parts are made of SS 304.

Filling in Glass / HDPE / Rigid Bottles / Containers / Jars. Number of Filling nozzles : Six ( option available for 4 / 8 Nozzles). Machine Constructed in SS 304 / MS construction also available. Double Overflow Tank : Stainless Steel built in Vacuum Pump. Widely used in liquor industry.

Rinsing of washed / Brushed Second Hand / New Bottles. Machine constructed in Stainless Steel. Provided with Mesh Filters . Pockets - Nylon (mounted), universal to handle any shape & size of bottles. No. of Tanks : 2 . Internal Wash : 2x2=4 . External Wash : 1x2=2 .

Built-in Philips automatic microprocessor. High quality cylinders and valves are standard equipments of the    machine. Pressure adjustable valve controls the speed fast/slow of the mould platen opening and closing. The valves controls the pressure of the compressed air, excessive air    is vent out through a silencer. Machine maintenance, testing and production have manual and semi    auto mode. Genuine parts are used to enhance machine life. One conveyor can have maximum two blowing machines.

Strong and sturdy construction. Construction in SS-304 pre-buffed laminated sheets. All pneumatics of FESTO make. All sensors of P & F make. AC Drive for Stepless speed control of Allen Bradley make. Centralized Lubrication System. Supplied with SS tank, wire mesh filter and centrifugal pump mounted on separate stand. [if water cleaning system used]. Machine is fitted with one set of change parts for one bottle/neck size

Separate SEW variator drive for inbuilt conveyer to adjust / synchronize the speed as per requirement. Capable of handling different size & shape of bottles and cap with additional change parts. Centralized lubrication ensures easy & smooth maintenance. No bottle – No Cap arrangement. No Cap – Machine stop. Motorised height adjustment. A.C. Frequency Drive for Speed variation. BPM Meter & Electronic Counter. Perfect sealing & threading quality. Output 60 to 300 BPM. Also, available Screw Capping Machine

Vacuum Filling cum ROPP Cap Sealing Machine Machine is manufactured in S.S. 304 to make it ideal for food grade applications. Systematic Surface finish procedures have been adopted to render glossy look. Versatile machine can fill different sizeshape of bottle with easy to fit change parts. With timing set points, to facilitate minimum change over time. All bottle change parts are made of cast nylon. Self lubricating UHMW wear strips are used on railing and underneath slat chains to eliminate wear-tear and minimize noise. Centralized lubrication is provided through oil pump. Precise speed variation through reputed make variable speed pulley. The machine conveyor is driven by a reputed make maintenance free Variator Drive Unit.

Integrated rinser-filler-capper , rotary, fully automatic. Fully neck holding design. No change parts, No Bottle – No Rinse / No Fill / No Cap. Fillling Size Capability from 200 to 2000 ml. SS304, non magnetic , torque adjustable capping heads. All contact parts are made from SS304.

Compact design for space saving. Specially developed ejector and loading arms. Specially hydraulic valve for fast mould opening/closing. High quality valves, cylinders for trouble free production. Philips 16 bit-XAG-49 PLC. Hydraulic Clamping system for better quality bottles. In built self - diagnostic function will display faulty areas with causes and remedies to ensure hassle free production. Recall memory up to 40 parameters settings. High sensitive sensors are provided for safety of machines. In built cooling system for neck cooling, mould cooling and oil cooling. Auto-feeder for performs to reduce man power. Specially designed Hopper Storage to hold 150 Kg preforms which ensure at least 3 hours of continuous production.

Suitable for application on a wide range of bottles/ containers made of glass, rigid, HDPE, tin and aluminium. Can accommodate standard caps ranging from 22mm upto 53mm. Provided with universal hopper for auto capping if the diameter of the cap is larger than its height. No bottle – no cap. Provided with attachments for any one size of bottle / containers and cap. Suitable for containers ranging in diameter from 25mm up to 75mm and height from 50mm upto 275 mm and standard caps ranging from 22mm upto 53mm. Provided with suitable reduction gear box, motor and variable speed drive mechanism. Available in various models according to the number of heads to suit your specific requirement

Ease of operation and maintenance. Suitable for all type of heat sealable laminated film, aluminum foil etc. Versatile, easy change over from one pouch to another. All contact parts are made up of food grade stainless steel 304/316. Pouch repeat can be adjusted from 25mm to 300mm. Option for inert gas flushing in the pouch.

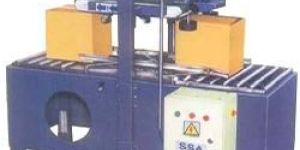

Self Centering Side Guides are provided for accurate centering. Machine is easy to install. Operational height adjustment up to 250 mm. No Tape Wastage. Better look & finish. Geared Motors – “SEW” Make, Imported Belts & Electrical Panel Rollers at in feed & out feed for carton movement.

SEMI AUTOMATIC BOTTLE RINSING MACHINE Rinsing of washed Brushed Second Hand New Bottles. Machine constructed in Stainless Steel. Provided with Mesh Filters. Pockets - Nylon (mounted), universal to handle any shape & size of bottles.

Power : 4 HP / 3 Phase
