5 megapixel high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67

Number Of Flower : Ir Bullet Camera

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. • UTC function supported • VGA, HDMI • 1080P real-time Display • High Definition Recording • Long transmission distance over coax cable • Supports various mobile monitoring • Supports multiple web browsers • 3G/4G /Wi-Fi Support • Two-way audio • Pentaplex operation

1 megapixel high performance CMOS Analog HD output, up to 720p resolution Day/Night switch DNR Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

1 megapixel high performance CMOS Analog HD output, up to 720p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS 3D DNR (Digital Noise Reduction) IP66

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS IP66

Number Of Flower : Bullet Camera

2 megapixel high performance CMOS Analog HD output, up to 1080p resolution Day/Night switch DNR Smart IR Up to 20 m IR distance Switchable TVI/AHD/CVI/CVBS

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 2Array & distance upto 40-50mtr 8mm lens, Angel of view: 70.9⁰ True Day Night with IR cut filter ( ICR) Long distance real time trasmision withcoaxial cable up to 500mtr IP66 compliance

Number Of Flower : Bullet Camera

Lens size : 8mm

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. • UTC function supported • VGA, HDMI • 1080P real-time Display • High Definition Recording • Long transmission distance over coax cable • Supports various mobile monitoring • Supports multiple web browsers • 3G/4G /Wi-Fi Support • Two-way audio • Pentaplex operation

Number Of Flower : DVR

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. • UTC function supported • VGA, HDMI • 1080P real-time Display • High Definition Recording • Long transmission distance over coax cable • Supports various mobile monitoring • Supports multiple web browsers • 3G/4G /Wi-Fi Support • Two-way audio • Pentaplex operation

Number Of Flower : DVR

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 20-30mtr 6mm lens, Angel of view: 70.9⁰ True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance

Number Of Flower : Bullet Camera

Lens size : 6mm

5 megapixel high-performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67

Number Of Flower : Dome Camera

5 megapixel high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 20 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67

Number Of Flower : Ir Bullet Camera

1/3” Progressive Scan CMOS Up to 4.0 megapixel resolution 4mm Up to 30m IR range Dual stream 120 db WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) IP67 Mobile Monitoring

5-in-1, AHD/TVI/CVI/CVBS/IP camera supported. • UTC function supported • VGA, HDMI • 1080P real-time Display • High Definition Recording • Long transmission distance over coax cable • Supports various mobile monitoring • Supports multiple web browsers • 3G/4G /Wi-Fi Support • Two-way audio • Pentaplex operation System Main Processor Embedded Processor Operating System Embedded LINUX Video and Audio Analog Camera Input 4 Channel, BNC HDCVI Camera 1080N,960H, 720P,D1@25/30fps AHD Camera 1080N,960H, 720P,D1@25/30fps TVI Camera 1080N,960H, 720P,D1@25/30fps CVBS Camera PAL/NTSC IP Camera Input Analog: 4*1080N (Analog) IP: 4* 2MP, 1.3MP, 1MP Audio In/Out 1 Channel input,1 Channel output, RCA Two-way Talk Reuse audio in/out, RCA Recording Compression H.264 Resolution 1080N, 720P, 960H, D1, CIF Record Rate Mainstream: 1080N@25/30fps;720P@25/30fps; 960H@25/30fps;D1@25/30fps Sub stream: D1@25fps/30fps;CIF@25/30fps Bit Rate 32Kbps ~ 4096Kbps Per Channel Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Audio Compression G.711A, G.711U Audio Sample Rate 8KHz, 16 bit Per Channel Audio Bit Rate 64Kbps Per Channel Display Interface 1 HDMI ,1 VGA Resolution 1920×1080, 1280×1024, 1440×900 Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 1 RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interfaces Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, P2P,IP Search , Dropbox Max. User Access 128 users Smart Phone iPhone, iPad, Android

Number Of Flower : DVR

5 megapixel high performance CMOS Up to 4.0 megapixel 4 mm Up to 30 m IR range Dual stream 120 dB WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) IP67 Mobile monitoring

Lens : 4 mm @F2.0, horizontal field of view 83.6°

Max. Image Resolution : 2688 × 1520

32CH DVR • 2 SATA port (Max.8TB per one), • H.265 Video Compression, 6-IN-1, • Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

Number Of Flower : DVR

Application : Surveillance

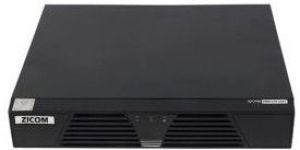

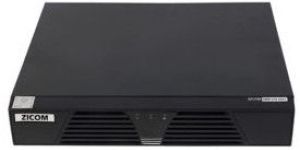

32 CH Embedded 5-in-1 DVR • 5 MP DVR • 4 SATA port (Max.8TB per one), • H.265+ Video Compression, 5-in-1, • Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

Number Of Flower : DVR

Application : Surveillance

32 CH Embedded 5-in-1 DVR • 2 MP DVR • 4 SATA port (Max.8TB per one) • H.265+ Video Compression, 5-in-1 • Support HDAVI(AHD), HDTVI, HDCVI, CVBS & ONVIF IP Camera Input

Number Of Flower : DVR

Application : Surveillance

1/2.9″ 2 MP Hi-Resolution Image Sensor • Progressive Scanning • 1080P Resolution with HDAVI Technology • Long distance real-time transmission • 3.6 mm Lens 2 MegaPixel Lens • IR LED Range 10-25m • Supports ultra-low illumination • True Day Night with IR Cut Filter (ICR) • IP66 Compliant • UTC Control Signal system: Pal Image sensor: 1/2.9” 2MP Digital Image Sensor Effective pixel: ＞1920(H)x1080(V) Horizontal resolution: 1080P @25FPS Ir : SMT Smart IR 12 LED , 850nm, IR Distance 10-25 Mtr Lens furnished: 3.6mm,2 Mega Pixel Lens; Angle of View: 70.9° Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10,000 sec Min illumination: ‘0.001Lux @ (F1.2,AGC ON), 0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10°C ~ +60°C, Humidity 90% or less (non-condensing) Power supply: DC 12V ± 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 110mm*110mm*88mm, 270g

Number Of Flower : Dome Camera

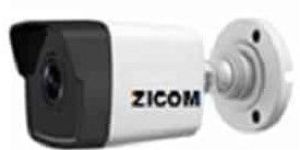

1/2.7” 2 MP Progressive CMOS Sensor H.265+ & H.265 Dual-Stream Encoding 3.6mm Lens, 2 MP 10 to 25m IR range IP 66 Compliant PoE Enabled Image Sensor: 1/2.7″ 2MP Progressive CMOS Sensor Effective Pixels: 1920(H)*1080(V) Minimum Illumination: Color: 0.01 Lux @Fl.2, B/W: 0.001 Lux@Fl .2, O Lux at IR ON S/N Ratio: >60dB IR Distance: IR Distance 10-25Mtr Shutter Speed: Auto, Manual Mode: 1/50 sec 1/10000 sec WDR: 80db IR On/Off Control: Auto/ Manual IR LEDs Lens: 18 Smart LED Lens Type: Fixed Mount Type: M12 Max. Aperture 3.6mm Lens Frame Rate: I 25/30fps Bit Rate Control: CBR/VBR Bit Rate: Primary 1024-8192Kb/s, Secondary Stream: 341-1706Kb/s Day/Night: Automatic/Color/Black and white Exposure Mode: Automatic/Manual-( 1/50-1 / 10000) BLC Mode: On/Off Profiles: Auto, Low Light Priority, High Light Priority White Balance: Indoor/Outdoor/Automatic

Number Of Flower : Bullet Ip Camera

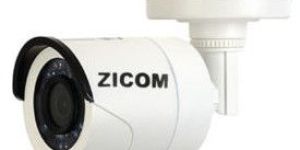

5MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 10-25mtr 3.6mm lens True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance Signal system: PAL @25FPS Image sensor: 1/2.7” 5MP Progressive Scan Digital Image Sensor Effective pixel: ＞2560×1920, 5 MP Horizontal resolution: 5MP@25FPS, 1080P@25 FPS, 720P@25FPS Ir : SMT Smart IR 12 LED, 850nm, IR Distance 20-30Mtr Lens furnished: 6mm,5 Mega Pixel Lens Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10,000 sec Min illumination: 0.001Lux @ (F1.2,AGC ON),0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10°C ~ +60°C, Humidity 90% or less (non-condensing) Power supply: DC 12V ± 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 157mm*107mm*77mm, 270g

Number Of Flower : Bullet Camera

Lens : 3.6mm

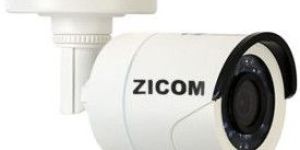

2MP HI-Resolution Image sensor 1080P resolution with HDTVI technology 18 IR smart LED & distance up to 10-25mtr 3.6mm lens True Day Night with IR cut filter ( ICR) Long-distance real-time transmission with coaxial cable up to 500mtr IP66 compliance Signal system: PAL @25FPS Image sensor: 1/2.9″ 2 MP Hi-Resolution Image Sensor Effective pixel: ＞1920(H)x1080(V) Horizontal resolution: 1080P @25FPS Ir : SMT Smart IR 18 LED , 850nm, IR Distance 10-25Mtr. Lens furnished: 3.6mm,2 Mega Pixel Lens,Angle of view:70.9° Lens interface: M12 Signal/noise ratio: More than 80db Shutter control: 1/25 sec to 1/1,00,000 sec Min illumination: 0.001Lux @ (F1.2,AGC ON), 0 Lux (IR LED ON) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10°C ~ +60°C, Humidity 90% or less (non-condensing) Power supply: DC 12V ± 10% Current, power consumption: 250ma , Max 3.5W DIMENSION (lxwxh), WEIGHT: 185mm*88mm*88mm, 340g

Number Of Flower : Bullet Camera

Lens size : 3.6mm

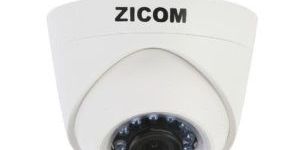

1/2.7″5MP Progressive Scan Digital Image Sensor Long distance real-time transmission IR LED Range 10-20m Supports ultra low illumination True Day /Night T3.6mm. 5 Mega Pixel Lens UTC Control 4 IN 1 output (AHD-TVI-CVI-CV13S) Signal system: Pal @25FPS Image sensor: 1/2.7” 5MP Progressive Scan Digital Image Sensor Effective pixel: ＞2560×1920, 5 MP Horizontal resolution: 1080P @25FPS Ir: SMT Smart IR 12 LED , 850nm, IR Distance 10-20 Mtr Lens furnished: 3.6mm,5 Mega Pixel Lens; Lens interface: M12 Signal/noise ratio: More than 60db Shutter control: 1/50 sec to 1/10,000 sec Min illumination: ‘0.001Lux @ (F1.2,AGC ON), 0 Lux (IR LED On) Synchronisation: Internal White balance: Auto Back light compensation: Auto Gain control: Auto Video output signal: Hd Analog Output Transmission distance: Up to 500m over coaxial cable Operating conditions: -10°C ~ +60°C, Humidity 90% or less (non-condensing) Power supply: DC 12V ± 10% Current, power consumption: 250mA , Max 3.5W DIMENSION (lxwxh), WEIGHT: 145mm*140mm*120mm, 460g

Number Of Flower : Dome Camera
