Ace Network Solutions Yadavagiri, Mysore, Karnataka

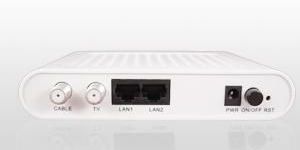

We offer Eoc slave is using chips of intellon. It provides stable and high specific activity speed broadband access. Is compact and light because it uses plastics casing. It can be put on the tv cabinet or table. These are functional feature:  physical layer bandwidth is 200mbps and mac layer bandwidth is 100mbps. It can support hd video and other high bandwidth function  frequency band is 7.5~30mhz so has no influence on catv products  using plastics casing  support network management function in the head end equipment ,eoc master .no need subscribers to do any technical operation ,easier for use .  support auto-update and auto-configuration  support qos, provide transmission guarantee for various type of business data  support bandwidth control. It can limit up and down stream  broadcast storm limitation  support encryption transmission and protect sensitive data  support terminal isolate.

We are offering eoc master. the eoc master based on homeplug av solution for ethernet access on coax. It works together with eoc slave which is based on homeplug av solution. It provides coax cable ethernet access to users based on catv coax cable which has layer-two ethernet data transmission channel. ace5815 uses int6400 chipset and has ofdm module technology which has highly interference resistance. It takes 7.5mhz-30mhz frequency and 200mbps physical layer bandwidth. The max mac layer bandwidth is 100mbps. ace5815 has no influence on catv service and can be convenient constructed without changing current catv network. one master equipment could support 253 slaves at most. The network structure can be star type or tree type.

We are offering acenet 8 pon epon olt 1u. standalone l3 aggregation olt acenet 8 pon epon olt 1u acenet 8 pon epon olt 1u series, which has high reliability, highly dense epon access and robust switching and routing abilities, is a new generation of broadband and multi service access olt devices oriented towards the service-integrated network. Standard configuration comes with 2 pon sfp and 4 gigabit combo, 4 gigabit sfp optical ports. You can add 6 more additional pon sfp, max of 8 pon sfp on this system. main strengths abiding by ieee802.3ah, acenet 8 pon epon olt 1u series meets relevant requirements of gepon olt regulated in technical requirements of ydt1475-2006�epon technical requirements. acenet 8 pon epon olt 1u products are standalone devices with high density and optional 10g uplink expansion, so they are easy for expansion and upgrade. acenet 8 pon epon olt 1u has l2l3l4 functions, supports 128gbps backplane bandwidth, static routes, rip, ospf and so on. It supports advanced functions such as qos, bandwidth control and multicast, adding extra values to the whole network. this series of products has high reliability. The power source can be backed up through �1 + 1� mode. At the same time, vrrp, stp and lacp provide further reliability. a maximum optical coupling ratio of 1:64, up to 1024 onus and a 20km transmission distance. acenet 8 pon epon olt 1u supports various interface types including ge, te and epon. acenet 8 pon epon olt 1u series supports ctc2.02.13.0 wholly, automatically detects and works harmoniously with onus made by different manufacturers. it supports the rfc 1213 snmp protocol.

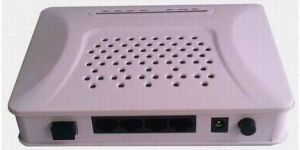

We are offering ace 4fe epon onu networking equipment, ace network solutions ace 4fe epon onu is a pure data-type epon onu is a passive optical networking customer premises equipment (cpe), based on the broadband access of epon technology. Ace 4fe epon onu port communicates with our entire olt head end device. epon technology is a rising technology that combines with pon and ethernet technological superiority. The epon olt device communicates with ace 4fe epon onu devices for inter-connection through the passive optical networking and is combined with the technology of sfp bidi, so epon system could use less fiber resources to meet the needs of operator about the multiuser for multiple service access. Epon technology is based on the technology of ethernet, and epon device is well compatible with the existing network. Meanwhile, epon device provides the flexible and reliable qos service to the customers based on the technology of dba. Epon onu ace1fe supports symmetrical 1.25 gbps transmission rate of uplink and downlink, and communicates with our entire head-end device. It provides the customer with the guarantee of stable qos, and the flexible bandwidth allocation of ethernet and ip integrated service. Ace 1fe adopts single fiber wdm technology with downlink wavelength 1490 nm and uplink wavelength 1310 nm. It only needs one-core fiber to transmit data service.
