anupam enterprises Ramdaspeth, Nagpur, Maharashtra

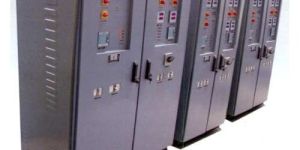

Industrial Battery Charger , Electronic Battery Charger We have gained immense expertise in offering a comprehensive range of flawless Industrial Battery Chargers. These chargers are fabricated using best quality raw material and modern machinery at our in-house manufacturing facility. Our offered chargers are user friendly, high in performance and have longer service life. Appreciated in the market for their low maintenance, high frequency technology, compact design and soft start. Our chargers are in tandem with globally excepted quality standards and norms

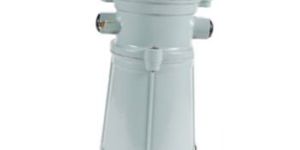

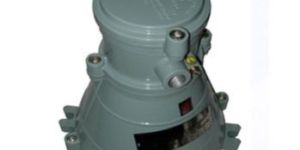

Product: flameproof reaction vessel lamp description declarations flpwp reaction vessel lamp 100w gls. Cat no. Rvl-01 design confirm to standard is2148-2004 iec60079-1(2001) & is13346-2004 iec 60079-0(2000) ex-protection :- ex-“d” type gas gr.:- I ,iia &iib moc:- die cast aluminum alloy lm6 zone classification:-zone 1 & zone 2 ip protection class:-ip65 finish :- light gray epoxy polyester powder coating shade no 631 earthling:-internal -01 no. External -02 nos. Cable entry:- 03 no. For ¾” et “o” ring:-endless molded neoprene hardware:-in stainless steel

Product details product: flameproof weatherproof reaction vessel lamp description declarations flpwp reaction vessel lamp 100w gls. Cat no. Rvl-01 design confirm to standard is2148-2004 iec60079-1(2001) & is13346-2004 iec 60079-0(2000) ex-protection :- ex-“d” type gas gr.:- I ,iia &iib moc:- die cast aluminum alloy lm6 zone classification:-zone 1 & zone 2 ip protection class:-ip65 finish :- light gray epoxy polyester powder coating shade no 631 earthling:-internal -01 no. External -02 nos. Cable entry:- 03 no. For ¾” et “o” ring:-endless molded neoprene hardware:-in stainless steel

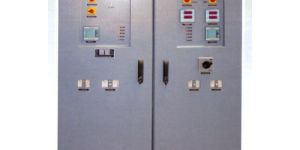

We are offering our patrons a wide range of Electronic Battery Chargers, which comprises two float cum boost chargers. These chargers are fabricated with power SCRs Diodes in full wave full controlled Bridge configuration. The FCBC charger fulfill the need of load and float charging currents, for these crust is set in AUTO mode. After the selection of AUTO mode the charger, which is set in BOOST mode after completion of this mode it inset to FLOAT mode for the purpose of flowing current, now another charger, which is set to BOOST mode after finishing of its BOOST mode it gets automatically set on FLOAT mode for transferring the load. This way both the chargers becomes ready to supply current for loading. In these chargers, systems for the selection of discharging period and selection days between two discharging are also provided. Configurations: Float Cum Boost (FCBC) Float and Boost (FC & BC) Float and Float Cum Boost (FC & FCBC) Dual Float Cum Boost (DFCBC) All redundant versions of above Application Customer specific configuration Salient Features of Industrial Battery Charger: In general the system confirms to IEC 146 and IS-4540 standards Soft start Battery path current limiting Automatic float cum boast change over Built in digitally controlled automatic regulation circuit Built in auto phase reversal operation Smoothing filter circuit to limit AC ripple Charger overload protection Assisted with advanced battery monitoring (ABM) DayTime selector switches for automatic charge discharge cycle Insulation class for magnetics as per IS standards 7 tank processed powder coated painting shades Powder coated paints as per ISRAL standards Controller based advanced annunciation Led Indications: Mains on DC on Battery on Charge Battery charge Rectifier trip DC ov Input ov Input uv Modes: Auto Mode. Manual Mode.

Avail from us a wide range of precision-engineered Constant Voltage Transformers that are based on the principle of static and magnetic (Ferro Resonant) principle. In order to produce self generated AC Flux field, which is indirectly excited from input winding,the output winding display an intrinsic energy storage characteristic, in addition to this, energy storage adjusts in conjunction or mains capacitor. Whereas, input winding usually runs at very moderate levels of flux inkage. Which further, results in instantaneous on tog regulation, sine wave output, high isolotion between output & input, no spikes, no transient, and noise less operation. Features: Maintenance free (no moving part) Very fast correction speed High efficiency > 87% Zero volt potentials between output neutralground Protected against overload short circuit Technical Data: Technical Specification of Constant Voltage Tranformer: Capacity 150 VA to 5 KVA Input Voltage 170V to 270V AC Frequency 50Hz+1% Phase Single Output Voltage 220230V + 1? Waveform Sinusoidal Efficiency 90% at full load Insulation Class B Response Times 10ms Correction Speed 100VSec
