HARISON PUMPS PVT LTD Hingna, Nagpur, Maharashtra

These are virtually completely non - clog impellers can handle fibrous materials as well. liquids with entrapped gases or air pockets too can be pumped out. have good abrasive resistance properties, as contact of impeller with liquid is minimal.

Vertical wet pit type with Pump submerged and motor at the top coupled by extended shaft. Available in SS, Ci, Cast Steel and rubber lined constructions. Column pipe and discharge pipe are mounted on the same motor stool frame, this enables to pull out the pump for maintenance purpose without emptying the pit.

• Vertical wet pit type with Pump submerged and motor at the top coupled by extended shaft. • Available in SS, Duplex steel, CI, Cast Steel and rubber lined constructions. • Available for column length upto 3 mtrs. • Heavy duty thrust bearing is used. Permanently lubricated durable lower bush bearing can be provided in Bronze, Teflon or Rubber etc. As per application. • Additional Intermediate bush bearing is provided after every one meter column length. • Ideal for handling liquid at high temperature or which are corrosive or inflamable. • Chokeless, screen less, and glandless pump with non-clog impeller. • Vertical flange mounted motor as prime mover

• For handling liquids containing max. solid sizes of 50 mm, 80 mm and 100 mm sphere Impeller type - vortex channel type with two vane or single vane. semi-open single vane. • Motor - "F" class insulated dry submersible motor suitable for 415 vac, 50 hz, three phase power supply with IP 68 protection • Motor is having thermal overload protection • Motor speed of 960, 1450 or 2800 rpm as per requirement suitable for pumping heads and discharge. • Motor is available with or without cooling jacket. • Submersible cable of suitable size is provided of 20 mtrs length. • Dual mechanical seal with pump side seal of silicon carbide vs. silicon carbide. • Horizontal discharge with suitable size flange or automatic guide rail coupling. • Pumps can be supplied with skirt base or with automatic guide rail coupling system for pulling out the pump from the pit without removing any nut or bolts. • Material of construction - all cast iron for non - jacketed type. • For jacketed type - all cast iron with outer cooling jacket of stainless steel or mild steel. • heads - up to 40 mtrs • Capacities - up to 600 cubic meters/hr. • Motor ratings - up to 35 kw

For handling liquids containing max. solid sizes of 50 mm, 80 mm and 100 mm sphere Impeller type - vortex channel type with two vane or single vane. semi-open single vane.Dual mechanical seal with pump side seal of silicon carbide vs. silicon carbide.

•  For Handling water suspended solids upto 50 mm sphere. • Non - Clog vortex Impeller • Motor - 2800 rpm motor with F class insulation, suitable for three phase power supply of 415 VAC, 50 Hz. Available in 60 Hz frequency and specific voltage configurations. • Motor is jacketed & filled with the coolant. Thus the pump is suitable for working in worst working conditions having capacity for longer period of dry running. • Dual ball bearings. • Dual meachnaical Seal Motor Side : Carbon Vs. Ceramic Pump Side : Silicon Carbide Vs. Silicon Carbide • Cable - of suitable rating x 4 core double sheathed submersible cable of 10 mtrs. length provided as standard length. Extra cable length can be provided with prior information. • Material of Construction : All cast iron with Stainless Steel Jacket. • Stainless Steel Hardware for easy maintenance.

Portable and Light Weight Pumps In Stainless Steel Construction. Portable and Light Weight Pumps In Stainless Steel Construction. Portable Self Priming Bottom Suction Submersible Dewatering Pump - Motor On Top and Jacketed.

Automatic Grade : Fully Automatic

Application : Industrial

Portable and Light Weight Pumps In Stainless Steel Construction. • Portable and Light Weight Pumps In Stainless Steel Construction. • Portable Self Priming Bottom Suction Submersible Dewatering Pump - Motor On Top and Jacketed As Standard Model - • All Wetted Parts in Stainless Steel Construction. • All Cast Parts in Investment Castings of CF8 • All Fabricated Parts in S.S.-202.Pump Shaft in S.S.-410 • Motor Is Oil Filled With Submersible Winding. • Water Proof, Oil Proof Submersible Cable of 4 Core Of Suitable Conductor Size. • Power Supply - 415VAC, 50HZ for Three Phase and 230VAC 50HZ For Single Phase. Also Available In - • CF8M, 904, 904l, 316l, 316, 304, WCB and Other MOC for Specific Applications. • Input Power of Specific Voltages and Frequency Configurations. • Can Be Made Suitable For Sea Water Handling, Effluents, And Other Corrosive Liquids. • All Cast Parts in Investment Castings. • Dry Motor With Class “F” Or Class “H” Insulation.

Domestic pumps For de watering of basements, cable trenches and low lying areas in residential and small commercial complexes. Motor- 2800 rpm oil filled with "F" class insulation and temperature rise of "B" class, suitable for three phase and single phase power supply. The motor is jacketed & filled with the coolant. Thus the pump is suitable for working in worst of the working conditions dry running. Dual ball bearing running in oil bath. Dual mechanical seal. Extra cable can be provided with prior information.

These are single vane or two vane impeller with free passage for solids. the area of free passage determines the maximum solid handling capacities. These impellers have good hydraulic efficiencies

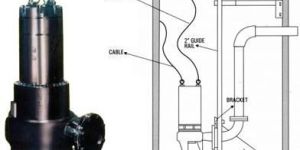

A bracket is provided at the discharge side of the pump, At the center of the bracket a rubber ring is mounted .A pedestal is fixed to the bottom of the plate by foundation bolts,winch are grouted. The pump is lowered into the pit through a guide rail pipe.On reaching the pedestal the bracket engages into the pedestal and the rubber ring prevent leakage of water. The pump can be lifted back by pulling it out without removal of any nuts or bolts.
