Instrumentation Equipment Dealers in Gokulpeth, Nagpur

(8 products available)
  • Power Control Cable

    Power Control Cable

    50 / Meter

    • Number Of FlowerPower cable
    • Usage/ApplicationIndustrial
    • Length1-3 mtr
    • Protection TypeShielded
    • Flame RetardantYes
    • Jacket MaterialPVC
    • Conductor MaterialCopper
    • Rated Voltage400-800 V
    ...more
  • Four Channel on off Control Circuit

    Four Channel on off Control Circuit

    Get Price Quote

    • MaterialFrp
    • ApplicationControl Panels
    • Packaging TypeAvailable in Many Colors
    • Automatic GradeAutomatic
    • Tensile Strength0-25Mpa
    • FeatureEasy To Install
    • Total Carbohydrate1 Year

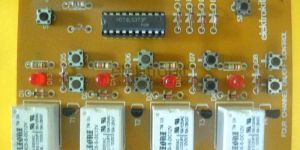

    • We are a noted Manufacturer and Supplier of Four Channel On/Off Control Circuit in India. This four-channel control uses only one D type latch IC1, and some associated circuitry to control four different gadgets. To control more devices, identical circuits, in multiples, can be used. IC1 consists of eight latches, out of which four are used here. The circuit incorporates the following features : Individual ‘on/off’ control for all channels. Emergency ‘off’ control for all channels. Immediate ‘on’ control for all channels LED indication for ‘on’ channels Optional push-to-on buttons or tectile switches.   About the Circuit : When one presses the ‘on’ switch (S1) of channel-1, a logic low is applied to data input D0 (pin3). The same level appears on the data output Q0 (pin2). Because latch enable pin LE (pin11, active high) is connected to +5V, and the output enable OE (pin1, active low) is pulled down using resistor R9. At the same time, Q0 output is fed back to D0 input, which thus keeps the common junction of D0 and Q0 at low level, even after releasing ‘S1’. This low level is applied to the base of transistor T1 through diode D9 to turn it on, and relay RL1 activated. LED D13 glows indicate that channel-1 is ‘on’. The other channels can also be switched on, as desired, in a similar manner. To switch of channel-1, ‘off’ switch ‘S5’ of channel-1 is pressed to apply logic high to junction of D0 and Q0. Because of the feedback from Q0 to D0 junction remains high even after releasing the switch S5. As a result, relay RL1 is deactivated and LED D13 also goes off. In the case of emergency, press the emergency off switch ‘S9’ to disable all the outputs of IC1. The outputs of IC1 are in high impedence state, all the relays gets deactivated. If all the channels are to be switched on simultaneously, a ‘low’ logic level is applied via diodes D9 through D12 to data input D0 to D3 by pressing S10 to activate all the relays. ON/OFF four channels, with ‘All ON’ and ‘All OFF’ facility
    ...more
  • Industrial Automation System

    Industrial Automation System

    Get Price Quote

    Industrial Automation System, Custom Built Electronic System
  • Automotive Components

    Automotive Components

    Get Price Quote

    Automotive Components, Automotive Part
  • Temperature Transmitter

    Temperature Transmitter

    Get Price Quote

    Temperature Transmitter, Electrical Control Pane
  • Electrical Panels

    Electrical Panels

    Get Price Quote

    Electrical Panels, Solar Street Lights, Brown Suga
  • Solar Panels

    Solar Panels

    Get Price Quote

    Solar Panels, Solar Products, Solar Accessorie
  • Yaskawa AC Drive

    Yaskawa AC Drive

    Get Price Quote

    Yaskawa AC Drive, Capacitor Duty Contactor, Detuned Reacto
