kjv Alloy Conductors P. Ltd. Hingna, Nagpur, Maharashtra

Number Of Flower : Bare

The Insulated Aluminium Wires, which we offer, are largely used for Windings of Transformer, L.V. & H.V. Coils. These Insulated Aluminium Wires are available in different sizes are selected by customers as per their design requirements. We use high-grade quality E.C. Insulation Kraft Paper of Sweden make, so that uniform covering and full insulation of these Insulated Aluminium Wires are assured.

We are the main supplier of this product.

Material : Aluminium

Certification : ISI Certified

These Bare Aluminium Alloy Wires (Diameter not less than 0.5mm) are made from a wide range of aluminum alloys, depending on the customer requirements. Further, the Bare Aluminium Alloy Wires are sold by us to Manufacturers of Cables, Junctions, Clips, Eyelets, Rivets, Nails, Screws and other Household Items.

Whether it is high breakdown voltage or exceptional resistance to heat and other corrosive liquids; this Aluminium Wire Rod scores high in every aspect of functioning. We are a respected name to get world-class Aluminium Wire Rods at the market leading rates. As these Aluminium Wire Rods are used in demanding applications, they possess high resistance to wear and tear. Details : Specification : EC 1350, 1370 /alloy/de-oxidized /t4 wire rod with diameter 12.5mm/ 9.5mm/ 7.6mm/ 6.5mm Sizes Available : All sizes for 1350/1370/6201/6101/ flip coil, de-oxidized and 99.9% purity

Application : Industry

Material : Aluminum

Aluminium conductor steel reinforced consists of a solid or stranded steel core surrounded by strands of aluminum (e.c. Grade). Aluminium conductor steel reinforced is available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength aluminium conductor steel reinforced is used for river crossings, overhead ground wires, installations involving extra long spans etc. Against any given resistance of conductor, aluminium conductor steel reinforced may be manufactured for having a wide range of tensile strength as per requirements. The principal advantage of these aluminium conductor steel reinforced is high tensile strength so that they are used for longer spans with less supports. Due to the greater diameter of aluminium conductor steel reinforced, a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines. complying with : astm b232: 1981 c 49-1965 as 1220 - part I nfc 34125 din 48204 iec 209 is 398 part 2 & 5 bs 215 part 2

Aluminium Conductor Steel Reinforced consists of a solid or stranded steel core surrounded by strands of aluminum (E.C. GRADE). Aluminium Conductor Steel Reinforced is available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength Aluminium Conductor Steel Reinforced is used for river crossings, overhead ground wires, installations involving extra long spans etc. Against any given resistance of conductor, Aluminium Conductor Steel Reinforced may be manufactured for having a wide range of tensile strength as per requirements. The principal advantage of these Aluminium Conductor Steel Reinforced is high tensile strength so that they are used for longer spans with less supports. Due to the greater diameter of Aluminium Conductor Steel Reinforced, a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage Overhead lines. Complying With : ASTM B232: 1981 C 49-1965 AS 1220 - PART I NFC 34125 DIN 48204 IEC 209 IS 398 Part 2 & 5 BS 215 Part 2

Brand Name : KJV

Shape : round

Material : Aluminium Alloy

Insulation Material : None

Conductor Type : Solid

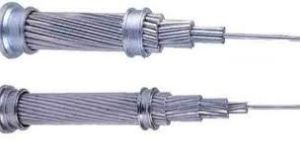

Also known as aluminum stranded conductor, this All Aluminium Conductor’s AAC is manufactured from electrolytically refined (E.C. Grade) Aluminum, having purity of minimum 99.5% of aluminum (with minimum conductivity of 61%). The All Aluminium Conductor is used mainly in urban areas because the spacing is short and the supports are close.All Aluminium Conductor, which we offer, is made up of one or more strands of aluminum wire depending on the end usage. These All Aluminium Conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance.Benefits : Conductivity of AAC conductor is high AAC conductor is corrosion resistant Standards : BS 215 part 1Complies With : IS 398 Part 1 IEC 207 DIN 48201-5 NFC 34120 AS 1531 - part ii C 49-1965 ASTM b231 : 1981

This All Aluminium Alloy Conductor is made from aluminum-magnesium-silicon alloy of high electrical conductivity containing magnesium (0.6-0.9%) and silicon (0.5-0.9%) to give it better mechanical properties after treatment. These All Aluminium Alloy Conductors are generally made out of aluminum alloy 6201 (minimum conductivity is 54%). Further, this All Aluminium Alloy Conductor has a better corrosion resistance and high strength to weight ratio and improved electrical conductivity than ACSR Conductor on equal diameter basis. Benefits : Higher tensile strength as compared to AAC conductor Higher conductivity as compared to ACSR conductor Better corrosion resistant than ACSR conductor Complies With : ASTM B399: 1981 c 49-1965 as 1531 - part II NFC 34125 DIN : 48201-6 IS 398 part 4 BS 3242: 1970

AL59 Alloy Conductors are manufactured from Al-Mg-Si (aluminum-magnesium-silica) rods. The AL59 Alloy Conductor comprises an inner core and concentrically arranged strands forming the inner and outer layers of the conductor. AL59 Alloy Conductors are limited by a maximum current carrying capacity of 838 amperes. The material of construction of AL59 Alloy Conductor allows it to transfer up to 1307 amperes of current and evacuate up to 1405 mw of power (56 per cent higher than ACSR Conductors). Additionally, AL59 Alloy Conductors have 9 per cent better 'strength to weight ratio' and 8 per cent lower sag when compared with ACSR Conductors; this enables effective optimization of tower designs and future proofing of the grid. In view of development of new power transmission and distribution grids by global power incumbents, AL59 Alloy Conductors would have a special significance while designing transmission line networks, as the properties of these conductors enable superior power evacuation while optimizing the cost of the entire grid.

In Aerial Bunched Cables, there are three insulated cores and one insulated neutral core (optional) present around a bare or covered messenger wire, carrying the load of the cable. There can be one additional power core for street lighting. Power And Neutral Cores : Here, the conductor is composed of h2 or h4 grade aluminum of class 2 grade to is: 8130/84. Popular sizes are 16mm2 to 95mm2. Again, insulation can be either cross linked polyethylene or polyethylene.Messenger Conductor : These are made of either galvanized steel or aluminum alloys. Core identification : Either by number printing or by ridges on insulated cores; in comparison to bare overhead lines, Aerial Bunched Cable has very high degree of safety and reliability due to the conductors being insulated with the best dielectric medium. This, resultantly, ensures good protection against ground and line faults leading to considerable increase in system efficiency as against bare overhead lines. The problem of free-clearance is also minimized. Aerial Bunched Cable system is specially suited in limited space conditions such as densely populated areas where installing underground cables is impossible or extremely expensive. Benefits : High degree of safety and reliability Tampering with power-line like hooking also gets eliminated resulting in much more efficient utilization of power

Application : Overhead

Number Of Flower : Bare

Conductor Material : Aluminum

Insulation Material : NONE

Also known as aluminum stranded conductor, this all aluminium conductor’s aac is manufactured from electrolytically refined (e.c. Grade) aluminum, having purity of minimum 99.5% of aluminum (with minimum conductivity of 61%). The all aluminium conductor is used mainly in urban areas because the spacing is short and the supports are close. all aluminium conductor, which we offer, is made up of one or more strands of aluminum wire depending on the end usage. These all aluminium conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance. benefits : conductivity of aac conductor is high aac conductor is corrosion resistant standards : bs 215 part 1 complies with : is 398 part 1 iec 207 din 48201-5 nfc 34120 as 1531 - part ii c 49-1965 astm b231 : 1981
