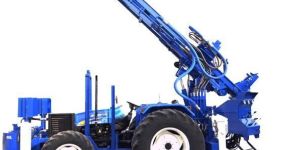

PRD Tractor Mounted Drilling Rigs Four Hydraulics leveling jacks with pilot operated check valves, Hydraulically operated break out wrench for breaking drill pipes Joints, Swing out Control panel is located at rear location for easy operation of drilling rig, AIR Compressor on Inlay for 0th Only, Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories.
PRD Tractor Mounted Drilling Rigs Four Hydraulics leveling jacks with pilot operated check valves, Hydraulically operated break out wrench for breaking drill pipes Joints, Swing out Control panel is located at rear location for easy operation of drilling rig, AIR Compressor on Inlay for 0th Only, Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories.
PRD Tractor Mounted Drilling Rigs Hydraulically operated break out wrench for breaking drill pipes Joints Swing out Control panel is located at rear location for easy operation of drilling rig Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories Core Drilling, RC Drilling, Geotechnical Drilling.
PRD Tractor Mounted Drilling Rigs Hydraulically operated break out wrench for breaking drill pipes Joints Swing out Control panel is located at rear location for easy operation of drilling rig Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories Core Drilling, RC Drilling, Geotechnical Drilling.
CapacityTractor New Holland 75 HP or 90 HP 4x4 Pile drilling 1200 mm diaupto -50mtrs - DMC (Direct Mud Circulation ) method, DTH Curn Rotary Drilling 200 mtrs, 6- bore
Mast StructureSturdy Steel Channel Construction Length 5000 mm, Head travel of 4000 mm rod handling 3 mb- drill rods 4 � " 0D
Top Head Rotary DriveCapable speed range from 0 - 80 rpm, Torque of 400 kgs RIP' through spur gears.
Feed SystemPull up force 7900 kgs, pull down force 5400 kgs Pull up speed 35 mtrl min, Pull down speed 23 mtr/ min
StabilizerFour Hydraulics leveling jacks with pilot operated check valves
Breakout WrenchHydraulically operated break out wrench for breaking drill pipes Joints
Control PanelSwing out Control panel is located at rear location for easy operation of drilling rig
OptionalAIR Compressor on Inlay for 0th Only
Auxiliary Winch (optional)Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories
CapacityA mini core dulling rig has the following capacity under favorable drilling condition BQ: 300 Mtrs I ND: 200 Mtrs I HQ: 150 Mtrs
MountingThe rig unit is mounted on a Truck, Crawler or on skid as optional.
HydraulicPower for hydraulic is taken from the separate deck engine.
Main WinchSingle line capacity: Bare drum 6000 Pounds (3 Ton) Bare Drum Speed: 225 kg-mtrs Cable Size: 12 mm of non-twist with safety hook.
Wire line WinchCapacity: 300 meters of 4.76 mm rope Line Pull: Bare Drum 2600 Pounds Line Speed: Bare Drum 80 mtr / minute
Mast & Feed SystemMedium size box structure with 100 x 70 x 4000 mm feed cylinder raised & lowered by mast raising cylinder fitted with a dumping cylinder for angle drilling from 0 to 45 degree
Mast overall length6.4 Mtr
Drill rod handling capacity3 Mtr
Head travel4 Mtr
Head travel1:1 (direct drive)
Pull up force12,000 Kg @160 bar
Pull down force6,400 Kg @160 bar
CapacityPRD two stage 3 speed gear box with single speed hydraulic motor.
Capacity:A mini core dulling rig has the following capacity under favorable drilling condition BQ: 300 Mtrs I ND: 200 Mtrs I HQ: 150 Mtrs. Mast & Feed System:Medium size box structure with 100 x 70 x 4000 mm feed cylinder raised & lowered by mast raising cylinder fitted with a dumping cylinder for angle drilling from 0 to 45 degree. Rotary Head :PRD two stage 3 speed gear box with single speed hydraulic motor. Hydraulic Motor: 102 CC displacement gear motor Working pressure: 175 bar Maximum flow: 90 Ipm Imported water swivel for core drilling application. Rotary head has hydraulic sliding arrangement.
Capacity:A mini core dulling rig has the following capacity under favorable drilling condition BQ: 300 Mtrs I ND: 200 Mtrs I HQ: 150 Mtrs. Mast & Feed System:Medium size box structure with 100 x 70 x 4000 mm feed cylinder raised & lowered by mast raising cylinder fitted with a dumping cylinder for angle drilling from 0 to 45 degree. Rotary Head :PRD two stage 3 speed gear box with single speed hydraulic motor. Hydraulic Motor: 102 CC displacement gear motor Working pressure: 175 bar Maximum flow: 90 Ipm Imported water swivel for core drilling application. Rotary head has hydraulic sliding arrangement.
Capacity:Tractor New Holland 75 HP or 90 HP 4x4 Pile drilling 1200 mm diaupto -50mtrs - DMC (Direct Mud Circulation ) method, DTH Curn Rotary Drilling 200 mtrs, 6- bore. Mast Structure:Sturdy Steel Channel Construction Length 5000 mm, Head travel of 4000 mm rod handling 3 mb- drill rods 4 � " 0D. Feed System:Pull up force 7900 kgs, pull down force 5400 kgs Pull up speed 35 mtrl min, Pull down speed 23 mtr min.
Capacity:Tractor New Holland 75 HP or 90 HP 4x4 Pile drilling 1200 mm diaupto -50mtrs - DMC (Direct Mud Circulation ) method, DTH Curn Rotary Drilling 200 mtrs, 6- bore. Mast Structure:Sturdy Steel Channel Construction Length 5000 mm, Head travel of 4000 mm rod handling 3 mb- drill rods 4 � " 0D. Feed System:Pull up force 7900 kgs, pull down force 5400 kgs Pull up speed 35 mtrl min, Pull down speed 23 mtr min.
blast hole drill System consists of four hydraulic leveling jacks with heavy duty box type and pilot operated check valve. Operating Panel: Centralized control panel for drilling and track controls, Auxiliary Winch: Hydraulic operated auxiliary winch is mounted on right side of main frame for handling of drill rods ,tools and accessories , Break Out Wrench: Hydraulic operated break out wrench for breaking drill rods, Compressor Option: Diesel power air screw compressor for drilling 650200 ,600200 and 540185.
blast hole drill System consists of four hydraulic leveling jacks with heavy duty box type and pilot operated check valve. Operating Panel: Centralized control panel for drilling and track controls, Auxiliary Winch: Hydraulic operated auxiliary winch is mounted on right side of main frame for handling of drill rods ,tools and accessories , Break Out Wrench: Hydraulic operated break out wrench for breaking drill rods, Compressor Option: Diesel power air screw compressor for drilling 650200 ,600200 and 540185.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
"PRD" founded in 1972, under the leadership of Mr.T.P.Thangaraj, chairman - PRD groups, is a leading manufacturer of drilling and mining equipments based in india. One of the largest manufacturers and exporters of drilling rigs for mining, geotechnical exploration, construction and water well drilling. PRD expanded its manufacturing activities with innovative products like tractor mounted piling rigs , pilot hole rigs for granite and marble segments, state of the art compact crawler mounted PRD spider 1000 drilling rig for water well drilling, rigs for underground production drilling and blast hole rigs for mining, which are all well received in the respective market segments. With the introduction of the new machines for various applications, the company experienced steady growth and quickly became a major player within the drilling industry. In a world of product-oriented companies that believe to give the best value with mass-productions strategies, PRD RIGS INDIA still remains a customer-oriented company ready to solve any technical challenge proposed by clients with specific requirements. Engrained in prd, is the goal to provide its customers with products of the highest quality and exemplary customer service, something that has never changed.
