Standard equipment's operating conditions 25°C / 60%RH   30°C / 65%RH   40°C / 75%RH   30°C / 75%RH Standard equipment's operating conditions 25°C / 40%RH   30°C / 35%RH   40°C / 25%RH   Panel Construction Tongue and groove type PUF insulated sandwich panel with cam lock. The Equipment interior is constructed with stainless steel 304 grade finish-4 and exterior is constructed with pre coated GI sheet/ stainless steel 304 grade finish-4. Tray and Rack Duly electro polished stainless steel wire mesh tray and heavy duty square pipe rack with adjustable tray location. Door Heavy duty toughened double glass door installed with imported hinges and lock for easy operation. Backup System Equipment is installed with PLC based auto change over backup system for Refrigeration system and Steam Generator system. PLC based control system Advanced PLC program with built-in Auto-Tuning, PLC Processor based computing and Interactive Easy-to-Use HMI. Documentation • Equipment : DQ, IQ, OQ with PLC Validation, PQ-Conforming to ISPE recommendations, User Manual • Software : IQ, OQ, User Manual

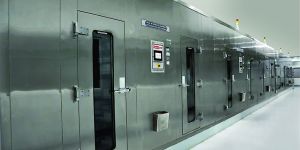

• Controlling system- PLC • Communication via Ethernet • PLC based auto tune facility • User based Alphanumeric password protection through HMI • Stand-alone - 4.3” HMI with TFT LCD Colour touch screen • Walk-in Chamber - 7” HMI with TFT LCD Colour touch screen • PLC Based Safety cut off • Rotronic make 4 to 20 mA sensors

Panel Construction Tongue and groove type PUF insulated sandwich panel with cam lock. The Equipment interior is constructed with stainless steel 304 grade finish-4 and exterior is constructed with pre coated GI sheet/ stainless steel 304 grade finish-4. Construction Double wall inner tank and outer body is dynamically designed from strength and working point of view. The Equipment interior is constructed with stainless steel 304 grade mirror finish and exterior is constructed with powder coated GI sheet/ stainless steel 304 grade finish-4. Tray Stainless steel perforated tray with intervals of ½" height adjustment for better sample storage. Door Heavy duty outer insulated door installed with imported hinges and lock for easy operation and inner glass door with latch to observe samples without disturbing the set condition. UV & Florescent lights • As per ICH Guidelines-1.2 Million Lux/Hours of visible light and 200 watt Hr/m2 of UV light. Auto shut Off after specified exposure level. • Individual PLC based timer is provided to switch ON/OFF UV and Florescent lights as required. • UV light is switched off automatically once inner glass door is opened. • Samples can be tested under Fluorescent light or U.V. lights separately as well as combine. PLC based control system • 4.3” HMI with TFT LCD Colour touch screen • Communication via Ethernet • PLC based auto tune facility • PLC Based Safety cut off • User based Alphanumeric password protection through HMI • Rotronic make 4 to 20 mA sensors

Measured with high accuracy data-logger at sample storage area with standard Set Point. Custom built Chambers are available in any dimensions and capacities.

Accuracy : <=+/- 0.5°C
