Electric Pumps Dealers in Ambad, Nashik

we manufacture and supply solenoid actuated electronic dosing pump for repeatable precision dispensing of precise and small volume fluid doses. The solenoid actuated electronic dosing pump is highly used in maintaining the accuracy of ingredient concentration, product efficiency and batch to batch consistency. These solenoid actuated electronic dosing pumps suck in a defined fluid volume with the backstroke of the displacer and press it into the dosing line with the pressure stroke. Our solenoid actuated electronic dosing pumps are controlled by an electronic circuit comprising of professional pcb and electronic components of proven quality. solenoid actuated electronic dosing pump specifications capacity up to 12 lphdischarge pressure up to 10 bar (kg/sq. Cm) stroke speed up to 120 spm material of construction diaphragm: teflon (ptfe) faced hypalon glandless & leakage free diaphragm pumps solenoid driven aided by professional pulser circuitry excellent proportional control with higher turn-down ratio adjustable injection frequency (up to 120 spm) corrosion resistant gfpp housing teflon faced hypalon diaphragm for long lasting serviceliquid ends - polypropylene (pvc/ss316/ptfe—as optional) modular design occupying less foot print and light weight suction lift up to 1.5 mwc steady state accuracy: +/- 3% repeatability: +/- 3%

Motor-driven diaphragm pump  Metering accuracy is almost independent of back pressure Flow rate is linear to stroke length variation Diaphragm is always balanced between the pressure exerted by the hydraulic oil and the liquid to be dosed. Longer diaphragm life Automatic air bleeding from the hydraulic oil ensures better metering accuracy Arrangement of in-built pressure relief valve to protect the pump from pressure exceeding the rated pressure Rupture Indication Arrangement (RIA) is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms.The rupture of any one of the diaphragms can be sensed by pressure sensing device In case of metering pumps to be used in hazardous areas the liquid head can be keptat a remote place from drive side. The head & drive are coupled by hydraulic oil in flexible tube

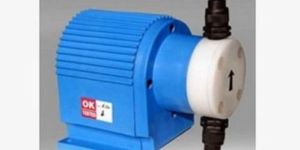

Electronic Dosing Pump, Electronically operated mechanically actuated Diaphragm, Adjustable injection frequency (15 to 100 SPM ), Compact size, light weight, more robust structure, Unique double ball check. NRVs for better dosing accuracy, Solenoid drive with minimum moving parts, 1 MWC max suction lift, Steady state accuracy +- 5% Repeatability +- 5%.

For maximum customer satisfaction, we ensure that the product reaches the customer in the said time slot, owing to our reliable shipping facilities. Our packaging materials can retain the products' quality and newness even under extreme shipping and handling conditions. Our packaging provides optimum physical protection.
