Electronicon System Electric Private Limited Ambad, Nashik, Maharashtra

Immediate compensation of inductive reactive power is very often the only way to cope with disturbances imposed on the mains by huge, rapidly changing inductive loads. The CONDENSOTRONIC thyristor switch module makes reaction times of 1...20 milliseconds possible. The switching is done, practically without reactive effects, at zero voltage level (no voltage between input and output). The CONDENSOTRONIC module has a very compact design, convenient connection, integral overheating protection, and LED indication for the switching signal and excessive temperature.

In combination with the PD-free layout, the self-healing dielectric provides for extremely long operating life and highest operational safety. Unlike traditional oil-filled ALLFILM-capacitors which are bound to fail as soon as overvoltage or other stress factors have provoked a dielectric breakdown, the self-healing dielectric of DSCTM insulates the breakdown spot immediately and continues operation as usual.

The cylindrical capacitors of our universal ACDC series "E62" are perfect for non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors switched in parallel to a thyristor, or connected in series with a resistor (damping of undesirable voltage spikes during the switching of power semiconductors). They can be widely used as supporting, smoothing, and surge discharge capacitors, further in AC filters, a.m.o. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages.

The controller identifies the power of the connected capacitor stages and connects or disconnects them in an optimized manner as required by the actual mains conditions. The regulation considers the frequency of changes in the reactive load and follows the principle of rotational switching. This guarantees that optimum power factor correction is achieved with the minimum number of switching operations.

We are the exporter and supplier of this products.

Brand Name : Electronicon

Country of Origin : upto 560V

Usage : Ultra heavy duty PFC requirements 5 yrs wty

Phase : Three Phase

Total Carbohydrate : 5yrs

Decades of proprietary ELECTRONICON experience in metallizing capacitor films and designing high-end capacitors have created our very own Know-How, for instance in special metallizing patterns, our SINECUT slitting technology and optimized winding geometries. This enables us to design AC capacitors with a high specific ratio of capacitance to volume, high AC-voltage load capacity and outstanding suitability for high rms and surge currents.

The cylindrical capacitors of our universal ACDC series "E62" are perfect for non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors switched in parallel to a thyristor, or connected in series with a resistor (damping of undesirable voltage spikes during the switching of power semiconductors). They can be widely used as supporting, smoothing, and surge discharge capacitors, further in AC filters, a.m.o. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages.

Our capacitors of the E12 and E33 series are universally-suited for lighting and motor applications as well as power factor correction and power electronics. Their winding element of self-healing polypropylene film is immersed in eco-friendly vegetable oil and designed for highest requirements regarding operational life and functional safety even at high operating temperatures and other extreme conditions such as high humidity.

The capacitors of the E61 series are optimized for high rms and surge currents. Along with their high specific ratio of capacitance to volume, they offer long-term stability and storability, as well as excellent self-healing without loss of capacitance.

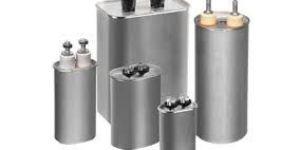

The traditional ALLFILM system of conventional medium and high voltage capacitors consists of aluminium foil and polypropylene, immersed completely in synthetic, flammable oil. Breakdowns in this kind of dielectric tend to result in permanent short circuits which take out the entire capacitor element, change the voltage conditions inside the capacitor and initiate a chain reaction of further failures of capacitor elements which will end up in the loss of the entire capacitor. In three-phase capacitors, this process is usually accompanied by the occurrence of phase asymmetries which may cause damage and catastrophic failure.

Immediate compensation of inductive reactive power is very often the only way to cope with disturbances imposed on the mains by huge, rapidly changing inductive loads. The CONDENSOTRONIC thyristor switch module makes reaction times of 1...20 milliseconds possible. The switching is done, practically without reactive effects, at zero voltage level (no voltage between input and output). The CONDENSOTRONIC module has a very compact design, convenient connection, integral overheating protection, and LED indication for the switching signal and excessive temperature.

We are the leading manufacturers, exporters and supplier of this products.

Brand Name : Electronicon

Country of Origin : 440,80,525,690,760,800

Capacitor Type : MPP Heavy Duty

Phase : 3ph Delta

Total Carbohydrate : 3yrs

The controller identifies the power of the connected capacitor stages and connects or disconnects them in an optimized manner as required by the actual mains conditions. The regulation considers the frequency of changes in the reactive load and follows the principle of rotational switching. This guarantees that optimum power factor correction is achieved with the minimum number of switching operations.

Thanks to their construction, they have a very low series resistance and a small self-inductance. Our basic design principle - preferring short winding elements with comparably large diameters - as well as the use of wavecut technology in many models, serves for high rms and surge current strength.

A consumer whose load includes a high proportion of variable speed motor drives andor other harmonic generating loads may require a detuned capacitor system. This would perform the function of power factor improvement whilst preventing any amplification of harmonic currents and voltages caused by resonance between capacitors and inductances in the mains.

Decades of proprietary ELECTRONICON experience in metallizing capacitor films and designing high-end capacitors have created our very own Know-How, for instance in special metallizing patterns, our SINECUT slitting technology and optimized winding geometries. This enables us to design AC capacitors with a high specific ratio of capacitance to volume, high AC-voltage load capacity and outstanding suitability for high rms and surge currents.

Decades of proprietary ELECTRONICON experience in metallizing capacitor films and designing high-end capacitors have created our very own Know-How, for instance in special metallizing patterns, our SINECUT slitting technology and optimized winding geometries. This enables us to design AC capacitors with a high specific ratio of capacitance to volume, high AC-voltage load capacity and outstanding suitability for high rms and surge currents.

Our E06 capacitors, classified acc. to EN61048 as type A components, are housed in aluminium cans, without any special liquid or gas filling. Connection is made through a convenient push wire terminal which includes the discharge resistor.

The cylindrical capacitors of our universal ACDC series "E62" are perfect for non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors switched in parallel to a thyristor, or connected in series with a resistor (damping of undesirable voltage spikes during the switching of power semiconductors). They can be widely used as supporting, smoothing, and surge discharge capacitors, further in AC filters, a.m.o. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages.
