EMET Controls Private Limited Satpur, Nashik, Maharashtra

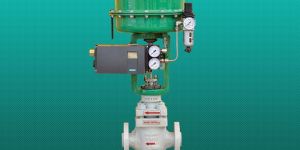

EMET Controls Range of Top & Bottom Guided Globe Control Valve is compact & simple in Construction. Our Series 15000 & Series 11000 having Top Guiding construction covers, sizes from ½" to 12" with trim options as Contour, Micro Spline & Multi Spline, Our Contour trim, is most suitable for low pressure drop applications. Also, Micro Spline trim is the most ideal choice not only for handling very low flow rates but also for handling high pressure drop and where the potential for cavitation is more.

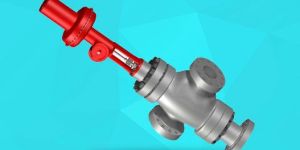

In order to divide the flow in two directions and to mix the two fluids in one direction, our series 14000 and 14100 are suitable, respectively. Seating options are available, both inside and outside. There is also the provision of a balanced plug design for very high differential pressure shut off.

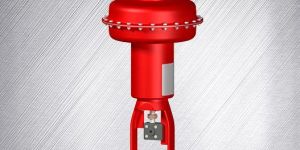

'EMET S1'- Series spring diaphragm actuators are available in 7 sizes, i.e., 100, 250, 350, 500,700, 1000 & 2000cm2. If required these actuators can be provided with side mounted & Top mounted handwheel. These actuators are suitable for regulating and on/off control applications and can be used against aggressive environments with appropriate surface protection.

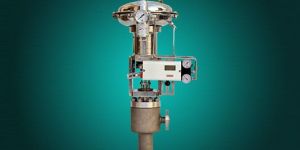

Velocity Control Trim (Velo Trol) - In most of the severe service conditions where very High temperature & High pressure are to be handled our series 12200 & 12250 with Velocity control trim (VeloTRol) is the most suitable trim available to provide accurate control with long life & thereby reducing the Noise/Vibrations formed due to cavitation or erosion damage. Series 12200 High Pressure Control Valve is designed and developed for applications where the high pressure/drop liquid and high pressure/temperature gas/vapour to be handled. Our VeloTRol, a multi-turn/multi-stage velocity control trim, handles these severe/critical applications very effectively - eliminating cavitation & vibration, and reducing the noise to the acceptable levels. Series 12250 is developed for low/minute flow (Micro Cv) for high pressure drop liquid and gas applications. The velocity control trim (Velotrol), the most superior trim, has enabled control valve to improve its performance and lower its maintenance cost. Also, there is hardly any use of additional silences/Diffusers for noise reduction.

Series 50000/51000 V-Notched ball valves are designed for on/off and throttling applications. These valves have an unrestricted straight through flow design, and provide high capacity for gas, steam, fibrous slurries, or liquids. Our Series is designed with a splined shaft valve body that matches with a variety of actuators to form a dependable high performance control valve ideal for many applications in various processing industries. These valves are designed to overcome the problems of harsh, particle entrained processes, and they also provide accurate, reliable control in a broad range of applications, such as chemical, power and petroleum.   Key Features Excellent shearing action in fibrous fluid mediums Exceeds 300:1 range ability Excellent Flow Control High Capacity Low/Noise Anti-Cavitation Ball Option available. Unrestricted straight through flow design provides a greater capacity Precision machined parts and seal designs allow smooth, precise movement of the ball

Steam PRDS is used for Steam Conditioning Services for the reduction of pressure and temperature of steam. It is a combination of Control Valve for the pressure reduction purpose and atomizing nozzles through which water is sprayed into steam for reducing the temperature. PRDS can be of two types 1. Combined PRDS Both PRV and Desuperheater in a compact single unit 2. Split PRDS Separate PRV and Desuperheater

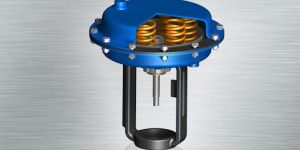

M'- series Multi spring diaphragm actuators are available in 5 sizes, i.e. 100, 250, 350, 700 & 1400 cm2. If required these actuators can be provided with top mounted handwheel. These actuators are suitable for regulating and on/off control applications. Full stainless steel version is also optionally available.

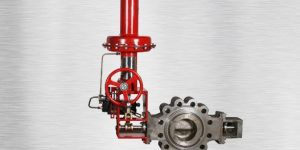

Series 41000 Double Eccentric/Offset, Elastomer Seal Butterfly Valve is designed & developed for application where 100% shut off (Class VI) is required in closed position on liquid or gases and where control of flow through the pipeline is required.100% shut off is achieved by using elastomer seals; can be used on temperature ranging from -50°C to +200°C with the correct selection of materials.   Key Features Full range of body & disc material options Elastomer Seal Seat Design ANSI/FCI 70-2Class VI leakage rate Equal Percentage Inherent Characteristics Low Weight Low Maintenance Quality Manufacturing: Quality Assurance System in accordance with ISO 9001:2008 NACE MR0175 Compliance Excellent flow control range ability

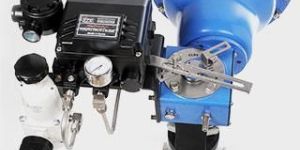

Series 55000 Eccentric Plug Rotary Control Valves are designed for on/off and throttling applications. The plug is offset to the shaft centerline. This allows the plug to break free of the seat ring immediately upon initial rotation of the shaft. Since there is no sliding contact between the plug and seat ring throughout travel, seat ring life and shutoff integrity are greatly enhanced. These valves are designed to overcome the problems of harsh, high velocity and high temperature processes, and they also provide accurate, reliable control in a broad range of applications, such as high and low pressure steam, clean/dirty corrosive liquids & gases, erosive and abrasive slurries etc.

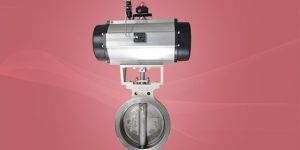

Series 44100 Butterfly Valve is designed and developed to use in process engineering and industrial application where 100% shut off (Class VI) is required in the closed position.100% shut off is achieved by the use of PTFE seal.   Key Features Eccentric disc design Uninterrupted 360° contact Excellent flow control range ability Disc design for minimum dynamic torque ANSI/FCI 70-2 Class IV leakage rate PTFE seal Equal percentage Inherent flow characteristic Low Noise Anti-cavitation trim Low weight NACE MR0175 compliance Low maintenance

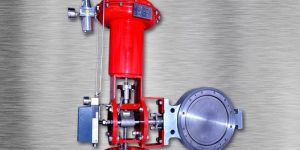

Series 44000/44500/46000 Butterfly Valve is designed and developed to use in process engineering and industrial application where only a small leakage (Class IV) is allowed in the closed position or where an elevated temperature or an arduous service means a soft seal is not practical.

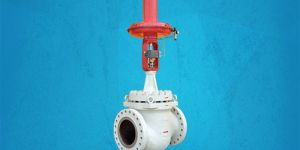

Control cage, We have range of trim options like single, double, triple & multistage having concentric cages with holes. This can be used to handle high pressure drop flow in order to eliminate the erosion damage due to cavitation and noise vibrations inside the valve.

EMET 'Step-Vane' and 'Swing-Through-Vane' Butterfly Control Valves have been designed and developed for applications where leakage in the closed position is not the problem, but the control of the amount of liquid or gas through the pipe line is paramount. These valves provide excellent throttling performance. Series 40500 and 40600 Butterfly Control Valves (with Anti-Cavitation/Low Noise Trim) have been designed and developed by EMET Controls to use in process engineering and industrial applications where the effect of cavitation (due to high liquid pressure drop) cannot be eliminated/handled by Series 40000 and 40100 Butterfly Control Valves.

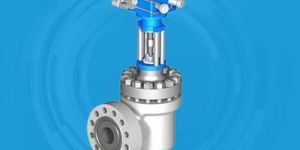

Choke Valves offers unique solution for various choke applications & are used for control of high pressure well fluids/solids. Our series 98000 meets the requirements of choke applications in oil production, gas injection, and sea water injection applications where pressure drops up to 400-500 bar are common. Our design incorporates various trim design from standard to Multi Stage trims which are manufactured from tungsten carbide or ceramic materials for better erosion resistance. Our choke valves designed & manufactured as per ASME B16.34 / API 6A standards, meet the requirement for Product specification levels (PSL 1, 2, 3 & 4) temperature & ratings. Our range of choke valves is available with both screwed seat design & Quick change trim (Clamped design) options. If required valves can be manufactured with NACE compliance.

Our Series 12000 / 15200 is designed and developed for power duty applications where the high pressure / drop water and high pressure / temperature steam are to be handled. We have range of trim options like single, double, triple & multistage having concentric cages with holes. This can be used to handle high pressure drop flow in order to eliminate the erosion damage due to cavitation and noise / vibrations inside the valve.
