Profile Cutting Machine Dealers in Nashik (5 products available)

We are offering cnc oxyfuel, plasma profile cutting machines etc. Our greatest strength is our ability to adapt our standard equipment to fully satisfy your particular application. general features •dual drives on long axis: •customised bed size: band sizes available from 1.5m x 6.3m to 3m x 12m which is customisable as per customers requirement. •industrial grade arm chip plc controller: •dual drive ac servo: high quality schiender / panasonic servo drives with encoder feedback. •high precision planetary gearboxes: high ratio reduction gearboxes provide excellent smoothness and resolution •precision rack and pinion drives on x & y axis (gudel or similar) •flexible cable carriers on both x & y axis •multi torch options: add upto 10 oxyfuel torches for higher productivity. •50mm, 100mm, 150mm,300mm cut capacity: we supply torch with nozzle sets (nm type torch) which will cut upto 300mm ms. •auto ignition system: automatically lights up the oxy fuel torch •auto cycle:: automatic ignition, preheat and cut cycles. •smooth ball screw driven z axis •capacitive torch height controller for oxyfuel torch •arc voltage automatic torch height controller for plasma torch to maintain precise distance between plasma torch and work plate. controller features industrial grade arm chip plc controller standard shape library corner speed control wireless remote control (optional pendant) break point resume, auto power break resume, break point memorythick plate outside edge pierce and thin plate cross-bridge function built in kerf compensation function 256mb program storange usb port connection for program transfer automatic nesting (basic nesting can be performed on the controller itself) pc based mach3 controller option also available with touch screen monitor and wireless remote pendant.

width : 1,500 mm

length : 1500mm , 3000, 4500mm, 6000mm

accuracy : ± 0.5 mm

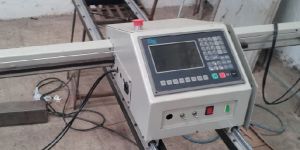

Portable CNC Profile cutting machine is an economical portable light weight CNC cutting machine to cut complex shapes of high quality with Oxy-fuel and Plasma cutting. The machine can be programmed to cut any plane shape parts composed of beeline and arc, which are same as large gantry cutting machines. It is equipped with a 7 inch LCD with dynamic and static graphical display.It can be programmed to cut parts directly, and also can be operated by using GCode generated by CAM program (Nesting software), and then be transfered to the machine via its USB Port. The CNC Controller on the machine has Memory capacity is more than 3000 files.

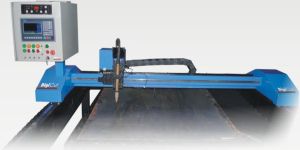

We manufacture a wide range of standard and special purpose fixed cnc oxyfuel profile cutting machines. Our greatest strength is our ability to adapt our standard equipment to fully satisfy your particular application. These machines are also upgradable to plasma cutting machines.

Economical Gantry CNC Plasma Profile Cutting Machine
