quadrantmeasurements Nashik Road, Maharashtra

Offers semi automatic capacitance. Features high resolution for tan delta measurements 0.00001 (10 )-5 suitable for external power source and standard capacitor easy to use safety protections incorporated test voltage 0 to 12kv ac rated current 100ma continuous output frequency 50hz (lines frequency) accuracies applicable cx 100pf switch for three different types measurement seven three mode test operation 1. Ust- ungrounded specimen test. 2. Gst - grounded specimen test. 3. Gstg - grounded specimen test with guard. Indication : 3 ½ digital panel meter for voltage & current. Standard capacitor :100pf, 12kv built-in. Input voltage : 230vac + 10%, single phase, 50hz. Safety features : zero start control. Open ground indicating lamp with double ground connection. External interlock ht cut off on overload. Ht on and supply on indication. All operating controls at earth potential. Necessary terminals & sockets for connection to bridge.

Certification : NABL

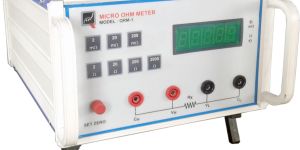

We are offering resistance meter. Features true four terminal measurement regulated and highly stable 1 amp current source 4 ½ digital led display 0.1uohm resolution on 2mohm range protection against back emf for high inductive loads stable and fast measurement download via rs-232 usb port with software (optional) technical specifications range : 0.1uohm - 1999.9ohm accuracy : +0.05% of reading + 5 digit display : 4 ½ digit led display power supply : 230v ac, 50hz, 1 phase standard accessories one set of test leads (1meters) with crocodile clips mains cord user manual kelvin clip test leads (optional)

We offer Micro Ohm Meter. Features True Four Terminal Measurement Regulated and Highly stable 1 Amp Current Source 3 ½ Digital LED Display 1uOhm resolution on 2000 uOhm range Stable and fast measurement Technical Specifications Range : 1 uOhm - 19.99 KOhm Accuracy : +0.5% of reading Display : 3 ½ Digit LED Display Power Supply : 230V AC, 50Hz, 1 Phase Standard Accessories One set of Test leads (1 meters) with Crocodile clips Mains Cord User Manual

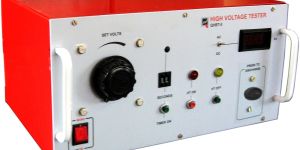

We are offering high voltage ac tester. Features suitable for ac dc breakdown digital voltage current display zero start, over load tripping protection built-in timer robust design, easy to operate technical specifications test voltage : 5kv acdc short circuit current : 3050100ma accuracy : +1.5% of reading + 1 digit resolution : 0.01kv display : 3 ½ digit led display timer : 0-99 sec. Protection : zero start, over load tripping power supply : 230vac + 10%, 50hz

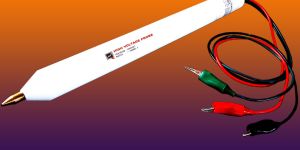

We are offering high voltage probes. Features suitable for acdc both voltages high accuracy high insulation teflon rod model technical specification voltage : 40kv max(acdc) 1kv to 40kv dc or peak ac, 28 kv rms ac ratio : 10000 : 1 accuracy : +2% up to 25kv +4% above 25kv

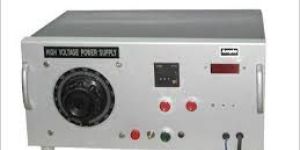

Suitable for both AC and DC volt breakdown Digital Voltage Current Display Zero Start, Over Load Tripping Protection Built-in timer Robust design, easy to operate Insulation, Cables, Transformers etc Industries Electricity Distribution substations Component Manufacturers Panel Manufacturers Electrical test Calibration Labs

Specially designed for Power Capacitors Suitable for induced residual voltage across test object HTLT Power Capacitor Industry Transmission, Distribution Cell of State Electricity Boards Component Manufacturers Panel Manufacturers Electrical test Calibration Labsget discharge when connected to meter. Direct Digital Reading High quality Performance at low cost. Robust design, easy to operate

We are offering measurement instruments, high voltage power supply with capacitance and tan delta test set.
