Type of Test: Non destructive  Purpose: Radial Load Vs Deflection Prime Mover: Compressed Air  Brief Specifications: Maximum Load capacity- 1500kg Digital display of load and deflection under specific load  Options: Data Acquisition System and PC software

We are offering two station face de flashing machine.

Type of Test: Destructive  Purpose: Understand behaviour of component under Radial load with Torsional motion in cyclic pattern Prime Mover: AC Induction Motor  Brief Specifications: 3HP AC Induction Motor and VFD with slider crank Mechanism to generate torsional motion with Radial loading of 500Kg through Screw and Nut  Options: Digital display of Load    View Video for Torsion Endurance Testing Machine

Particularly for the rubber-metal bonded bushes it is necessary to enhance the strength by pre-stressing, which is called swaging .Summit have developed hydraulic operated Swaging Machine to accommodate bushes up to diameter 75 mm.

Type of Test: Destructive Purpose:Understand behaviour of component under Radial load with constant or variable displacement/ motion in cyclic pattern Prime Mover: Servo Hydraulic Power Pack  Brief Specifications: 15 HP AC Induction Motor and Servo Hydraulic Power pack System with Two Pillar structure with micro controlled system to generate sinusoidal, Trapezoidal and square wave motion.

Type of Test: Destructive Purpose: Understand behaviour of component under Radial load with constant displacement/ motion in cyclic pattern Prime Mover: AC Induction Motor and hydraulic  Brief Specifications: 5 HP AC Induction Motor and VFD with slider crank Mechanism to generate sinusoidal motion with Radial loading of 1500Kg through Hydraulic system  Options: Heating Chamber

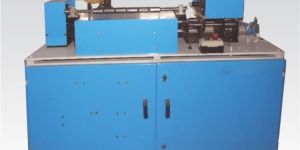

 Flash removal from outer of the bushings.  Multiple numbers of components can be cleaned at a time.(Max. cleaning length-450mm)  Accommodates variety of components from diameter 10 mm to 100 mm by changing rods.  Rod acts as gauge for ID bush.  Cross slide with one grinding spindle.  Localized and effective flash extraction canopy.  Cycle time- Approx @ 20 sec for 450 mm length

We are offering id de-flashing machine.

Type of Test: Non destructive  Purpose: Radial Load Vs Deflection  Prime Mover:Compressed Air Brief Specifications: Maximum Load capacity- 1500kg Digital display of load and deflection under specific load  Options: Data Acquisition System and PC software

Simple, compact single station system to cut the extra flash from components outer face.  Quick operation for flash removal.  Quick changing fixtures to accommodate different components.  Can accommodate job from diameter 10 mm to 100 mm.  Cycle Time < 5 sec.

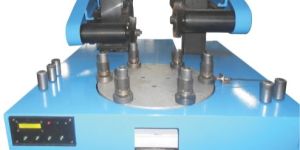

First station for deflashing of inner face and Second station for deflashing of outer face.  Highly dynamic indexing table for quick loading, consisting of 6 nos of job holding fixtures.  Quick changing fixtures to accommodate different sizes of components.  Simultaneous fast and effective deflashing of inner face and outer face.  Effective flash extraction.  Cycle Time < 5 sec.

Type of Test:Destructive  Purpose: Understand behaviour of component under Radial load with conical motion in cyclic pattern  Prime Mover: AC Induction Motor  Brief Specifications: 3HP AC Induction Motor and VFD with Cam Mechanism to generate conical motion with Radial loading of 500Kg through Screw and Nut  Options: Digital display of Load    View Video for Conical Endurance Testing Machine

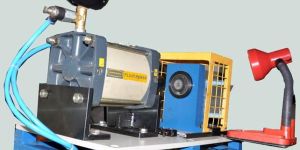

We are offering bond testing machine.

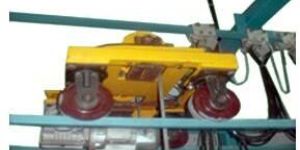

In order to automate your existing substrate cleaning and Phosphating operation, summit can support you two types of transporters, Overhead Transporter and Ground Handling Transporter.

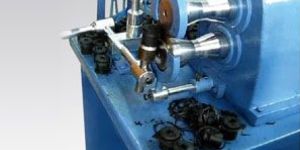

During moulding rubber flash occupies the threads of components having internal threads. It then becomes very tedious to remove the flash. These machines basically perform de-flashing by controlled re-tapping Operator dependency is removed and consistency in the required quality is achieved with these machines.

Flash is the excess rubber material left on a rubber part or component after molding. Flash is the result of the rubber material or compound migrating through the mold surface finish and mating surfaces. It can be removed by tear trimming, cryogenic deflashing, tumbling, and other post molding operations. It is a common feature that every metal to rubber component has flash after molding. And it is labors, accident prone to the operator and time consuming activity. Summit has developed special machines for ID/OD cleaning by taking in to considerations your required volumes!  Two station pneumatically operated system.ID Deflashing Machine:    Cleans ID thoroughly.  Quick and effective operation.  Quick changing fixtures to accommodate different components  Adjustable stroke depending upon length of the job.  Adjustable cleaning stroke depending upon inside flash thickness.  Can accommodate job from diameter 10 mm to 100 mm.  Cycle Time < 5 sec.

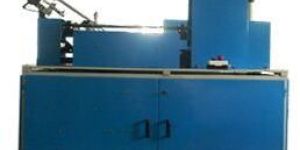

Application of adhesive chemicals on the “Metal Substrates” before molding rubber has been one of the trickiest issues for “Metal ToRubber Bonding” industry. There have been various issues related to this activity, Manual labour: Inconsistent quality & Low Productivity. High labour attrition due to environmental issues. Limited productivity and labour issues hindering growth. Very expensive imported machines impacting bottomlines.   Our Breakthrough Solutions We at Summit Engineers & Consultants Ltd, have developed & patented automated machines for spraying primer & adhesive onto the metal components, either inside or outside surface, to the required specifications. The machines are capable of handling different sizes and shapes of the metal components & are being used for last 8 years by many companies in this industry such as Innova Rubbers, Nashik, Varroc Elastomers, Aurangabad, Suyog Rubbers, Nashik, And many smaller ones. These machines have only improved over the tim

We are offering adhesive chemlok spraying machine.
